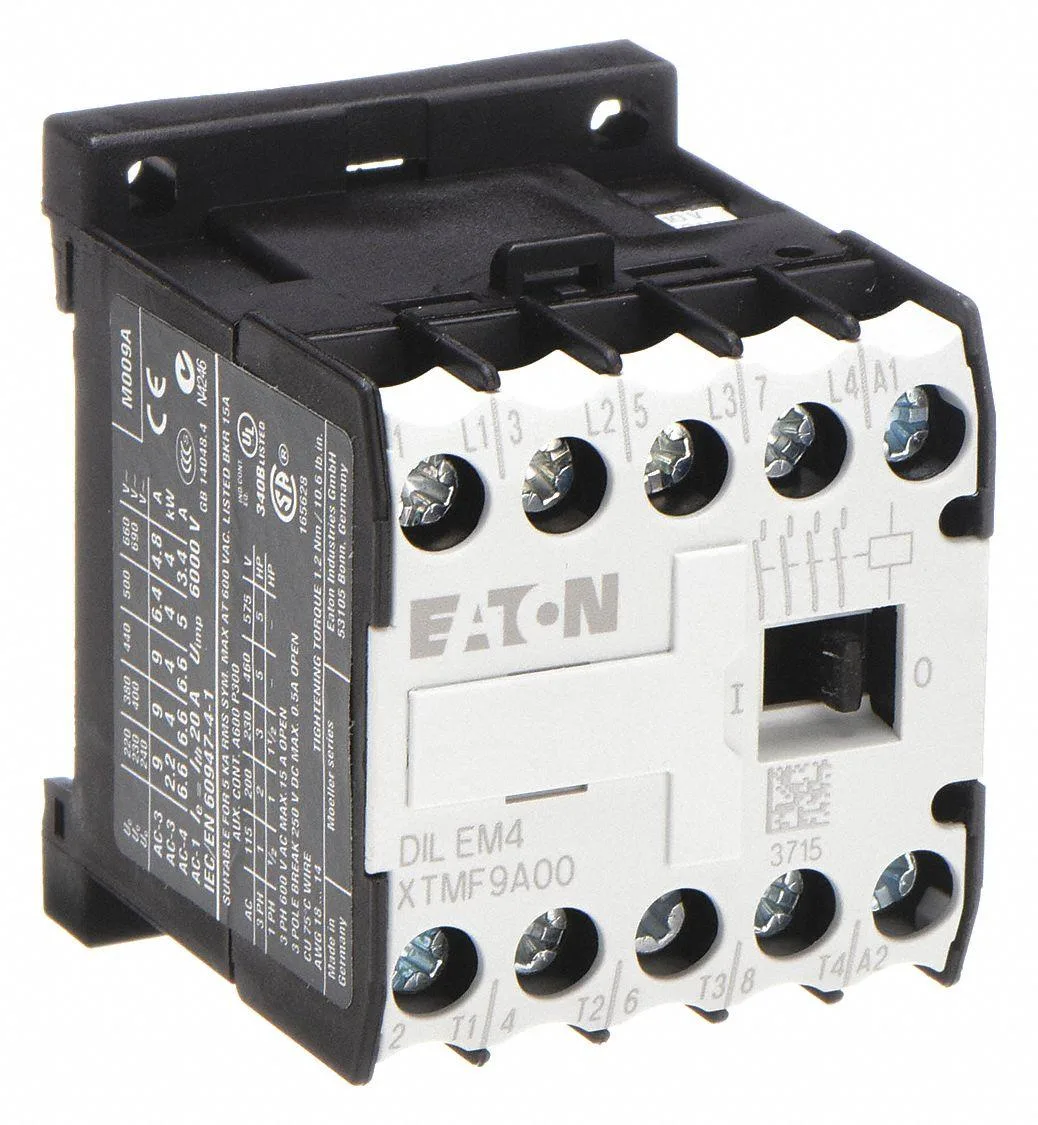

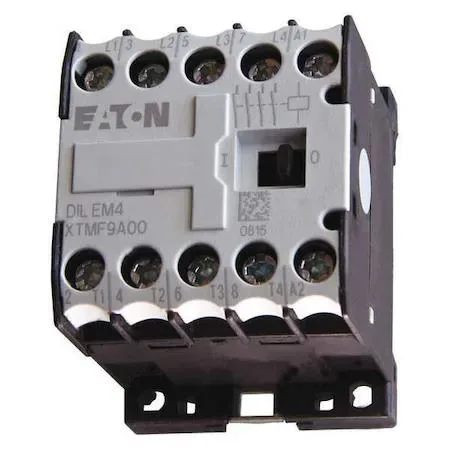

Small transparent IEC contactor, 4-pole, DIN-rail mount, screw terminals

Eaton

Eaton XTMF9A00T 4-Pole 24V AC 9A Magnetic Contactor

SKU CH-HTKJ-F9WEX

Miniature IEC magnetic contactor with 4 poles, 24 V AC coil, 9 A inductive and 20 A resistive ratings, screw terminals, DIN-rail or panel mounting

  • TypeIndustrial Electrical Controls & Automation
  • ColorTransparent
  • 4-pole design enables full three-phase motor control
  • 24 V AC coil voltage matches standard control circuits
  • 9 A inductive rating handles typical motor loads
  • 20 A resistive rating supports heating and lighting circuits
  • DIN rail and panel mounting simplifies installation

Eaton XTMF9A00T 4-Pole Contactor

The Eaton XTMF9A00T is a miniature IEC magnetic contactor designed for industrial electrical control and automation tasks. It features a 24V AC coil voltage and four poles rated for 9 A inductive and 20 A resistive full load current. The unit mounts on DIN rail or panel and uses screw terminals for secure wiring connections. This new component suits engineers building or maintaining control panels and motor starter circuits.

Suitable Applications and Limitations

This contactor suits applications requiring a non-reversing, four-pole switch with a compact 2 in by 2.5 in footprint. It is not for buyers who need integrated auxiliary contacts, as the specification lists zero auxiliary contacts and none are included. It also does not suit systems requiring a NEMA-rated enclosure, because the device carries no enclosure rating. Builders needing reversing capability or built-in auxiliary switching should look at other models.

Deciding Specification

The coil voltage of 24V AC is the critical parameter that determines compatibility with your control circuit. Verify that your control supply matches this exact voltage before purchase. The 9 A inductive current rating defines the maximum motor or inductive load the contactor can switch reliably. Selecting a contactor with an incorrect coil voltage or insufficient current rating will result in failure to operate or premature wear.

Highlights

  • 4-pole design enables full three-phase motor control
  • 24 V AC coil voltage matches standard control circuits
  • 9 A inductive rating handles typical motor loads
  • 20 A resistive rating supports heating and lighting circuits
  • DIN rail and panel mounting simplifies installation

Specifications

BrandEaton
ModelXTMF9A00T
TypeIndustrial Electrical Controls & Automation
ColorTransparent

Questions about this item

How can I confirm the contactor is operating correctly after wiring it to a 24V AC coil supply?

Apply 24V AC to the coil terminals and verify the main power contacts close; the 4-pole design should switch all four circuits simultaneously with an audible click.

What accessories are included and which must be purchased separately for a DIN rail installation?

The unit ships with screw terminals for wiring; auxiliary contacts are not included and must be ordered separately if additional control circuits are required.

Should I choose the 9 A inductive or 20 A resistive rating for my motor load?

Select based on load type: the 9 A inductive rating applies to motor or transformer loads, while the 20 A resistive rating covers heating elements and similar non-inductive circuits.
