Transparent IEC miniature magnetic contactor with screw terminals

Eaton

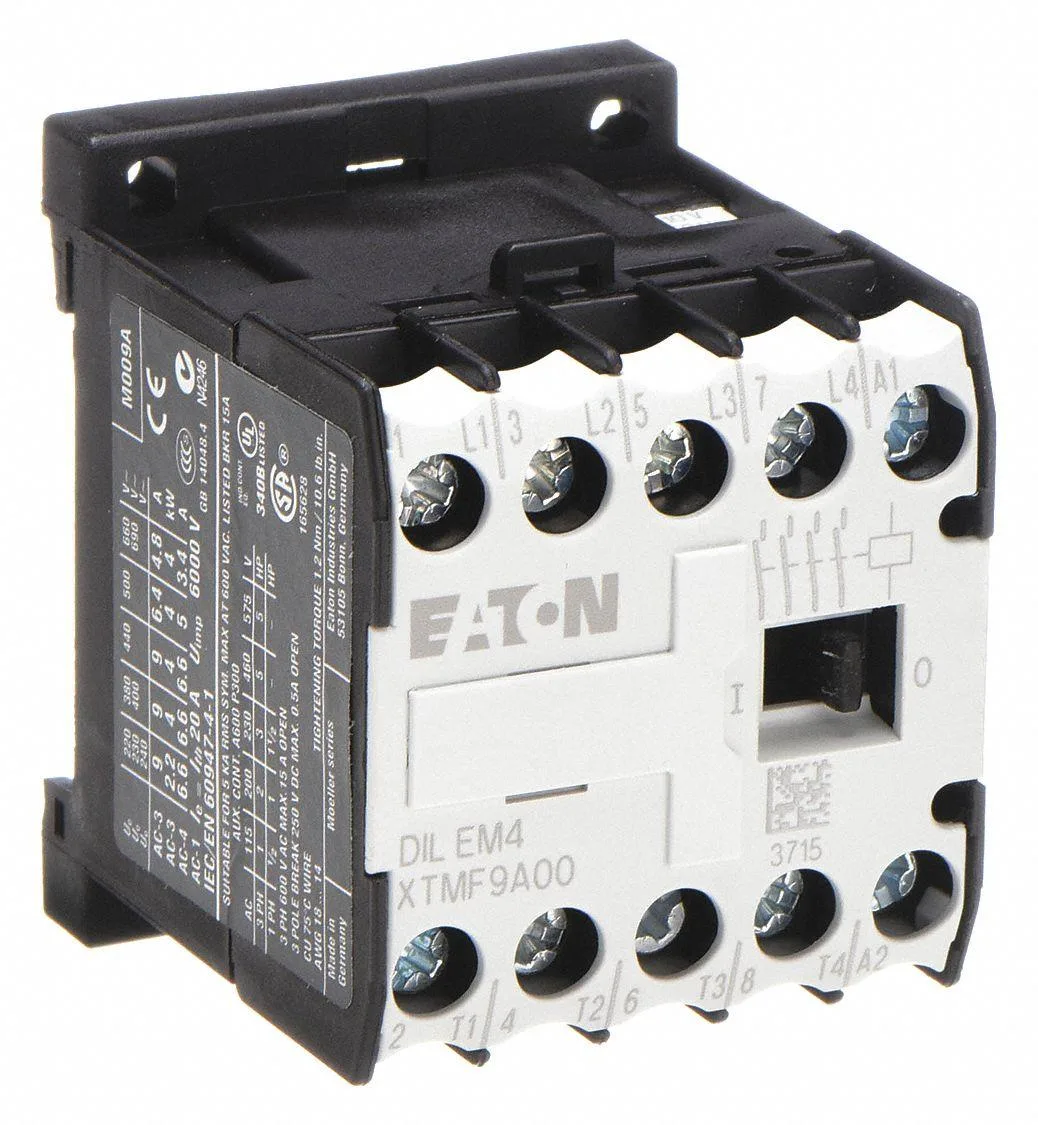

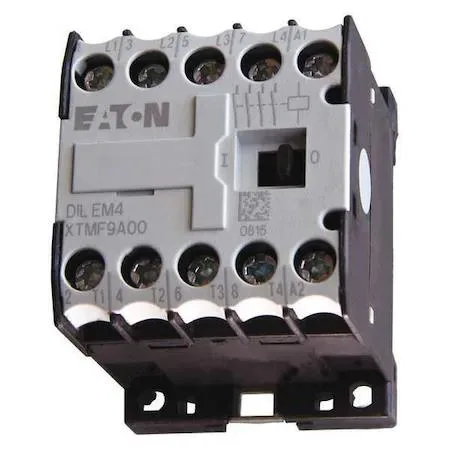

Eaton XTMF9A00A IEC Miniature Magnetic Contactor 120V 8.80A

SKU CH-K4SX-4M93F

Non-reversing IEC miniature magnetic contactor rated 8.80 A at 120 V AC, 50-60 Hz, UL Listed, CSA Certified, CE Marked, IP20, screw-terminal DIN-rail or panel mount

  • TypeIndustrial Electrical Controls & Automation
  • ColorTransparent
  • Non-reversing full-voltage operation simplifies motor control
  • 120 V AC coil voltage matches standard control circuits
  • 80 A amperage rating supports defined load requirements
  • UL Listed, CSA Certified, CE Marked, IEC 60947 compliant
  • IP20 rating protects against solid object ingress

IEC Miniature Magnetic Contactor

The Eaton XTMF9A00A is a non-reversing IEC miniature magnetic contactor designed for industrial electrical control and automation. It operates on a 120V AC coil voltage with a 50-60 Hz frequency rating and carries an 8.80A amperage rating for full voltage applications.

8.80A Amperage Rating

The single specification that determines suitability is the 8.80A amperage rating combined with the 120V AC coil voltage. Buyers must match these electrical parameters exactly to their circuit requirements; this contactor will not meet the needs of systems requiring higher current capacity or different coil voltages.

No Auxiliary Contacts

The unit ships with no auxiliary contacts included, meaning additional control circuit switching must be sourced separately. It features screw terminals for secure wiring and supports vertical mounting on DIN Rail or Panel within its Frame A size, while UL Listed, CSA Certified and CE Marked compliance confirms adherence to IEC 60947 and EN 60947 standards.

Highlights

  • Non-reversing full-voltage operation simplifies motor control
  • 120 V AC coil voltage matches standard control circuits
  • 80 A amperage rating supports defined load requirements
  • UL Listed, CSA Certified, CE Marked, IEC 60947 compliant
  • IP20 rating protects against solid object ingress

Specifications

BrandEaton
TypeIndustrial Electrical Controls & Automation
ColorTransparent

Questions about this item

What does the 8.80 A rating mean for a circuit I am designing?

It is the maximum continuous current the contactor can switch at its rated voltage without exceeding temperature limits.

How does the IEC 60947 standard affect the way I use this contactor?

The standard defines the testing and performance criteria, so the 8.80 A rating and 120 V coil voltage are verified under those conditions.

What mounting options does the Frame A size provide?

The contactor can be mounted vertically on a DIN rail or directly on a panel using screw terminals for secure attachment.
