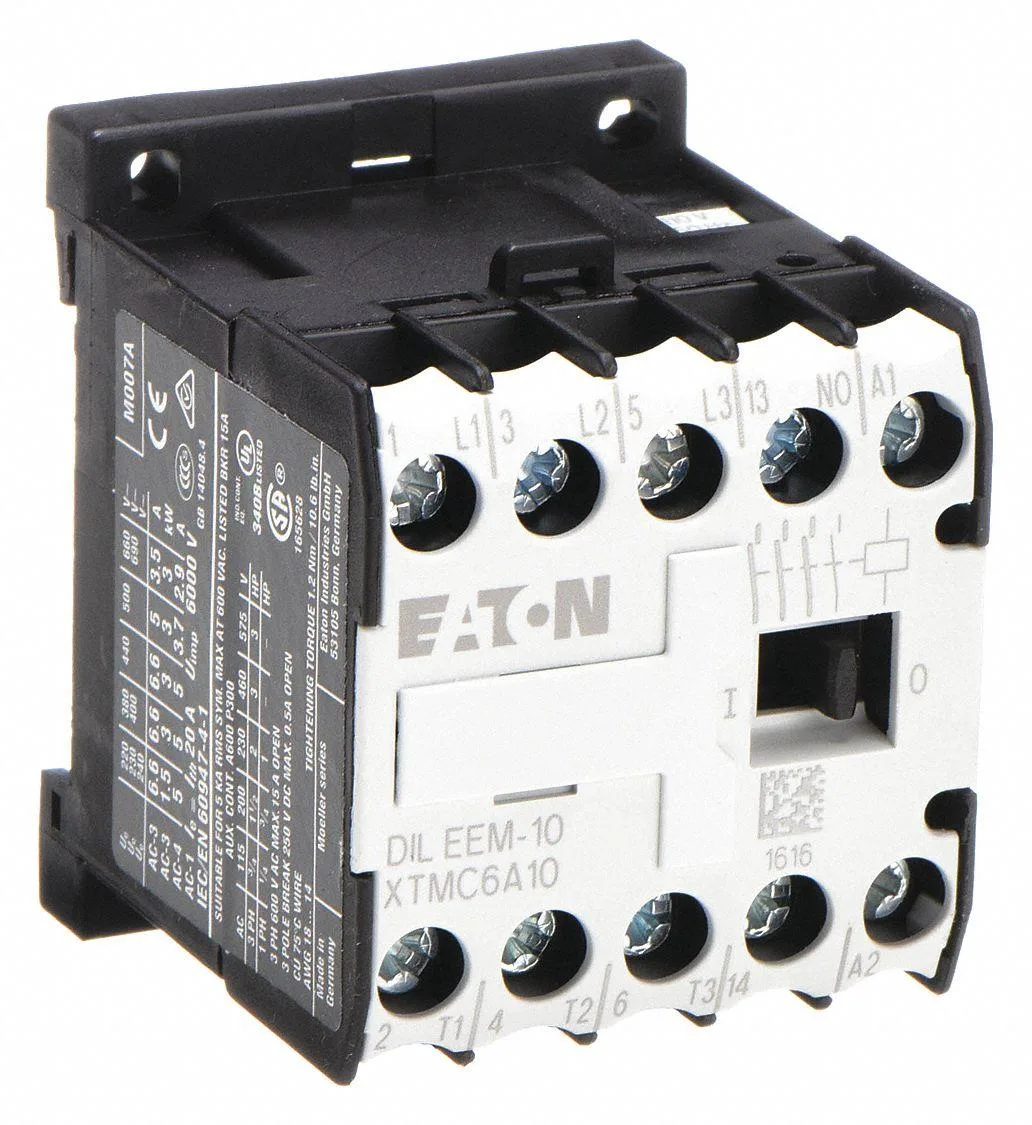

Small transparent IEC contactor with screw terminals and DIN rail mount

Eaton

Eaton XTMC6A10A Miniature Magnetic Contactor 1NO 120V AC 3P

SKU CH-Q47K-TPHQ8

Miniature IEC magnetic contactor with 1NO auxiliary contact, 120 V AC coil and 3 poles for DIN-rail or panel mounting

  • TypeIndustrial Electrical Controls & Automation
  • ColorTransparent
  • IEC miniature contactor fits tight panels at 2.5 in wide
  • 120 V AC coil integrates with standard control circuits
  • 6 A inductive rating handles motor loads reliably
  • 1 NO auxiliary contact provides status feedback easily
  • DIN rail or panel mounting simplifies installation fast

Compact IEC Contactor for Motor Control

The Eaton XTMC6A10A is a miniature magnetic contactor designed for switching three-phase loads in industrial automation panels. It carries a 6 A inductive and 20 A resistive rating with a 120 V AC coil and one normally-open auxiliary contact. The unit mounts on DIN rail or panel and uses screw terminals for wiring. It suits panel builders and maintenance teams fitting or replacing IEC-style starters in tight enclosures.

Upgrade from Larger Frame Contactors

This frame-size-A contactor replaces bulkier IEC contactors when panel space is limited and the load stays within 6 A inductive or 20 A resistive. The jump is worth it when a non-reversing starter must fit a 2.5 in by 2.5 in footprint without sacrificing screw-terminal access. It does not serve applications that need reversing capability or higher current ratings than the listed values.

Verify Coil Voltage and Mounting Before Order

Confirm the control circuit supplies 110/120 V AC to match the coil rating. Check that the enclosure can accommodate the 2.5 in height and width and that DIN rail or panel mounting points are available. Ensure the auxiliary contact configuration of 1NO meets the control logic requirement. The product ships without a NEMA-rated enclosure, so separate protection may be needed.

Highlights

  • IEC miniature contactor fits tight panels at 2.5 in wide
  • 120 V AC coil integrates with standard control circuits
  • 6 A inductive rating handles motor loads reliably
  • 1 NO auxiliary contact provides status feedback easily
  • DIN rail or panel mounting simplifies installation fast

Specifications

BrandEaton
TypeIndustrial Electrical Controls & Automation
ColorTransparent

Questions about this item

Will the 2.5 in height and 2.5 in width fit my DIN rail panel?

The contactor measures 2.5 in high by 2.5 in wide and mounts on standard DIN rail or directly on a panel using the integral mounting feet.

How do I wire the coil and power terminals, and what mistake should I avoid?

Connect the 110/120V AC coil to the A1/A2 screw terminals and the three main poles to the line and load screw terminals; the common error is forgetting to tighten the auxiliary 1NO contact screws.

When should I plan to replace the contact tips or the coil?

The contactor is rated for 6 A inductive and 20 A resistive loads; inspect the main contacts for pitting after heavy duty cycles and replace the unit if the 110/120V AC coil fails to pull in cleanly.
