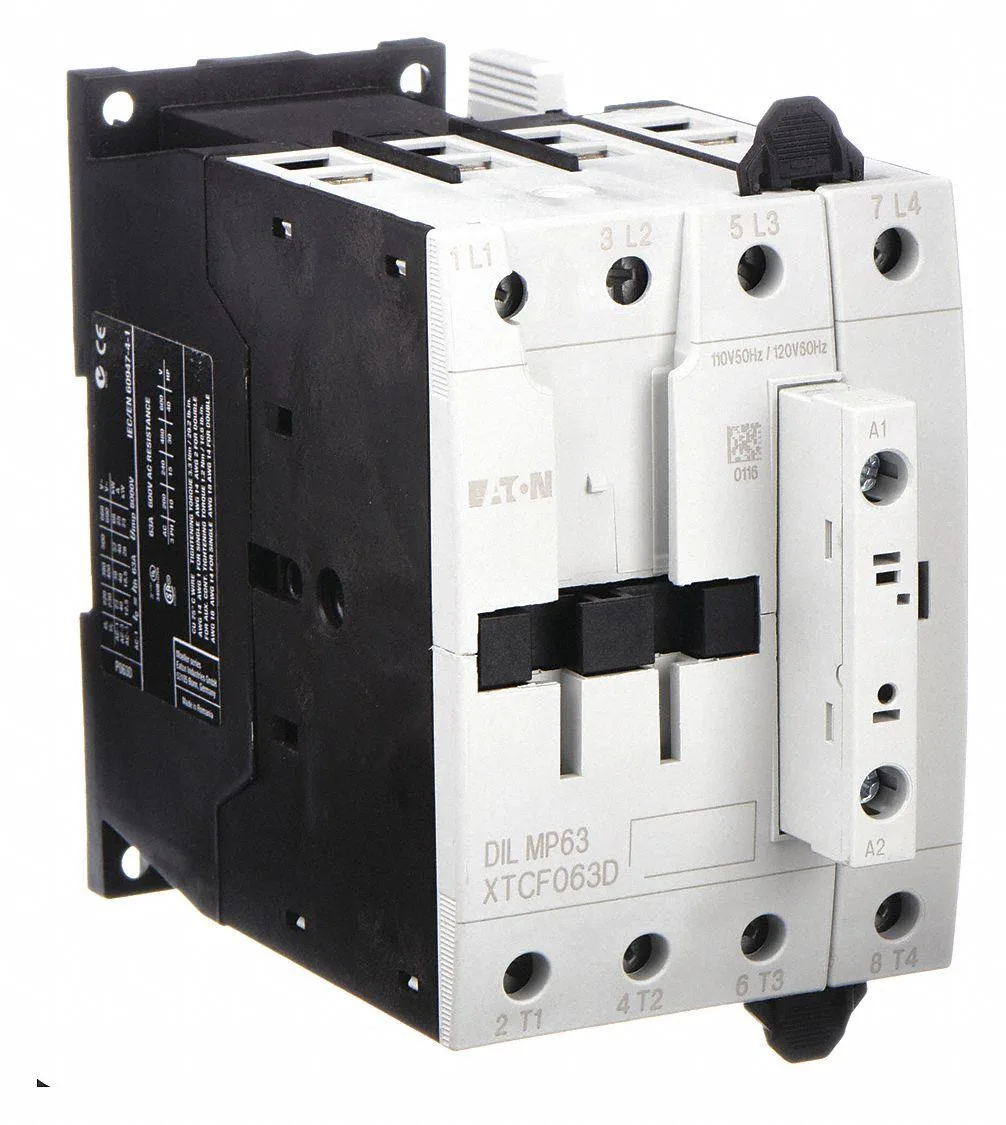

Eaton 4-pole 120V AC 40A contactor, grey rectangular block with top terminals

Eaton

Eaton XTCF063D00A 4-Pole 120V AC 40A Contactor

SKU CH-K6CV-B0QMJ

Four-pole IEC contactor rated 40 A inductive and 63 A resistive at 120 V AC coil voltage

  • Type3" Harsh Environment, Hook-and-Loop Closure
  • Handles 40 A inductive loads with 4-pole IEC design
  • Resistive rating reaches 63 A for broader circuit compatibility
  • 120 V AC coil enables direct low-voltage control
  • Rated for 10 hp at 240 V single-phase and 480 V three-phase
  • Certified to UL, CE, CSA, CCC, ATEX and IEC 60947 standards

Industrial Motor Control

The Eaton XTCF063D00A is a four-pole IEC magnetic contactor rated for 40 A inductive and 63 A resistive loads. It operates on a 120 V AC coil at 50/60 Hz and carries UL, CE, CSA, CCC, ATEX and IEC EN 60947 certifications. The unit measures 2.91 in high, 2.91 in wide and 5.2 in deep with no enclosure provided. Frame D construction suits harsh-environment mounting via hook-and-loop closure.

Three-Phase Switching Applications

This contactor suits panels that switch three-phase motors up to 30 hp at 480 V or 40 hp at 575 V. Single-phase loads up to 10 hp at 240 V are also supported. Buyers who need a reversing starter or an integrated overload relay should look at a different assembly. Installations requiring a factory-fitted enclosure or a DC coil voltage are not served by this model.

Panel Integration Requirements

The device mounts directly onto a DIN rail or base plate inside a user-supplied enclosure. Four main poles simplify wiring for three-phase motors with a separate neutral or for dual-circuit arrangements. Coil terminals accept standard control-circuit conductors. The open-frame design frees internal panel space and allows unrestricted airflow around the contactor body.

Highlights

  • Handles 40 A inductive loads with 4-pole IEC design
  • Resistive rating reaches 63 A for broader circuit compatibility
  • 120 V AC coil enables direct low-voltage control
  • Rated for 10 hp at 240 V single-phase and 480 V three-phase
  • Certified to UL, CE, CSA, CCC, ATEX and IEC 60947 standards

Specifications

BrandEaton
ModelXTCF063D00A
Type3" Harsh Environment, Hook-and-Loop Closure

Questions about this item

What control-circuit voltage must my panel supply to operate the 120 V AC coil on this Eaton XTCF063D00A contactor?

The coil is rated for 120 V AC at 50/60 Hz, so your control circuit must provide that voltage and frequency.

Can I use this 4-pole, 40 A inductive-rated contactor on a 208 V three-phase motor load?

Yes, it is rated for 10 hp at 208 V three-phase and 40 A inductive full-load current.

How do I verify the contactor is switching correctly after wiring it?

Apply 120 V AC to the coil and confirm all four poles close; measure continuity across each power pole to ensure proper contact.
