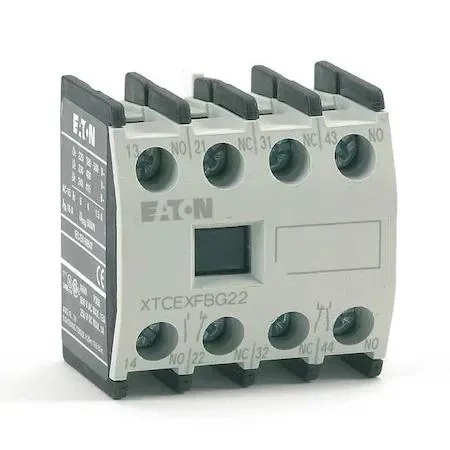

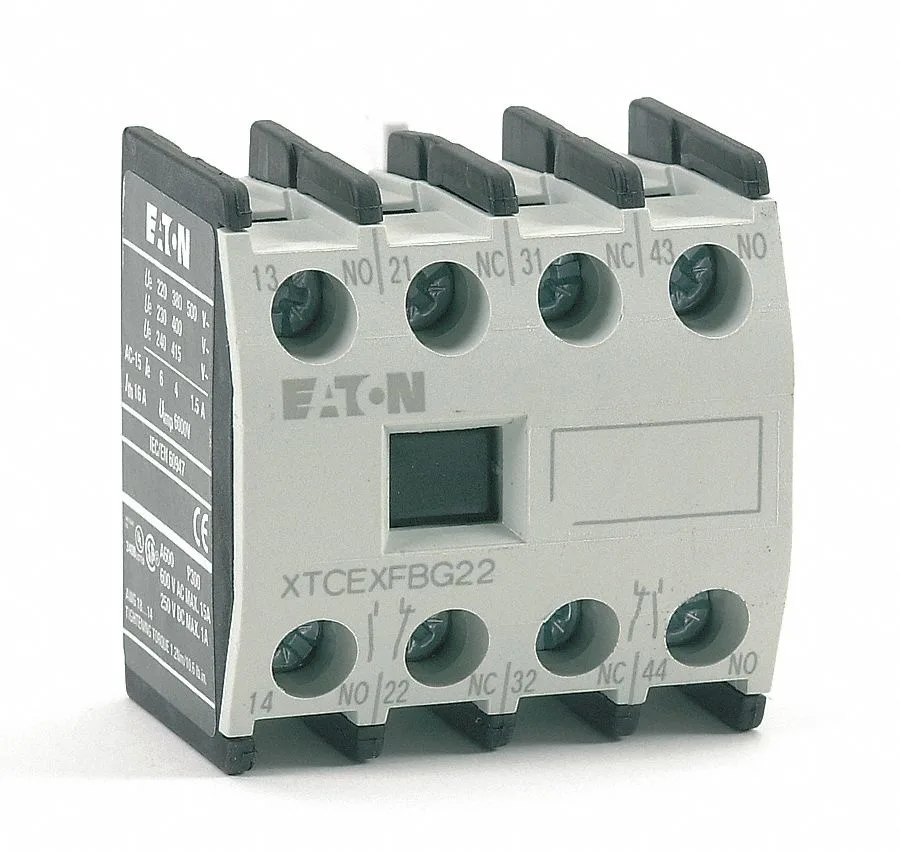

Transparent auxiliary contact block with front mounting tabs

Eaton

Eaton XTCEXFBG22 Front Aux Seq B 2NO/2NC Frame D-G

SKU CH-FGSH-3KD8K

Front-mount auxiliary contact block with two normally open and two normally closed contacts rated 16 A at 500 V AC for Eaton XT frame D-G control relays

  • TypeIndustrial Electrical Controls & Automation
  • ColorTransparent
  • Front-mount auxiliary contact with 4 poles for XT Frame D-G control relays
  • 16 A AC current rating supports reliable switching in industrial circuits
  • 2 normally open and 2 normally closed contacts provide versatile control logic
  • 500 V AC maximum voltage rating handles demanding electrical environments
  • Transparent housing allows quick visual inspection of contact status

Eaton XTCEXFBG22 Auxiliary Contact

This Eaton auxiliary contact mounts on the front of XT series control relays in frame sizes D through G. It provides four poles in a 2NO/2NC configuration rated at 16 A AC and a maximum voltage of 500 V AC. The transparent housing allows visual confirmation of contact status. It is designed for industrial electrical control and automation panels.

Front mount snaps onto compatible relays

Installation is a direct front-mount snap onto XTRE control relays of the correct frame size; no tools are required for the mechanical fit. The main point of failure is selecting a relay outside the D, E, F or G frame range, which prevents the contact block from latching securely. Verify the relay frame designation before ordering to avoid a mismatch that cannot be corrected in the field.

Suits panels needing extra 2NO/2NC poles

This block suits engineers expanding existing XTRE relay circuits with additional normally open and normally closed contacts at 16 A. It is not for applications requiring a different pole count, a higher current rating or a voltage above 500 V AC. Buyers who need side-mounting, a different contact arrangement or compatibility with other relay series should look at alternative contact blocks.

Highlights

  • Front-mount auxiliary contact with 4 poles for XT Frame D-G control relays
  • 16 A AC current rating supports reliable switching in industrial circuits
  • 2 normally open and 2 normally closed contacts provide versatile control logic
  • 500 V AC maximum voltage rating handles demanding electrical environments
  • Transparent housing allows quick visual inspection of contact status

Specifications

BrandEaton
TypeIndustrial Electrical Controls & Automation
ColorTransparent

Questions about this item

How do I confirm the front-mounted auxiliary contact is operating correctly after installation?

Verify that the two normally open and two normally closed contacts change state cleanly when the XTRE control relay actuates, and that the 16 A AC rating at 500 V AC is not exceeded.

What ships with the XTCEXFBG22 and what must be sourced separately?

The auxiliary contact block itself is supplied; the compatible XTRE control relay and any mounting hardware for Frame D, E, F or G are not included.

Which frame-size version should I select for my XTRE relay?

Choose this XTCEXFBG22 block when your relay uses Frame D, E, F or G — it is built for those frame sizes only.
