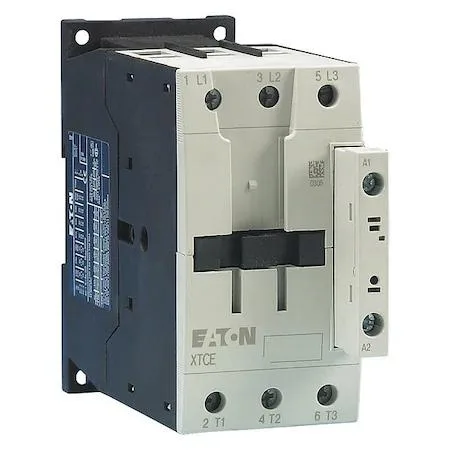

Eaton XTCE072D00A Magnetic Contactor 120V AC 3P 72A
An IEC magnetic contactor rated for 72 A inductive and 98 A resistive loads at 110/120 V AC across three poles, mounting on DIN rail or panel with screw terminals and no auxiliary contacts
- TypeIndustrial Electrical Controls & Automation
- ColorTransparent
- Handles 72 A inductive loads for reliable motor control
- 98 A resistive rating supports heating and lighting circuits
- 120 V AC coil integrates with standard control panels
- 3-pole design switches all phases in one compact unit
- DIN rail or panel mounting fits existing enclosures
Eaton XTCE072D00A Contactor Overview
The Eaton XTCE072D00A is a three-pole IEC magnetic contactor rated for 72 A inductive and 98 A resistive loads. It operates on a 110/120 V AC coil and mounts on DIN rail or panel. The unit ships new without auxiliary contacts included.
Coil Voltage and Mounting Check
Verify that your control circuit supplies 110 V AC or 120 V AC to match the coil rating. Ensure the DIN rail or panel space accommodates the 4.09 in height and 2.17 in width. Confirm screw-terminal wiring suits your conductor size and that no auxiliary contacts are required.
Sustained Load Behaviour
Under continuous operation the contactor handles its full 72 A inductive or 98 A resistive rating without derating. The IEC Frame Size D construction maintains consistent contact pressure during extended duty cycles. Non-reversing design means direction changes require external circuitry.
Highlights
- Handles 72 A inductive loads for reliable motor control
- 98 A resistive rating supports heating and lighting circuits
- 120 V AC coil integrates with standard control panels
- 3-pole design switches all phases in one compact unit
- DIN rail or panel mounting fits existing enclosures
Specifications
| Brand | Eaton |
|---|---|
| Type | Industrial Electrical Controls & Automation |
| Color | Transparent |
Questions about this item
What comes with the Eaton XTCE072D00A contactor and what must be purchased separately?
The unit includes the 3-pole IEC magnetic contactor with a 110/120 V AC coil, screw terminals and DIN-rail or panel mounting hardware. Auxiliary contacts are not included and must be ordered separately if required.
How do I choose between the inductive and resistive current ratings for this contactor?
Use the 72 A inductive rating for motor loads and the 98 A resistive rating for heating or lighting circuits; select the value that matches your load type.
What does the 72 A inductive rating mean when the contactor is installed in a panel?
It is the maximum full-load current the contactor can switch on a three-phase inductive load at 110/120 V AC coil voltage while mounted on a DIN rail or panel with screw-terminal connections.
