Transparent IEC magnetic contactor, DIN rail mount, screw terminals, 32 A 24 V DC 3-pole non-reversing

Eaton

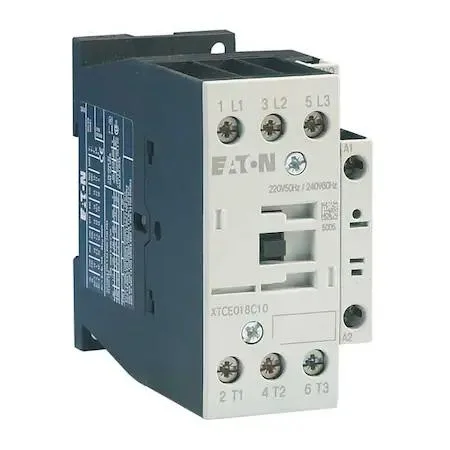

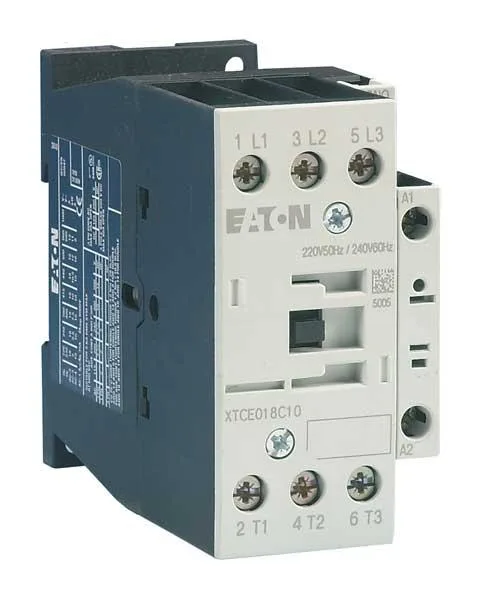

Eaton XTCE032C10TD IEC Magnetic Contactor 32A 24V DC 3P Non-Reversing

SKU CH-1YG6-ZT1Z0

Three-pole IEC magnetic contactor rated 32 A inductive load, 24 V DC coil, non-reversing with 1 NO auxiliary contact and screw terminals

  • TypeIndustrial Electrical Controls & Automation
  • ColorTransparent
  • Handles inductive loads up to 32 A
  • Resistive rating reaches 45 A for heating circuits
  • 10 hp at 240 V three-phase power
  • Compact 3.5 in width fits tight DIN-rail space
  • 24 V DC coil suits low-voltage control panels

Purpose and Audience

This Eaton XTCE032C10TD IEC magnetic contactor is built for industrial control panels that switch three-phase motor loads up to 32 A inductive or 45 A resistive. It suits automation engineers and panel builders who need a compact, DIN-rail or panel-mount device with a 24 V DC coil and a single normally-open auxiliary contact for status feedback.

Capacity and Headroom

The contactor carries 32 A inductive and 45 A resistive at its main poles and is rated for 10 hp at 240 V AC three-phase, giving headroom for typical fractional to mid-range motor starters. It runs out when the load exceeds those current or horsepower values or when a reversing function is required, as this model is non-reversing only.

Interface and Practical Limits

A 24 V DC coil drives the three main poles plus one auxiliary contact, all terminated with screw terminals for secure wiring. The IEC frame C housing measures 2 in high by 3.5 in wide and carries no NEMA enclosure rating, so the installer must provide a suitable cabinet or enclosure for environmental protection.

Highlights

  • Handles inductive loads up to 32 A
  • Resistive rating reaches 45 A for heating circuits
  • 10 hp at 240 V three-phase power
  • Compact 3.5 in width fits tight DIN-rail space
  • 24 V DC coil suits low-voltage control panels

Specifications

BrandEaton
TypeIndustrial Electrical Controls & Automation
ColorTransparent

Questions about this item

Will the 32 A inductive rating of this contactor handle the same motor loads as my older IEC starter?

The contactor is rated for 32 A inductive and 45 A resistive full-load current, so it can control loads within those limits.

How can I confirm the 24 V DC coil is energised after wiring it to my DIN-rail panel?

When 24 V DC is applied to the coil terminals, the main 3-pole contacts close and the single 1NO auxiliary contact changes state, giving a clear electrical indication.

Does the box include DIN-rail clips and screw-terminal connectors, or must I buy them separately?

The unit has integral DIN-rail and panel mounting with built-in screw terminals, so no separate clips or connectors are required for installation.
