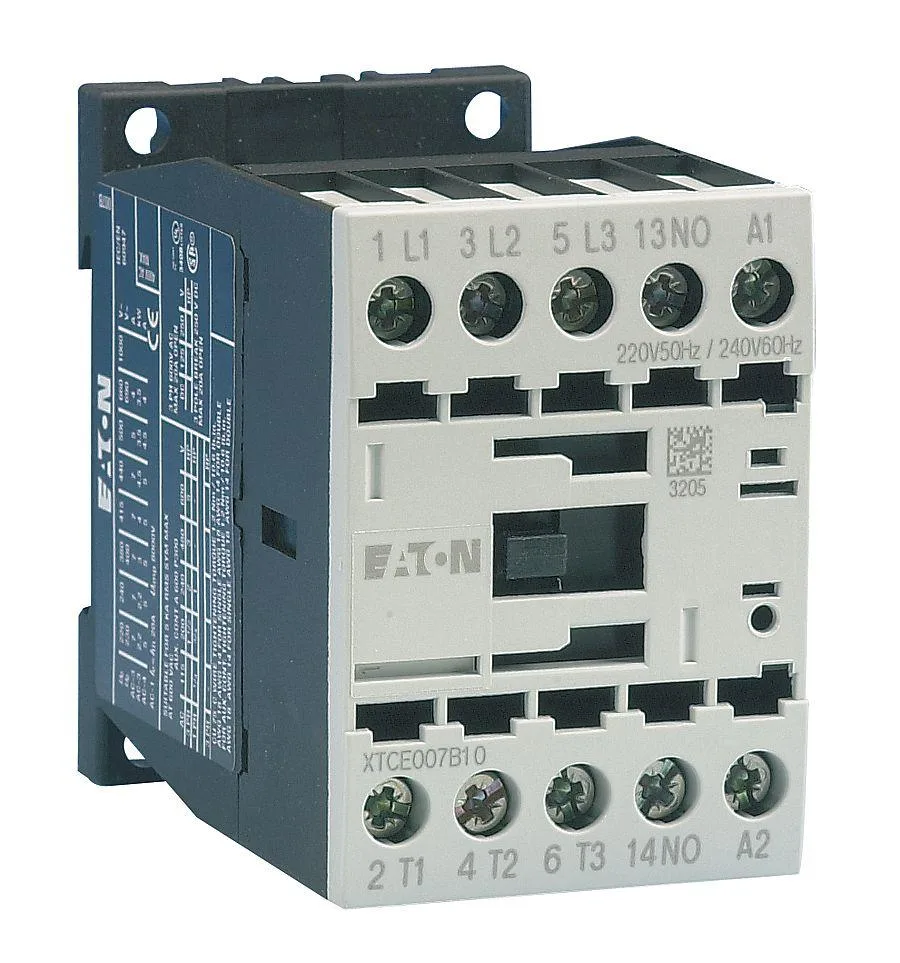

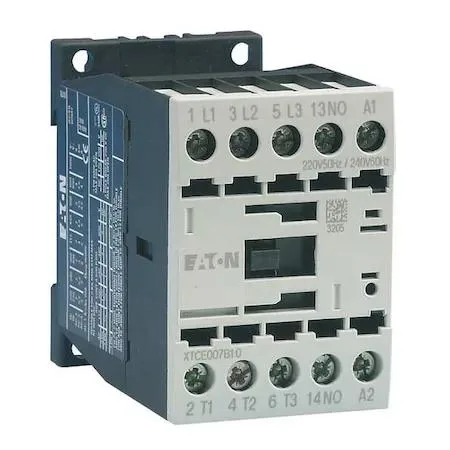

Transparent rectangular magnetic contactor with screw terminals, DIN rail mounting, 3 pole 240V AC 9A

Eaton

Eaton XTCE009B01B Magnetic Contactor 3 Pole 240V AC 9A

SKU CH-8XGE-C90B5

Three-pole IEC magnetic contactor rated 9 A inductive and 22 A resistive at 220/240 V AC, with one normally-closed auxiliary contact and DIN-rail or panel mounting

  • TypeIndustrial Electrical Controls & Automation
  • ColorTransparent
  • 3-pole contactor handles 9 A inductive loads
  • 22 A resistive rating supports heating circuits
  • 220-240 V AC coil matches common supplies
  • Single NC auxiliary contact enables feedback
  • DIN-rail or panel mount simplifies installation

3-Pole 240 V AC Magnetic Contactor

The Eaton XTCE009B01B is an IEC-style magnetic contactor rated for three poles at 240 V AC with a 9 A inductive full-load current. It mounts on DIN rail or panel and uses screw terminals for wiring. The unit includes one normally-closed auxiliary contact and carries a 3 hp rating at 240 V AC three-phase.

Suited for simple motor-start circuits.

This contactor fits panels that need a non-reversing starter for small three-phase motors or resistive loads up to 22 A. It lacks reversing capability, so applications requiring forward-reverse operation must use a different assembly. The single auxiliary contact also limits complex control schemes that need multiple status signals.

Handles 3 hp at 240 V three-phase.

The power contacts manage 9 A inductive and 22 A resistive loads, giving comfortable headroom for small pumps, fans or heaters. Beyond 3 hp at 240 V three-phase the contactor reaches its rated limit and a larger frame is required. The coil operates directly from 220/240 V AC supplies without a separate transformer.

Highlights

  • 3-pole contactor handles 9 A inductive loads
  • 22 A resistive rating supports heating circuits
  • 220-240 V AC coil matches common supplies
  • Single NC auxiliary contact enables feedback
  • DIN-rail or panel mount simplifies installation

Specifications

BrandEaton
ModelXTCE009B01B
TypeIndustrial Electrical Controls & Automation
ColorTransparent

Questions about this item

Do I need a DIN rail or a flat panel surface to mount the XTCE009B01B?

The contactor supports both DIN rail and panel mounting, so you can clip it onto a standard rail or screw it directly to a flat surface inside the enclosure.

Will the 220/240 V AC coil on this contactor operate from the same control voltage as my existing 240 V AC relay?

Yes, the coil is rated for 220/240 V AC, matching common 240 V AC control circuits, so it can share the same supply as other 240 V AC devices.

After wiring the three main poles and the 1 NC auxiliary contact, how can I verify the XTCE009B01B is switching correctly?

Apply 220/240 V AC to the coil, listen for the mechanical click, then use a multimeter to confirm continuity across the three main poles and that the auxiliary contact opens when energised.
