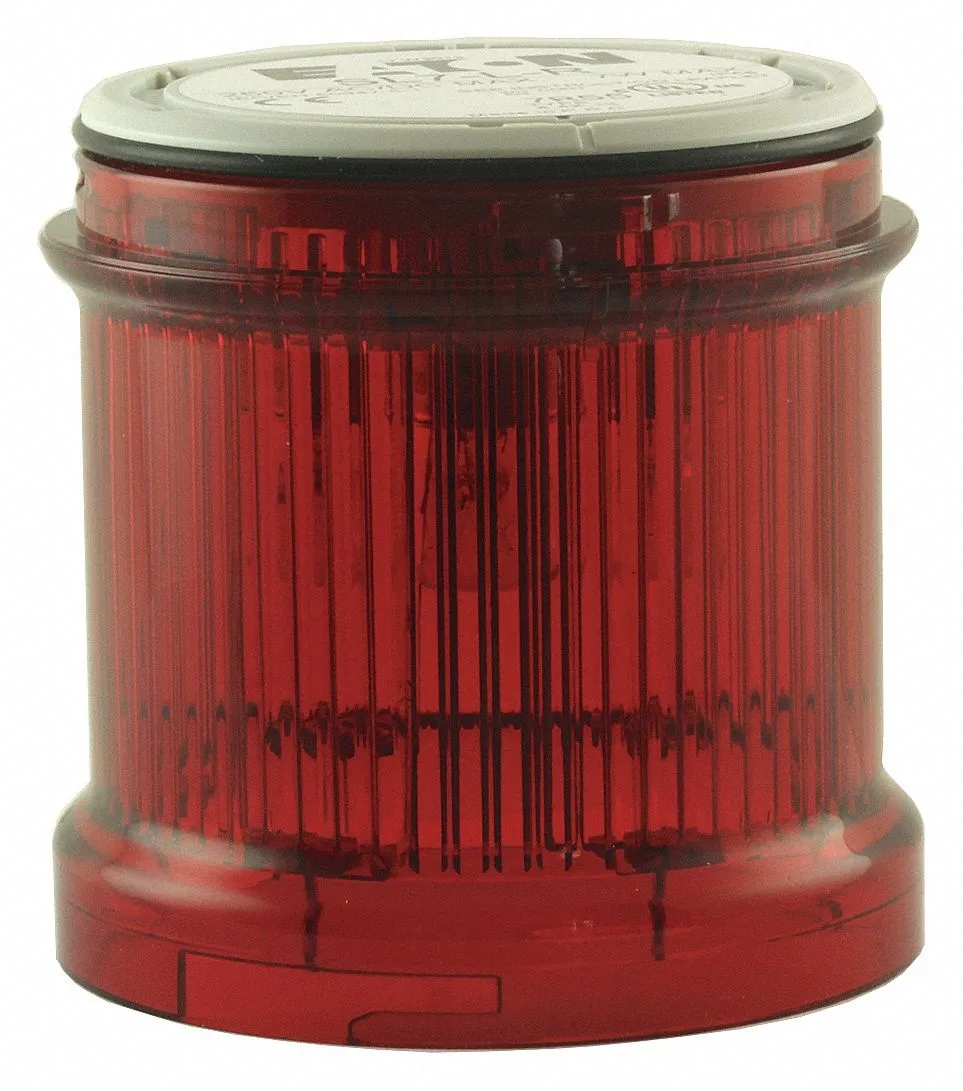

Red 70 mm diameter tower light module with polycarbonate housing and Fresnel lens

Eaton

Eaton SL7-L120-R Tower Light Module Red 70 mm 110/120V AC

SKU CH-A9A3-BSD21

Red 70 mm LED tower light module for 110/120V AC with NEMA 4/4X/13 rating and 100,000 hr lamp life

  • ColorRed
  • Bright red LED gives clear visual signalling at 70 mm diameter
  • Low 0.031 A draw at 110/120 V AC keeps energy costs down
  • LED rated for 100,000 hour lamp life reduces replacement frequency
  • Polycarbonate housing and lens rated NEMA 4, 4X and 13 for harsh environments
  • Certified to CE, CSA and cULus standards including UL 508

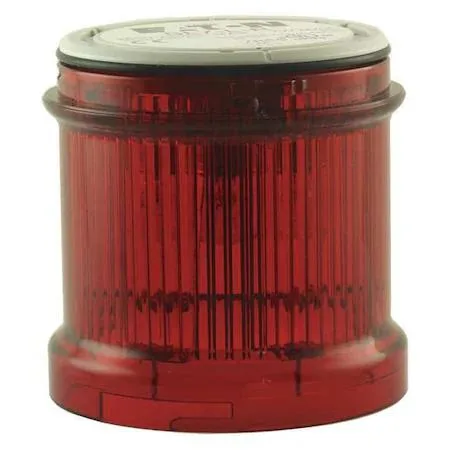

Eaton SL7 Tower Light Module Red

The Eaton SL7-L120-R is a 70 mm diameter tower light module with a red LED Fresnel lens. It operates on 110/120V AC and draws 0.031A current. The polycarbonate housing and lens carry NEMA 4, 4X and 13 ratings. It is suited for facility and traffic safety signalling where a compact, highly visible indicator is required.

Sustained operation within rated limits

Continuous operation is supported across an ambient range of -22 to 140 degrees F. The LED source is rated for 100,000 hours of lamp life under normal conditions. Current draw remains steady at 0.031A during prolonged use. The unit carries UL 508, cULus, CE and CSA certifications including CSA C 22.2 No. 14-10 and No. 94-91.

Interface and installation constraints

The module requires a 110/120V AC supply and mounts in a standard 70 mm cut-out. No flash-rate specification is provided, so the light emits a steady signal only. Compliance is documented under UL File E29184 and IEC rating. Buyers needing a different voltage, colour or flashing function must select another model.

Highlights

  • Bright red LED gives clear visual signalling at 70 mm diameter
  • Low 0.031 A draw at 110/120 V AC keeps energy costs down
  • LED rated for 100,000 hour lamp life reduces replacement frequency
  • Polycarbonate housing and lens rated NEMA 4, 4X and 13 for harsh environments
  • Certified to CE, CSA and cULus standards including UL 508

Specifications

ColorRed
BrandEATON

Questions about this item

How much current does the 120V AC tower light draw when running continuously?

The LED module draws 0.031 A at 120 V AC, so heat and power consumption stay very low even during all-day operation.

What mounting hardware or wiring is required before the light can be installed?

The 70 mm polycarbonate housing is designed for standard panel mounting; you supply the conduit, wire and a 110/120 V AC circuit.

Will the NEMA 4X and UL 508 ratings let me keep using my existing outdoor control panel?

Yes — NEMA 4, 4X and 13 plus UL 508 listing mean the light fits the same enclosures and wiring you already use.
