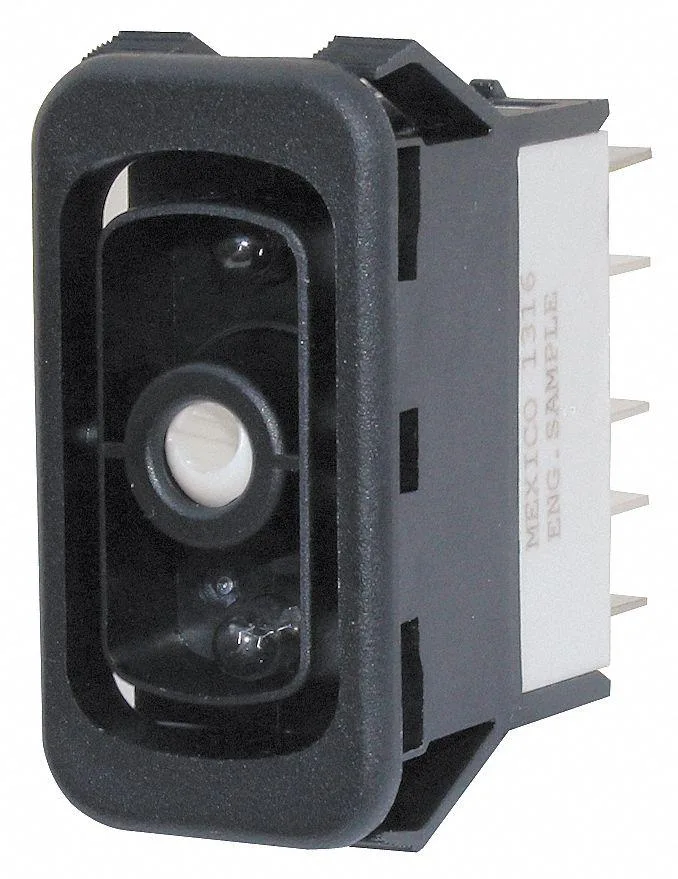

Eaton NGR25031BNA0N Lighted Rocker Switch
A lighted rocker switch with DPST contacts, six 0.250 in quick-connect tabs and a 14 V incandescent indicator, rated 10 A at 250 V AC and 15 A at 28 V DC
- Lighted indicator shows status at a glance
- DPST off/on function controls two circuits simultaneously
- 10 A at 250 V AC rating handles mains loads
- 15 A at 28 V DC rating suits automotive systems
- IP42 protection resists splashes in workshop environments
Electrical Starter & Contactor Switch
The Eaton NGR25031BNA0N is a new lighted rocker switch built for machinery and machine-shop electrical panels. It suits installers who need a maintained off/on function with a built-in 14 V DC incandescent indicator for clear status visibility.
DPST 6-Terminal Capacity
Rated for 15 A at 125 V AC, 10 A at 250 V AC and 15 A at 28 V DC, the double-pole single-throw mechanism handles moderate control-circuit loads. The 0.250 in quick-connect tabs provide secure termination, while the IP42 rating limits use to indoor environments protected from dripping water.
Panel Mount with Indicator Light
A rectangular mounting hole of 0.867 in by 1.734 in is required for panel installation. The illuminated rocker frees operators from adding separate pilot lights, and CSA, RoHS and UL listings confirm compliance for North American control panels.
Highlights
- Lighted indicator shows status at a glance
- DPST off/on function controls two circuits simultaneously
- 10 A at 250 V AC rating handles mains loads
- 15 A at 28 V DC rating suits automotive systems
- IP42 protection resists splashes in workshop environments
Specifications
| Brand | EATON |
|---|
Questions about this item
Will the 0.250 in quick-connect tabs mate with the spade terminals on my existing 12 V panel wiring?
Yes, the 0.250 in tabs accept standard 1/4 in female spade connectors used on most 12 V and 125 VAC panels.
How do I confirm the 14 V DC indicator is lit correctly once the switch is mounted?
The rocker illuminates when the switch is in the On position; verify the light glows and measure continuity across the DPST contacts with a multimeter.
Does the package include mounting hardware or only the switch body?
Only the lighted rocker switch is supplied; mounting screws or a panel cut-out tool for the 0.867 in x 1.734 in hole must be sourced separately.
