Eaton M22M-WRK-K11 selector switch 22 mm 2 position black
A 22 mm metal selector switch with two maintained positions, IP67 and IP69K sealing, and 1NO/1NC contacts rated 6 A at 230 V AC
- 2-position maintained action gives clear on/off control
- 22 mm cut-out fits standard industrial panels
- IP67 and IP69K ratings resist water jets and high-pressure washdown
- NEMA 1, 2, 3, 4, 4X, 13 enclosures suit harsh environments
- 3 A at 24 V DC and 6 A at 230 V AC handles common control circuits
Eaton M22M-WRK-K11 Selector Switch 22 mm

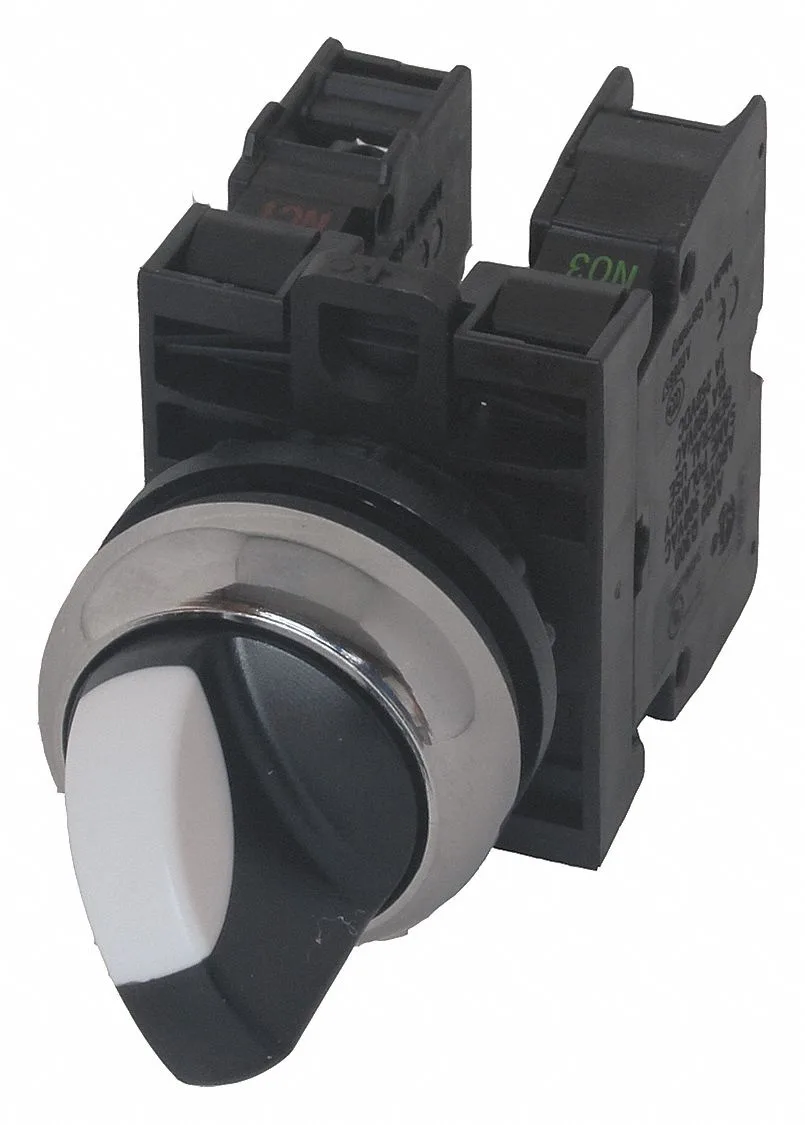

The Eaton M22M-WRK-K11 is a non-illuminated selector switch with a 22 mm mounting diameter. It features a maintained two-position action and a metal knob operator that rotates forty degrees. The unit carries one normally open and one normally closed contact block, all housed in a metal body with a chrome bezel.
Suitable for panels needing two maintained states
This switch fits panels that require a simple on-off or mode-change function with a metal operator rated to IP67 and IP69K. It is not for applications that need momentary action, keyed operation, or an illuminated actuator. Buyers who need spring-return or three-position switching should look elsewhere.
Contact rating 3 A at 24 V DC and 6 A at 230 V AC
The contacts are rated for 3 A at 24 V DC and 6 A at 230 V AC under AC-15 and DC-13 designations. This rating determines whether the switch can directly control your load or requires an interposing relay. Always verify the rating against your circuit requirements before installation.
Highlights
- 2-position maintained action gives clear on/off control
- 22 mm cut-out fits standard industrial panels
- IP67 and IP69K ratings resist water jets and high-pressure washdown
- NEMA 1, 2, 3, 4, 4X, 13 enclosures suit harsh environments
- 3 A at 24 V DC and 6 A at 230 V AC handles common control circuits
Specifications
| Brand | EATON |
|---|
Questions about this item
Does this selector switch need a separate contact block, or does the 1NO/1NC contact form come built into the operator head?
The 1NO/1NC contact form is included with the selector switch, so no additional contact block is required for basic operation.
Can this 22 mm selector switch be mounted in the same panel cut-out as my existing 22 mm push-buttons and indicator lights?
Yes, the 22 mm mounting diameter matches standard industrial panel cut-outs, allowing it to fit alongside other 22 mm operators.
After wiring the switch, how can I confirm the 3 A at 24 V DC and 6 A at 230 V AC ratings are being met in my circuit?
Measure the current through each contact with a multimeter while the switch is actuated; the readings should not exceed 3 A on 24 V DC circuits or 6 A on 230 V AC circuits.
