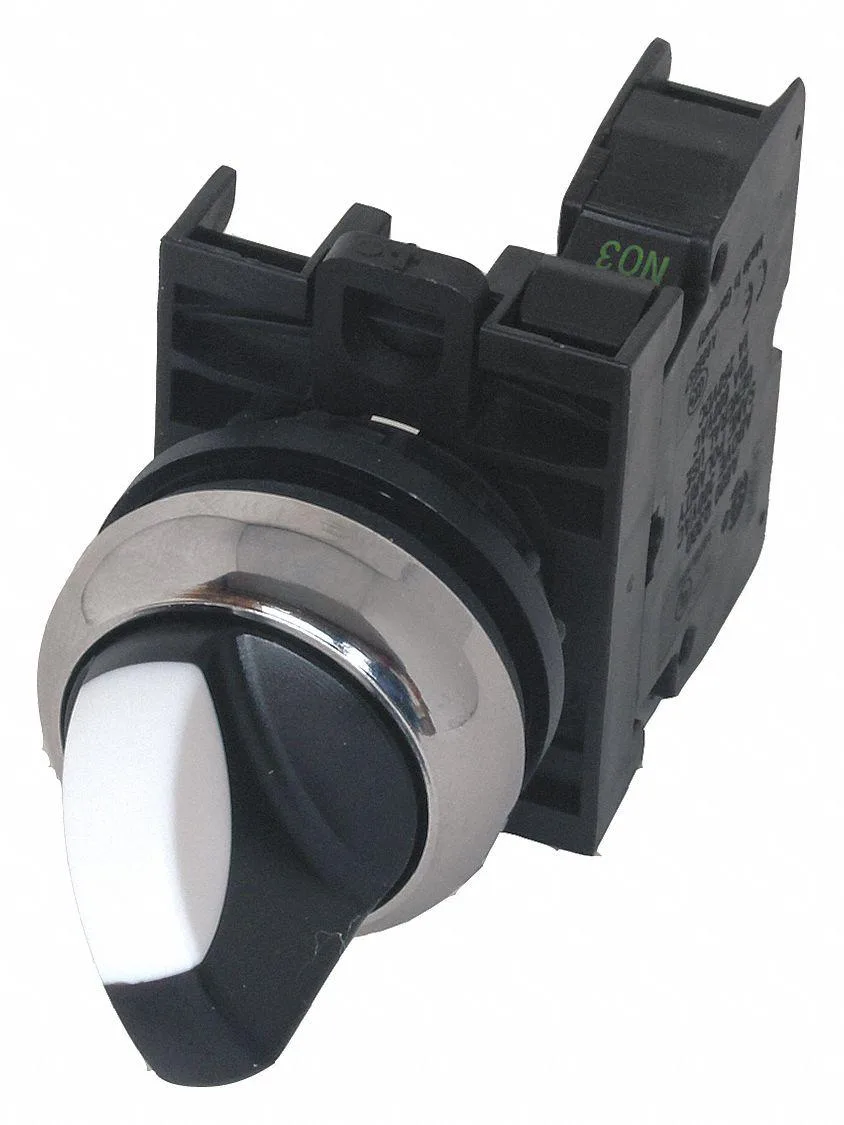

Eaton M22M-WRK-K10 selector switch 22 mm 2 position black
22 mm selector switch with two maintained positions, 1NO contact, IP67/IP69K protection and 40-degree knob rotation
- 2-position maintained action for clear control
- 22 mm mounting fits standard panels
- IP67 and IP69K ratings resist water and dust
- Metal construction with chrome bezel for durability
- 3 A at 24 V DC and 6 A at 230 V AC contact rating
Industrial selector switch for panel control
The Eaton M22M-WRK-K10 is a 22 mm non-illuminated selector switch designed for machine panels and control stations. It provides two maintained positions with a 40 degree rotation angle and a single normally open contact. The metal operator head and bezel suit industrial environments where robust manual control is required.
Contact ratings and environmental limits
The switch carries a contact rating of 3A at 24 V DC and 6A at 230 V AC under NEMA designations AC-15 and DC-13. Enclosure ratings include NEMA 1, 2, 3, 4, 4X, 13 and IP67 plus IP69K, so the device resists dust, water jets and high-pressure wash-down. It is not suited for loads exceeding the stated current values or for circuits requiring multiple contact blocks.
Metal construction and mounting implications
The operator head, basic body and bezel are all metal with a chrome bezel finish, giving mechanical durability in vibration-prone machinery. A 22 mm panel cut-out is required and no cam is needed for the maintained action. Buyers needing illuminated operation, keyed removal or additional contact forms should select a different model.
Highlights
- 2-position maintained action for clear control
- 22 mm mounting fits standard panels
- IP67 and IP69K ratings resist water and dust
- Metal construction with chrome bezel for durability
- 3 A at 24 V DC and 6 A at 230 V AC contact rating
Specifications
| Brand | EATON |
|---|
Questions about this item
Which selector switch version should I choose for a standard 22 mm panel cut-out?
This model is built for a 22 mm mounting hole and uses a maintained two-position knob with one normally open contact, so it fits the cut-out directly without adapters.
What does the 3 A at 24 V DC rating mean when the switch is installed in a control circuit?
It means the contact can reliably carry up to 3 A on a 24 V DC load such as a relay coil or indicator without exceeding its DC-13 duty rating.
How do the IP67 and IP69K ratings limit where the switch can be mounted?
The ratings certify protection against temporary immersion and high-pressure wash-down, so the switch can be used on equipment that is hosed down or exposed to heavy spray.
