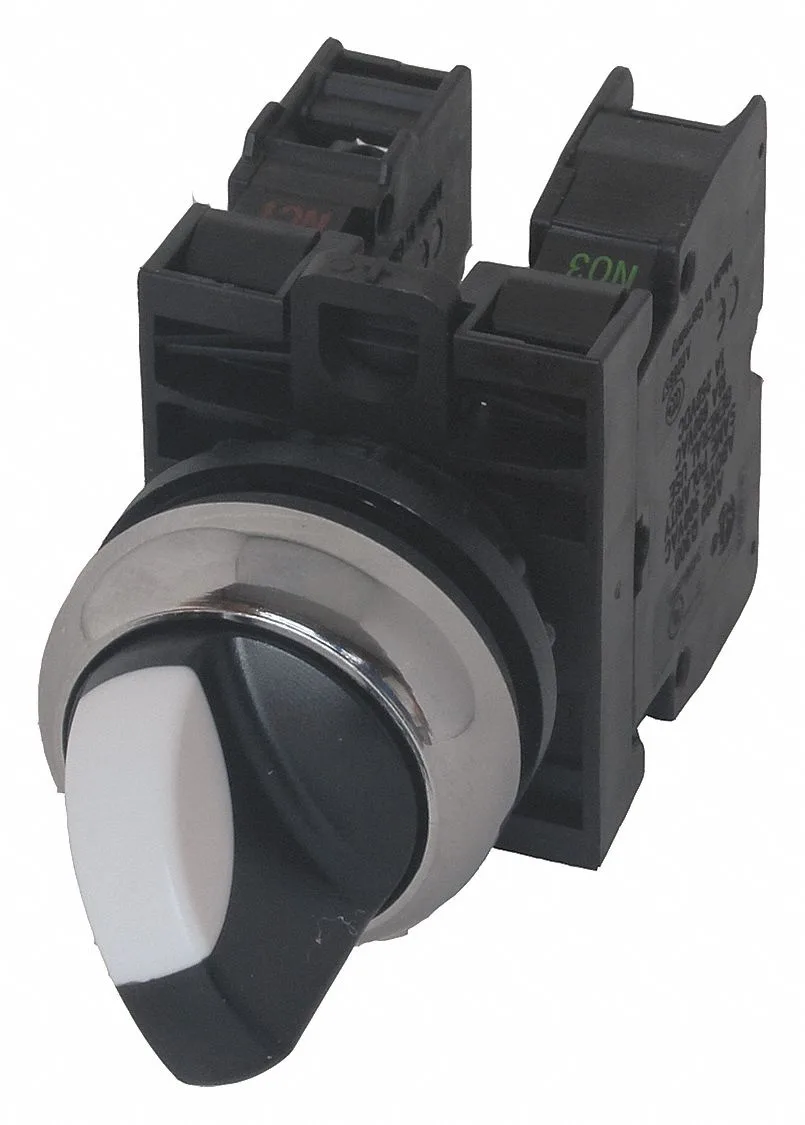

Eaton M22M-WKV-K11 selector switch 22 mm 2 position black
A 22 mm maintained selector switch with metal operator head, IP67 and IP69K sealing, and 1NO/1NC contacts rated 6 A at 230 V AC
- Reliable control with maintained two-position action
- Durable metal operator head and bezel for long service
- Sealed to IP67 and IP69K for wash-down environments
- Rated for NEMA 1, 2, 3, 4, 4X and 13 enclosures
- 1NO/1NC contacts rated 6A at 230V AC and 3A at 24V DC
Industrial selector switch for 22 mm panels
The Eaton M22M-WKV-K11 is a 22 mm non-illuminated selector switch designed for machinery and machine-shop control panels. It provides a two-position maintained action with one normally open and one normally closed contact, suited for operators who need a simple on-off or mode-change function in industrial environments.
Rated for harsh environments and low-power circuits
The switch carries a contact rating of 6A at 230V AC and 3A at 24V DC, with NEMA designations AC-15 and DC-13. Its metal operator head, bezel and basic construction meet NEMA 1, 2, 3, 4, 4X and 13 ratings plus IP67 and IP69K ingress protection, so it resists dust, water jets and high-pressure washdown without a separate enclosure.
Maintained positions stay put during continuous duty
Both positions are maintained, meaning the knob remains in the selected 60-degree rotation without spring return, giving a stable state for extended production runs. The cam requires no separate cam accessory, and the metal construction withstands repeated actuation cycles in demanding applications where momentary switches would not hold position.
Highlights
- Reliable control with maintained two-position action
- Durable metal operator head and bezel for long service
- Sealed to IP67 and IP69K for wash-down environments
- Rated for NEMA 1, 2, 3, 4, 4X and 13 enclosures
- 1NO/1NC contacts rated 6A at 230V AC and 3A at 24V DC
Specifications
| Brand | EATON |
|---|
Questions about this item
How do I install the 22 mm selector switch and what step is often missed?
Mount the operator head in a 22 mm panel cut-out, secure the metal bezel, then attach the 1NO/1NC contact block; the step often missed is verifying the 60-degree rotation cam aligns with both maintained positions.
What maintenance or replacement will the Eaton M22M-WKV-K11 need over time?
The metal operator and IP67/IP69K seals are maintenance-free; only the 1NO/1NC contact block may need replacement if the 3 A at 24 V DC or 6 A at 230 V AC ratings are exceeded.
Which limit appears first during sustained operation of this selector switch?
The contact rating of 3 A at 24 V DC and 6 A at 230 V AC (AC-15/DC-13) is the first limit reached under continuous load.
