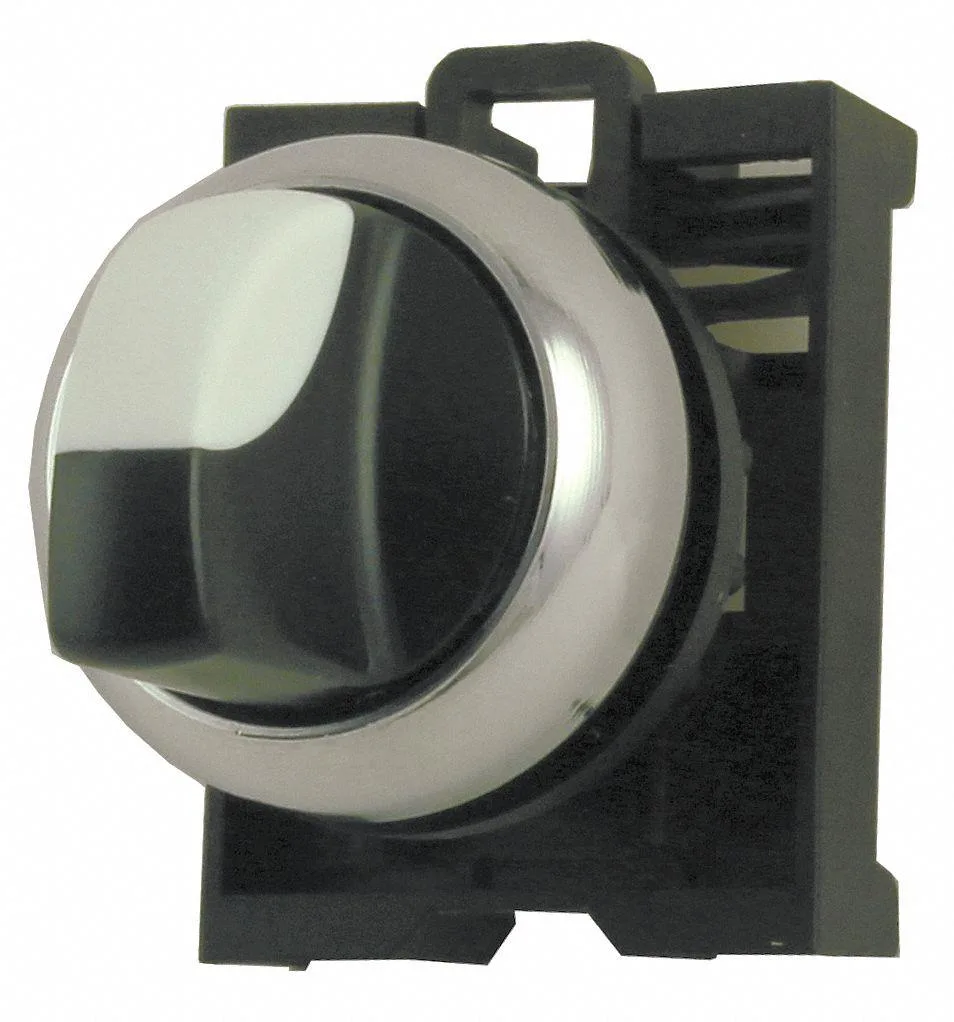

Eaton M22M-WK3 Short Handle Selector Switch, Black, 3 Position, 22 mm
22 mm three-position selector switch with momentary action, metal head and bezel, rated IP66, IP67 and IP69K for 100 000 mechanical operations
- Momentary three-position action for flexible control
- 22 mm metal operator fits standard panels
- IP66 IP67 IP69K sealing resists water and dust
- NEMA 1 2 3 4 4X 13 ratings suit harsh environments
- 100000 mechanical operations rated life for durability
Eaton M22M-WK3 Selector Switch
The Eaton M22M-WK3 is a 22 mm short-handle selector switch designed for industrial control panels and machinery interfaces. It provides three-position momentary operation with a black knob operator for manual circuit selection in automation environments.
Metal construction with IP66 IP67 IP69K sealing
The operator head and bezel are made of metal with a chrome bezel finish, delivering NEMA 1 2 3 4 4X 13 ratings for demanding environments. Advanced sealing technology provides industry-leading water resistance, while the 22 mm mounting format fits standard panel cutouts without a cam requirement.
Replaces worn or lower-rated selector switches
This switch upgrades panels that need higher ingress protection or longer mechanical life, rated at 100000 operations. It is not suited for applications requiring maintained positions or key-operated security, and buyers needing maintained action or keyed removal should specify a different operator type.
Highlights
- Momentary three-position action for flexible control
- 22 mm metal operator fits standard panels
- IP66 IP67 IP69K sealing resists water and dust
- NEMA 1 2 3 4 4X 13 ratings suit harsh environments
- 100000 mechanical operations rated life for durability
Specifications
| Brand | EATON |
|---|
Questions about this item
What NEMA ratings does this 22 mm selector switch meet?
The switch carries NEMA 1, 2, 3, 4, 4X and 13 ratings, covering indoor and outdoor dust, water and oil-tight requirements.
What panel cut-out and bezel materials suit the M22M-WK3?
It fits a standard 22 mm panel cut-out and uses a metal operator head with a chrome metal bezel for secure front-of-panel mounting.
How is the selector switch installed and what common step is missed?
Insert the operator through the 22 mm hole, secure the metal bezel from the front, then snap the contact blocks onto the rear adapter — skipping the adapter leaves the switch electrically inactive.
