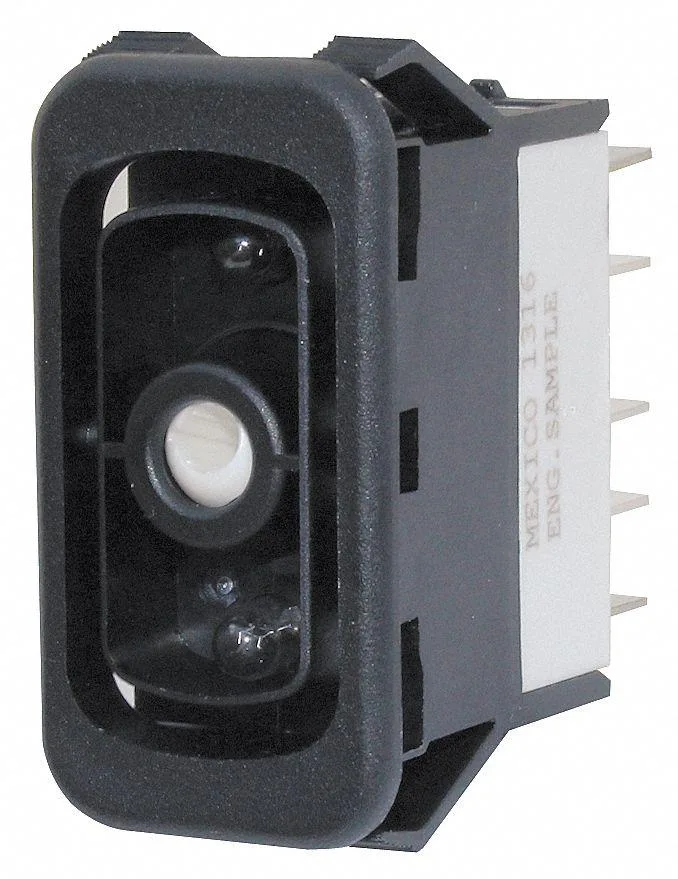

Eaton Lighted Rocker Switch SPDT On/Off/On 14V LED
SPDT rocker switch with 14 V LED indicator, 7 quick-connect terminals, rated 15 A at 28 V DC and IP42 sealed
- SPDT On/Off/On function gives three-position control
- 14 V LED indicator provides clear status lighting
- 15 A at 28 V DC rating handles demanding loads
- IP42 rating protects against splashing water and dust
- 250 in quick-connect tabs simplify wiring
Eaton SPDT Lighted Rocker Switch
This Eaton SPDT rocker switch provides three-position On/Off/On control with a built-in 14 V DC indicator light. It is suited for low-voltage automotive, marine or machinery panels where a visible switch state is required. The quick-connect tabs simplify wiring in tight enclosures.
Practical Limits of the IP42 Rating
The IP42 rating protects against solid objects larger than 1 mm and vertically dripping water. It is not sealed against jets, immersion or heavy condensation, so the switch should be mounted in a sheltered location or behind a panel gasket. The 0.250 in quick-connect terminals accept standard crimp tabs but are not designed for high-vibration environments without additional strain relief.
Capacity and Headroom
The contacts carry 15 A at 125 V AC, 10 A at 250 V AC and 15 A at 28 V DC, giving comfortable headroom for typical accessory circuits such as lighting, fans or small pumps. Continuous loads near the maximum ratings will generate heat at the terminals, so wire gauge and connector quality become critical. The switch is not rated for inductive motor-starting currents beyond the listed resistive values.
Highlights
- SPDT On/Off/On function gives three-position control
- 14 V LED indicator provides clear status lighting
- 15 A at 28 V DC rating handles demanding loads
- IP42 rating protects against splashing water and dust
- 250 in quick-connect tabs simplify wiring
Specifications
| Brand | EATON |
|---|
Questions about this item
Should I pick this single SPDT On/Off/On switch or look for a different contact form?
This unit is a single SPDT switch with an On/Off/On action and seven connections. Choose it when you need one switch that can toggle between two live circuits with a centre off position.
What does the 14 V LED indicator mean once the switch is wired in?
The built‑in lamp lights when the switch receives 14 V DC, giving a clear visual cue that the circuit is powered.
How do the 0.250 in quick‑connect tabs and the IP42 rating limit real‑world use?
The 0.250 in tabs accept standard push‑on terminals for fast wiring, while IP42 protects against finger‑size objects and dripping water but not immersion.
