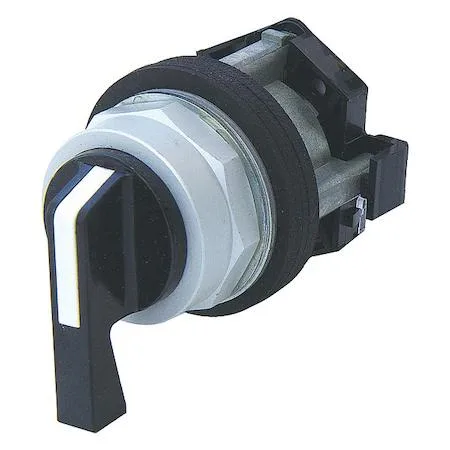

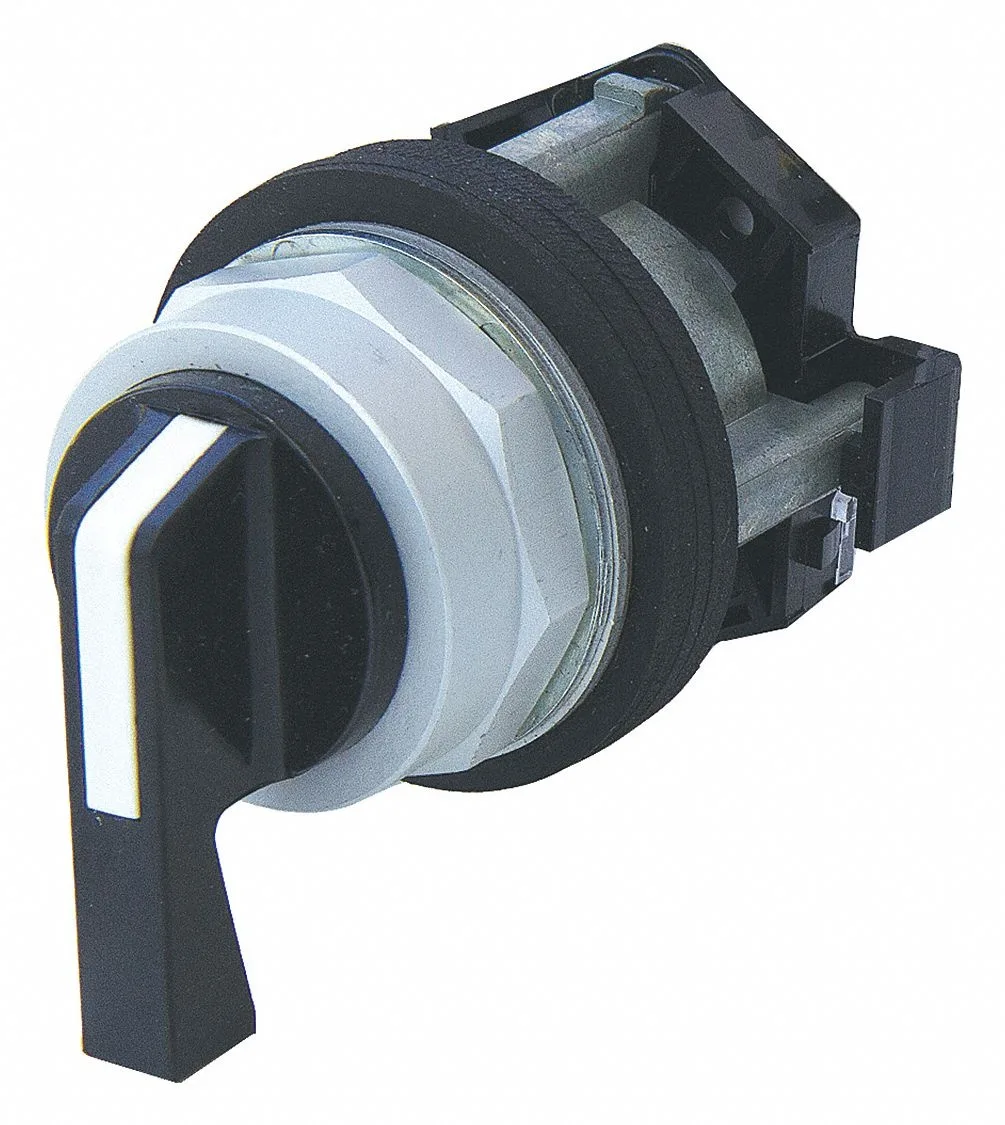

Black 30 mm three-position selector switch with long lever operator and chrome bezel

Eaton

Eaton HT8JYH1D Selector Switch 30mm 3 Pos Lever

SKU CH-D38J-T28VC

A 30 mm three-position selector switch with momentary and maintained lever action, NEMA 1, 2, 3, 4, 4X, 12, 13 and IP65 ratings

  • TypeLight Switch
  • Color/FinishBlack
  • Color MappingBlack
  • Three-position lever gives momentary, maintained and momentary control
  • 30 mm mounting diameter fits standard panel cut-outs
  • Metal operator head and chrome bezel resist wear in industrial environments
  • NEMA 1, 2, 3, 4, 4X, 12, 13 ratings protect against dust, water and oil ingress
  • IP65 rating confirms protection from low-pressure water jets and solid particles

Industrial 30 mm Selector Switch

The Eaton HT8JYH1D is a 30 mm non-illuminated selector switch with a three-position lever operator. It provides a momentary-maintained-momentary action sequence for control-panel applications. The metal operator head and chrome bezel meet NEMA 1, 2, 3, 4, 4X, 12 and 13 ratings plus IP65 ingress protection. CSA and UL listings confirm compliance for industrial installations.

Panel Builders Needing Three-Position Control

This switch suits engineers who require a rugged lever selector for motor direction, speed selection or mode changes in harsh environments. The long handle allows gloved operation and the broad NEMA/IP ratings cover wash-down and outdoor locations. Buyers who need illuminated indication, keyed security or a different cam sequence should look at alternative operator types.

Lever Operator and Environmental Sealing

The lever operator replaces a standard knob to give positive grip in wet or gloved conditions. NEMA 4X and IP65 sealing protects the contact block from water jets and corrosion without extra enclosures. The chrome bezel resists chemical exposure while the black finish reduces glare in bright industrial settings.

Highlights

  • Three-position lever gives momentary, maintained and momentary control
  • 30 mm mounting diameter fits standard panel cut-outs
  • Metal operator head and chrome bezel resist wear in industrial environments
  • NEMA 1, 2, 3, 4, 4X, 12, 13 ratings protect against dust, water and oil ingress
  • IP65 rating confirms protection from low-pressure water jets and solid particles

Specifications

TypeLight Switch
BrandEaton
Color/FinishBlack
Color MappingBlack

Questions about this item

What panel cut-out size does the 30 mm selector switch need?

The switch mounts in a standard 30 mm cut-out and carries NEMA 1, 2, 3, 4, 4X, 12, 13 ratings plus IP65 protection.

Can the chrome bezel and metal operator head survive the same environments as older NEMA 12 or 13 panels?

Yes, the chrome bezel and metal operator head meet NEMA 1, 2, 3, 4, 4X, 12, 13 and IP65, matching legacy NEMA 12 and 13 enclosures.

How do I confirm the three-position momentary-maintained-momentary cam action is functioning after wiring?

Move the black lever through all three positions; the centre detent should hold while the outer positions spring back, confirming cam 1D operation.
