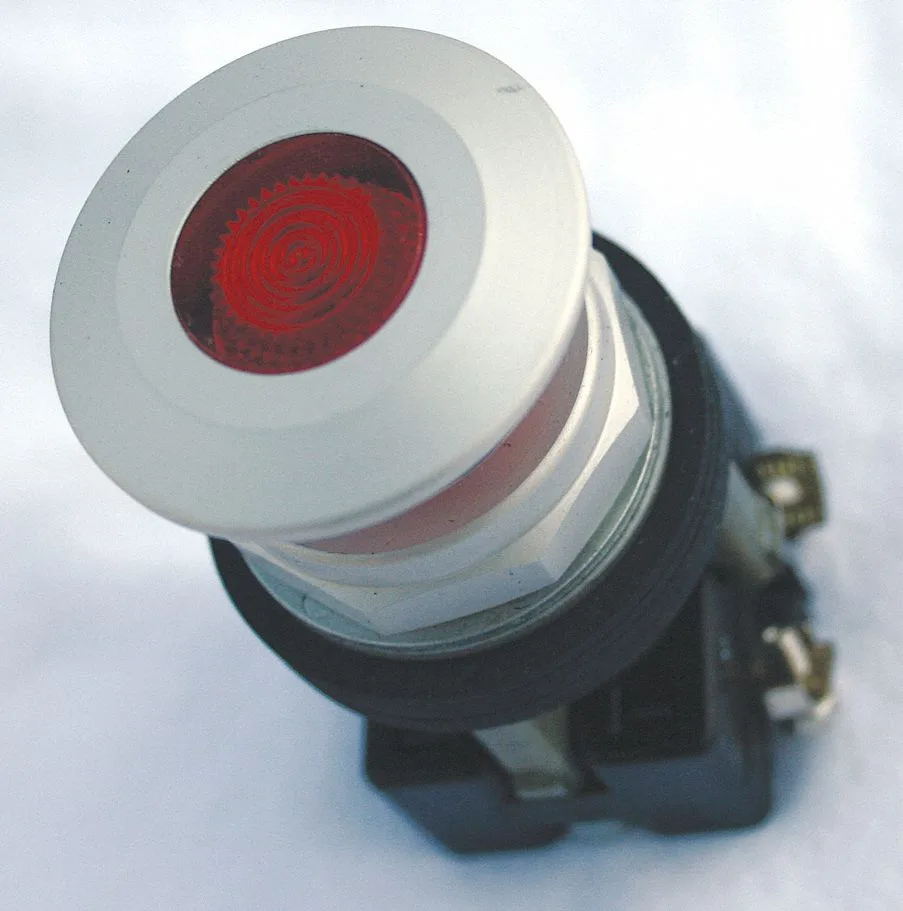

Red 30 mm illuminated mushroom push button with metal bezel

Eaton

Eaton HT8FBRF7 30 mm illuminated push button operator red

SKU CH-W3JW-AMSXS

A 30 mm red mushroom-head push button operator, maintained action, metal bezel with plastic head, IP65 and NEMA 12, 13, 3, 3R, 4, 4X rated, includes lamp and suits Allen-Bradley panels

  • TypeIndustrial Electrical Controls & Automation
  • Size30 mm
  • 30 mm mushroom head for easy emergency actuation
  • Red illuminated lens gives clear status indication at a glance
  • NEMA 12, 13, 3, 3R, 4, 4X ratings suit harsh indoor and outdoor environments
  • IP65 ingress protection resists dust and water jets
  • Metal bezel with plastic head combines durability and corrosion resistance

30 mm red mushroom-head push button

This Eaton illuminated push button operator fits a 30 mm panel cut-out and presents a 40 mm red mushroom head for emergency-stop or heavy-duty control stations. The metal bezel and plastic head combine industrial durability with clear visual status, suited for machine builders and maintenance teams specifying NEMA-rated components.

NEMA 12, 13, 3, 3R, 4, 4X and IP65 sealing

The operator withstands dust, water jets and oil-laden atmospheres defined by the listed NEMA and IP65 ratings, making it suitable for wash-down areas and outdoor enclosures. It is not intended for applications requiring submersible or hazardous-location certifications beyond these ratings.

Allen-Bradley compatible mounting

The device includes a lamp and matches Allen-Bradley mounting dimensions, allowing direct replacement in legacy panels without re-drilling. Buyers using other mounting standards or requiring a momentary action instead of maintained operation will need a different operator.

Highlights

  • 30 mm mushroom head for easy emergency actuation
  • Red illuminated lens gives clear status indication at a glance
  • NEMA 12, 13, 3, 3R, 4, 4X ratings suit harsh indoor and outdoor environments
  • IP65 ingress protection resists dust and water jets
  • Metal bezel with plastic head combines durability and corrosion resistance

Specifications

BrandEATON
TypeIndustrial Electrical Controls & Automation
Size30 mm

Questions about this item

Will this 30 mm mushroom head fit the existing 40 mm cut-out on my panel?

The operator is 30 mm overall but uses a 40 mm mushroom head, so check your panel cut-out dimensions against the 30 mm mounting spec before installing.

How can I verify the red illumination is functioning once wired?

The unit includes a lamp; apply the rated control voltage and confirm the red mushroom head lights steadily when the maintained contact is engaged.

Does the package contain the contact block or only the illuminated operator?

The supplied hardware is the illuminated push button operator with lamp; contact blocks and any legend plates are sold separately.
