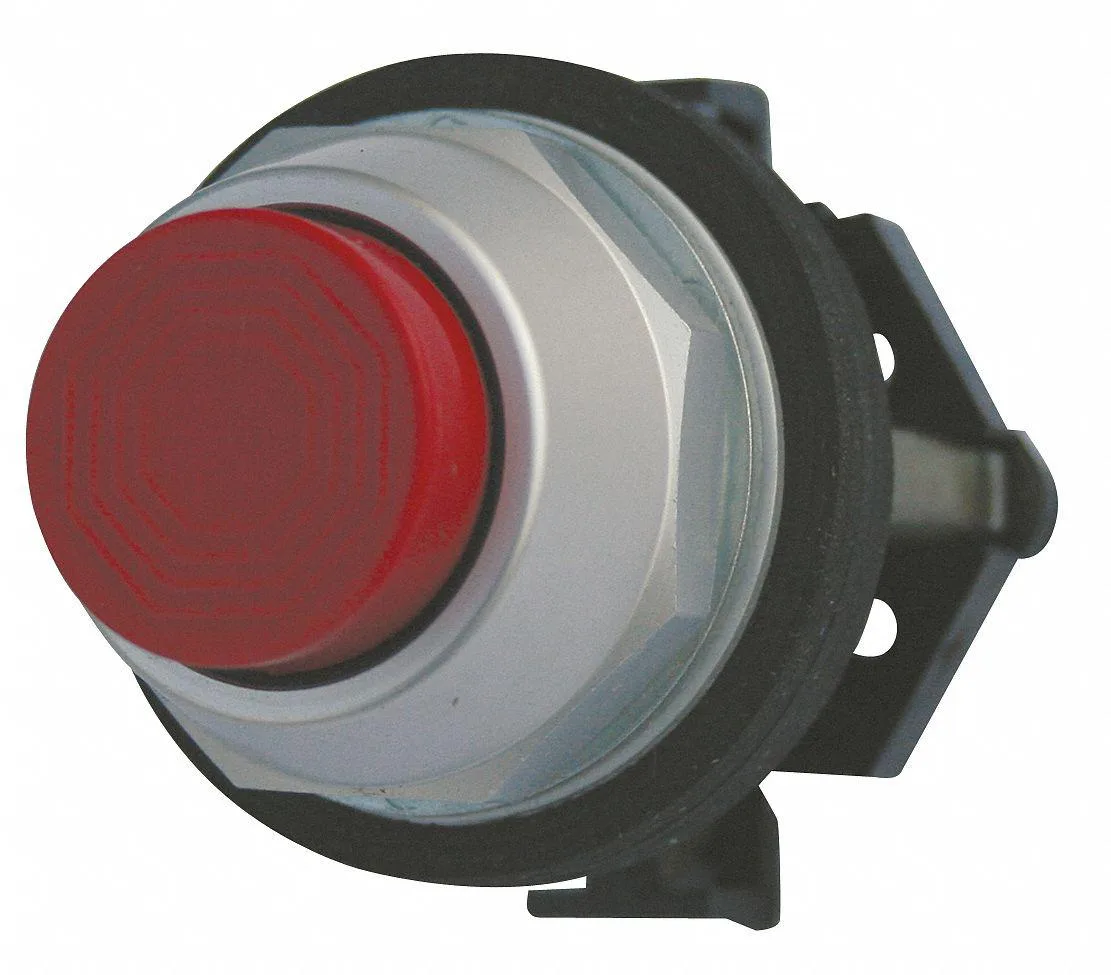

Red 30 mm extended push button with chrome bezel

Eaton

Eaton HT8ABR Extended Push Button 30 mm Red

SKU CH-F72N-9TE12

Extended 30 mm momentary push button with metal construction, plastic head, chrome bezel, NEMA 1, 2, 3, 3R, 4, 4X, 12, 13 and IP66 ratings

  • TypeIndustrial Electrical Controls & Automation
  • Size30 mm
  • 30 mm extended actuator for easy operation
  • Momentary action returns automatically after press
  • IP66 and multiple NEMA ratings seal against dust and water
  • Metal body with plastic head resists industrial wear
  • CE, CSA and UL listed for compliant installations

Extended 30 mm Push Button

This Eaton HT8ABR is a 30 mm momentary push button with an extended red plastic head. It fits panels that accept a 30 mm mounting cut-out and is rated for industrial control panels. The chrome bezel and metal base suit harsh environments where operators need a durable, visible actuator.

NEMA and IP Environmental Ratings

The operator carries NEMA 1, 2, 3, 3R, 4, 4X, 12 and 13 ratings together with an IP66 ingress protection rating. These certifications confirm resistance to dust, water jets and corrosive atmospheres in normal indoor or outdoor use. No noise or power-draw data applies to this passive mechanical component.

Allen Bradley Compatible Mounting

The key specification is Allen Bradley compatibility, which determines whether the button matches the mounting pattern and electrical contact blocks of that system. Buyers using other contact-block families or non-standard cut-outs should verify fitment before ordering.

Highlights

  • 30 mm extended actuator for easy operation
  • Momentary action returns automatically after press
  • IP66 and multiple NEMA ratings seal against dust and water
  • Metal body with plastic head resists industrial wear
  • CE, CSA and UL listed for compliant installations

Specifications

BrandEATON
TypeIndustrial Electrical Controls & Automation
Size30 mm

Questions about this item

How do I mount the 30 mm extended push button and what step is often missed?

Drill a 30 mm panel cut-out, insert the operator, and tighten the locking nut to the specified torque — the step most installers skip is verifying the gasket seats evenly to maintain the IP66 seal.

What part will need replacement after extended service?

The red plastic head and internal contacts are the wear items; the metal bezel and chrome finish typically outlast the button cap in high-cycle applications.

Which environmental limit is reached first during continuous operation?

The NEMA 4X and IP66 ratings define the ingress limit; sustained exposure beyond those pressures or temperatures will breach the seal before the mechanical life ends.
