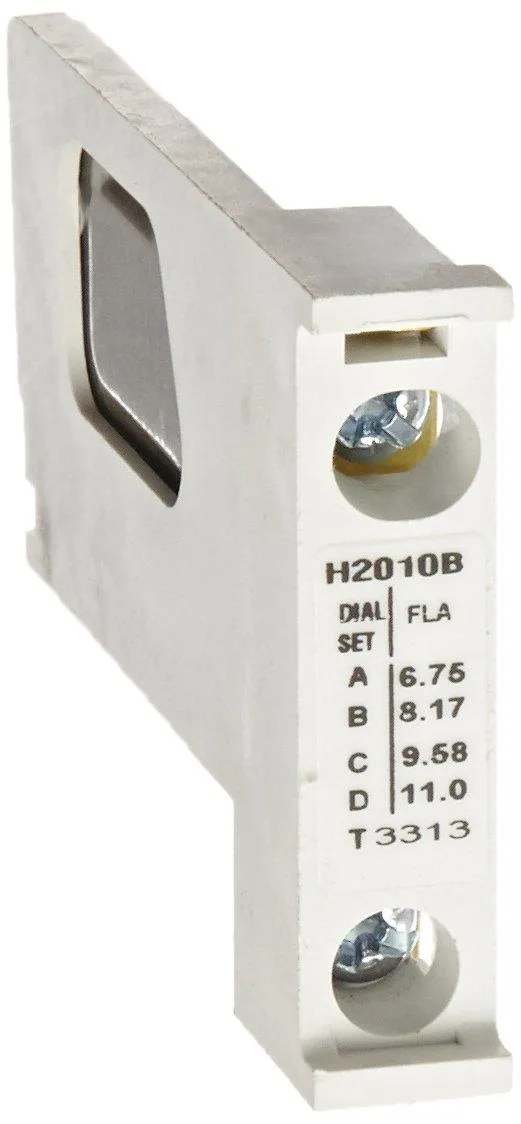

Transparent Eaton thermal overload unit, pack of three

Eaton

Eaton H2010B-3 Thermal Unit 6.75 to 11 A PK3

SKU CH-S0T1-GCHFX

Thermal overload unit rated 6.75 to 11 A with Trip Class 20 protection for NEMA sizes 0, 00, 1, 2, 5, 6, 7, 8 and Freedom series frames G, H, J, K, supplied in a pack of three

  • TypeIndustrial Electrical Controls & Automation
  • ColorTransparent
  • Trip Class 20 provides reliable overload protection
  • Full-load current range 6.75 to 11 A covers multiple motor sizes
  • Compatible with NEMA sizes 0, 00, 1, 2, 5, 6, 7, 8
  • Fits Series Freedom frames G, H, J, K
  • Pack of three units simplifies stock management

Eaton H2010B-3 Thermal Unit

The Eaton H2010B-3 is a thermal overload protection unit designed for industrial motor control applications. It covers a full load current range of 6.75 to 11 A and carries a Trip Class 20 rating. The unit is compatible with Series Freedom starters in Frame Sizes G, H, J and K, as well as NEMA Sizes 0, 00, 1, 2, 5, 6, 7 and 8. It is supplied as a pack of three units.

Electrical maintenance teams and panel builders

This product suits electrical maintenance teams and panel builders who need replacement or spare thermal units for existing Series Freedom starters within the specified current range. It is not intended for buyers who require electronic overload relays with adjustable settings or communication capabilities. Installers working with non-compatible starter series or frame sizes should look at alternative protection devices.

Current range and trip class capacity

The unit comfortably handles motor loads drawing between 6.75 and 11 amperes, providing Class 20 thermal trip characteristics for general-purpose overload protection. It runs out for applications demanding a current setting outside this window or for systems requiring faster Trip Class 10 response times. The pack quantity of three supports multi-starter panels or spares inventory.

Highlights

  • Trip Class 20 provides reliable overload protection
  • Full-load current range 6.75 to 11 A covers multiple motor sizes
  • Compatible with NEMA sizes 0, 00, 1, 2, 5, 6, 7, 8
  • Fits Series Freedom frames G, H, J, K
  • Pack of three units simplifies stock management

Specifications

BrandEaton
TypeIndustrial Electrical Controls & Automation
ColorTransparent

Questions about this item

Which Eaton contactor series and frame sizes accept the H2010B-3 thermal unit?

The H2010B-3 is compatible with the Freedom series and frame sizes G, H, J and K.

Can the 6.75 to 11 A trip range protect an older NEMA Size 00 starter?

Yes, the unit covers NEMA sizes 00, 0, 1, 2, 5, 6, 7 and 8, so it fits a Size 00 starter.

How can I verify the thermal unit is operating correctly after installation?

Apply a load within the 6.75 to 11 A range; the Trip Class 20 thermal element should open the circuit on sustained overload.
