Eaton

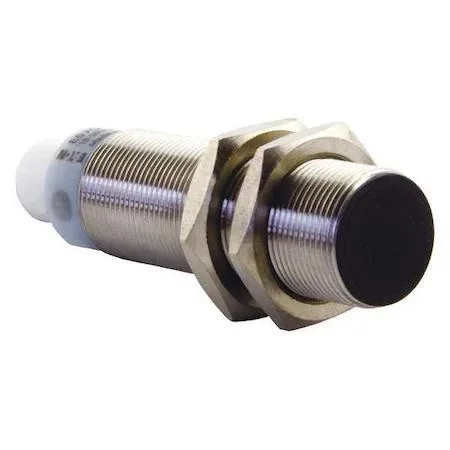

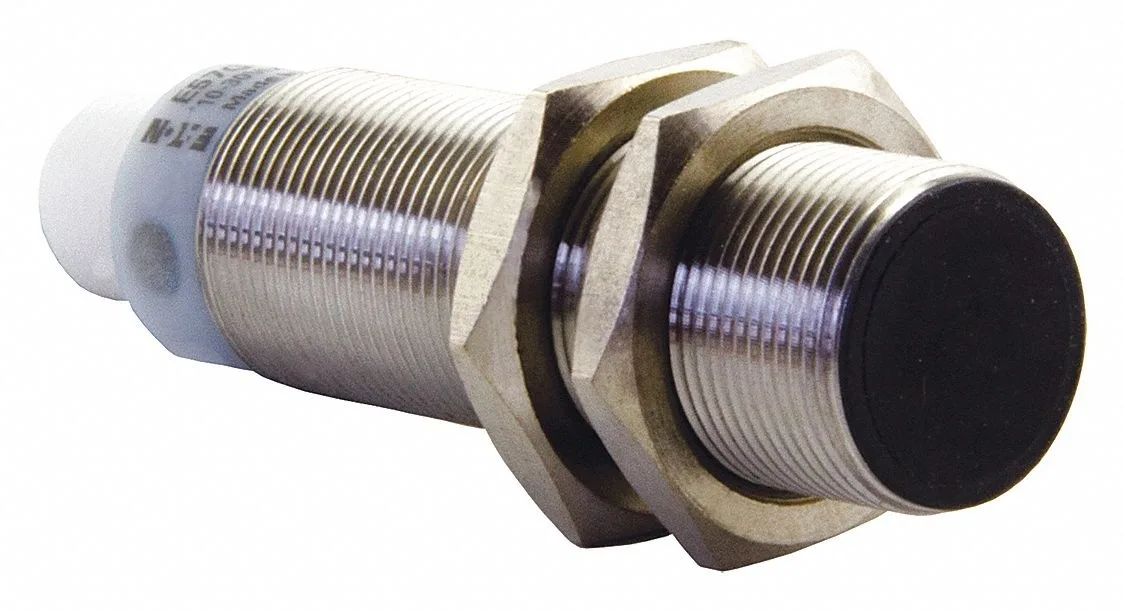

Eaton E57G-18UPN8-Q inductive proximity sensor 18 mm
Detects metal objects up to 8 mm away using an 18 mm stainless-steel barrel with PNP output and IP67 sealing
- Detects metal targets up to 8 mm away
- Operates reliably from 10 to 30 V DC
- IP67 and NEMA 4X ratings resist dust and water
- Stainless-steel housing withstands -13 °F to 158 °F
- 3-wire PNP output with 4-pin micro DC connector
18 mm inductive proximity sensor
The Eaton E57G-18UPN8-Q is an unshielded cylindrical sensor designed for industrial automation tasks. It detects metallic targets at distances up to 8 mm using a 3-wire PNP output that switches normally open. The 4-pin micro DC connector simplifies installation on machines and conveyors.
Sustained operation within wide voltage
The unit operates continuously from 10 to 30 V DC while drawing a maximum load of 100 mA. Its stainless-steel housing meets NEMA 4X and IP67 ratings, resisting wash-down and immersion. An operating frequency of 1,200 Hz supports repeated detection cycles without thermal derating across a span of -13 to 158 degrees F.
Replaces older limit switches and smaller sensors
The sensor upgrades mechanical limit switches that wear out or smaller-diameter sensors that lack range. The jump is worthwhile when an application needs non-contact detection at 8 mm with a 69 mm body that fits existing 18 mm mounting holes. It is not suited for applications requiring shielded mounting or analogue output.
Highlights
- Detects metal targets up to 8 mm away
- Operates reliably from 10 to 30 V DC
- IP67 and NEMA 4X ratings resist dust and water
- Stainless-steel housing withstands -13 °F to 158 °F
- 3-wire PNP output with 4-pin micro DC connector
Specifications
| Brand | EATON |
|---|
