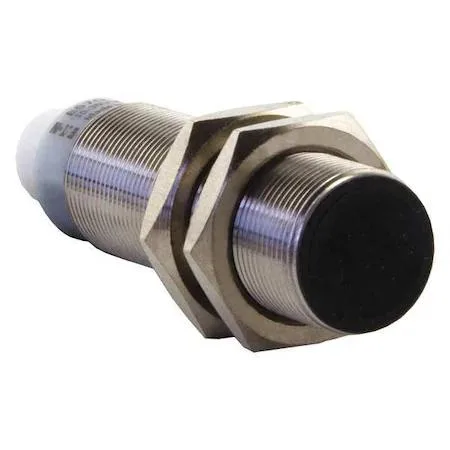

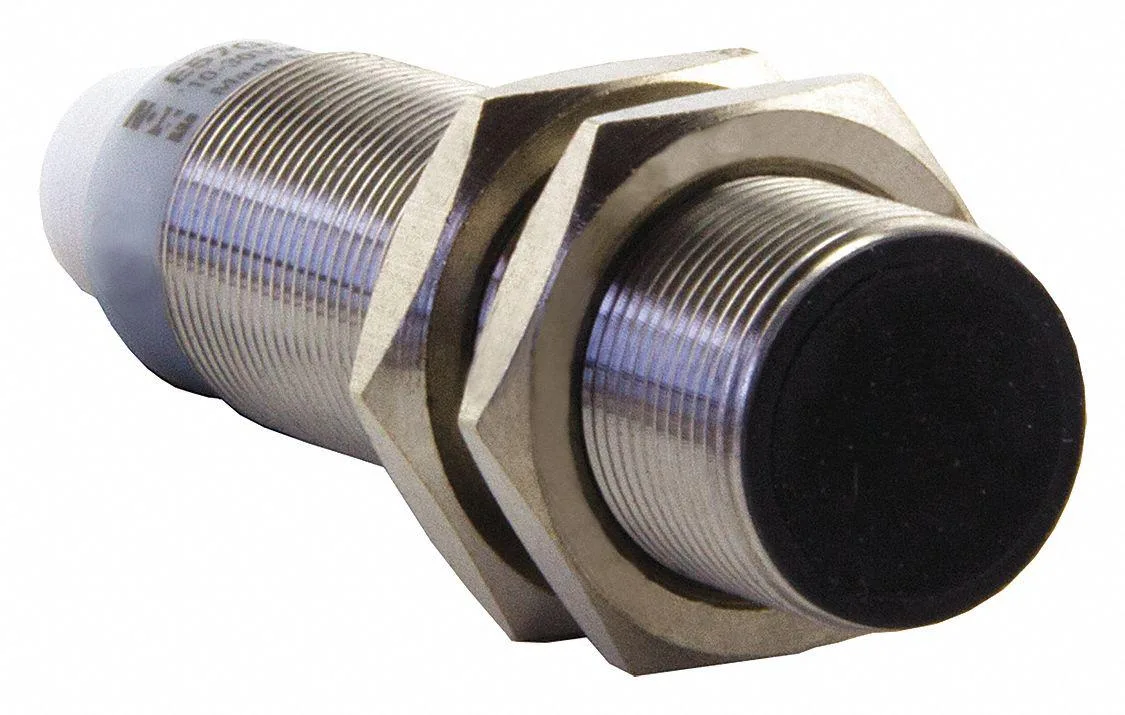

Cylindrical stainless steel inductive proximity sensor, 12 mm diameter, 69 mm length, 4-pin micro connector

Eaton

EATON E57G-12SPC2-Q Inductive Proximity Sensor 12 mm

SKU CH-9FHF-VEYWB

12 mm shielded inductive sensor detects metal at 2 mm range, runs on 10 to 30 V DC with PNP NC output, IP67 stainless housing, 69 mm long, -13 to 158 °F

  • 12 mm stainless-steel body fits tight machine spaces
  • 2 mm sensing range detects metal targets reliably
  • 10 to 30 V DC supply works with standard controls
  • IP67 and NEMA 4X ratings resist water and dust
  • 13 °F to 158 °F operating range handles harsh environments

E57G-12SPC2-Q 12 mm inductive sensor

The EATON E57G-12SPC2-Q is a cylindrical inductive proximity sensor with a 12 mm stainless-steel barrel. It operates on 10 to 30 V DC and uses a three-wire PNP output that is normally closed. A 4-pin micro connector provides the electrical interface. The sensing face is shielded and rated for a maximum detecting distance of 2 mm.

Suited for metal detection in tight machine spaces

This sensor suits automated equipment that must sense ferrous targets at close range in wet or dusty environments. The IP67 and NEMA 4X ratings allow direct exposure to water jets and coolant. Builders who need longer sensing ranges, normally open output logic, or AC supply voltage should look at alternative models.

Stable switching at 2 000 Hz under continuous

The 2 000 Hz operating frequency supports rapid, repetitive actuation on high-speed conveyors or indexing tables. Maximum load current is 100 mA, so the output remains consistent during extended duty cycles. Operating temperature spans -13 to 158 degrees F, maintaining performance through cold starts and prolonged heat soak.

Highlights

  • 12 mm stainless-steel body fits tight machine spaces
  • 2 mm sensing range detects metal targets reliably
  • 10 to 30 V DC supply works with standard controls
  • IP67 and NEMA 4X ratings resist water and dust
  • 13 °F to 158 °F operating range handles harsh environments

Specifications

BrandEATON

Questions about this item

What power supply voltage range does the EATON E57G-12SPC2-Q sensor require?

The sensor operates on a 10 to 30V DC power supply, so any compatible source within that range will work.

Will the 12 mm stainless-steel barrel fit the same mounting holes as older 12 mm sensors?

Yes, the 12 mm diameter matches the standard cylindrical form factor used by many legacy inductive sensors.

How can I verify the sensor is detecting correctly after installation?

The NC output opens when metal enters the 2 mm sensing zone; watch the PLC input LED toggle at up to 2,000 Hz.
