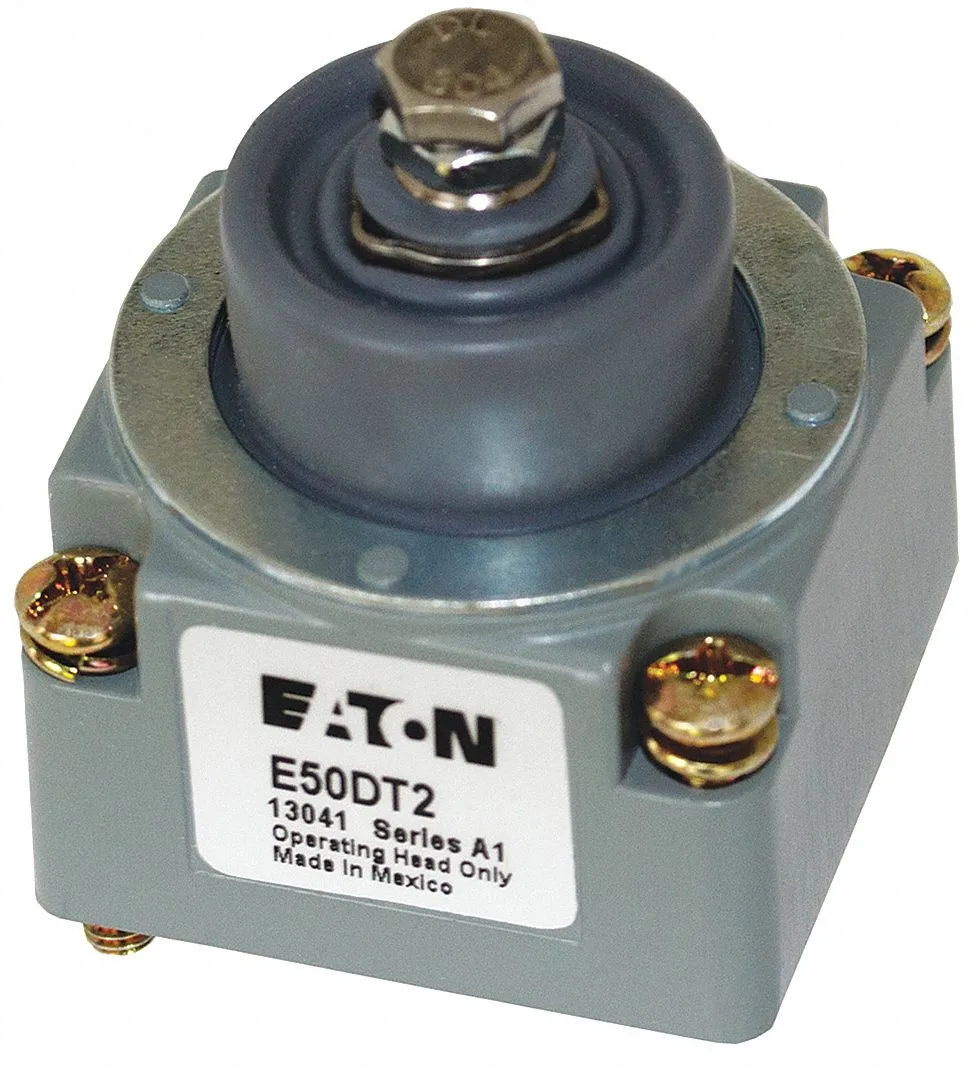

Eaton E50DT2 limit switch head with adjustable top push-button actuator, metal body

Eaton

Eaton E50DT2 Limit Switch Head Adjustable Push Button Top Actuator

SKU CH-DT2X-3XVP4

Adjustable plunger limit-switch head rated 10 A at 600 V AC with IP67 and NEMA 1, 2, 4, 4X, 6P, 12, 13 protection

  • TypeIndustrial Electrical Controls & Automation
  • Adjustable actuator fine-tunes travel to 0.04 in
  • Top-mounted plunger delivers 2.2 N operating force
  • NEMA 1, 2, 4, 4X, 6P, 12, 13 enclosures suit harsh environments
  • IP67 rating blocks dust and water ingress
  • UL, CSA and RoHS certified for 600 V AC, 10 A circuits

Limit Switch Head for Industrial Controls

The Eaton E50DT2 is a top-actuated limit switch head built for industrial electrical controls and automation systems. It mounts to an E50SA switch body and provides reliable position sensing in machinery, conveyors and safety circuits where a compact plunger actuator is required.

Adjustable Plunger with 0.93 in Actuator Length

The single specification that determines fit is the adjustable plunger actuator measuring 0.93 in length with a top-mounted movement direction. Operating travel is 0.04 in, reset travel is 0.02 in and total travel is 0.28 in, so the actuator must match the mechanical stroke and mounting geometry of the application.

Rated for Harsh Environments at 10 A 600 V AC

The head carries NEMA 1, 2, 4, 4X, 6P, 12, 13 and IP67 ratings, making it suitable for wet, dusty and wash-down conditions. It operates from 14 to 221 degrees F with an operating force of 2.2 N and switches up to 10 A at 600 V AC, meeting CSA, RoHS and UL listed standards.

Highlights

  • Adjustable actuator fine-tunes travel to 0.04 in
  • Top-mounted plunger delivers 2.2 N operating force
  • NEMA 1, 2, 4, 4X, 6P, 12, 13 enclosures suit harsh environments
  • IP67 rating blocks dust and water ingress
  • UL, CSA and RoHS certified for 600 V AC, 10 A circuits

Specifications

BrandEATON
TypeIndustrial Electrical Controls & Automation

Questions about this item

What does the 600V AC rating mean for everyday wiring?

The head is rated for circuits up to 600 volts AC, so it can be used on standard industrial control voltages without exceeding its insulation limits.

Which NEMA and IP ratings apply to the enclosure?

The switch head carries NEMA 1, 2, 4, 4X, 6P, 12 and 13 ratings plus IP67, giving protection against dust, water jets and temporary immersion.

What mounting space does the 0.93 in plunger need?

The top-mounted plunger extends 0.93 inches above the head and requires 0.04 inches of operating travel plus 0.28 inches total travel clearance.
