Eaton
Eaton E50DM1 Cutler-Hammer Limit Switch Head, Rotary Lever, Side, .63 in
Rotary lever limit switch head with .63 in actuator, 600 V AC, 10 A, IP67 and NEMA 1, 2, 4, 4X, 6P, 12, 13 rated, operating 14 to 200 °F
- Reliable switching up to 600V AC with 10 A rating
- Durable operation from 14 to 200 °F in harsh environments
- Flexible CW and CCW movement with 50° operating travel
- Sealed to NEMA 1, 12, 13, 2, 4, 4X, 6P and IP67 standards
- Compatible with E50SA bodies for easy integration

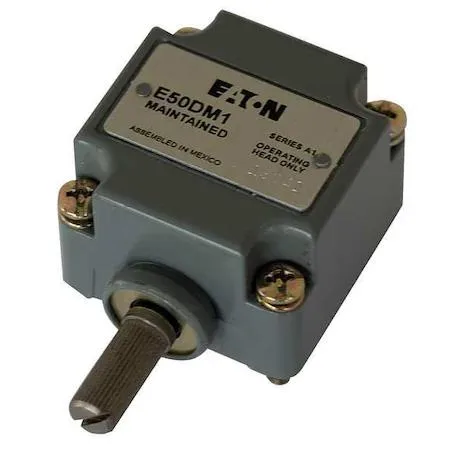

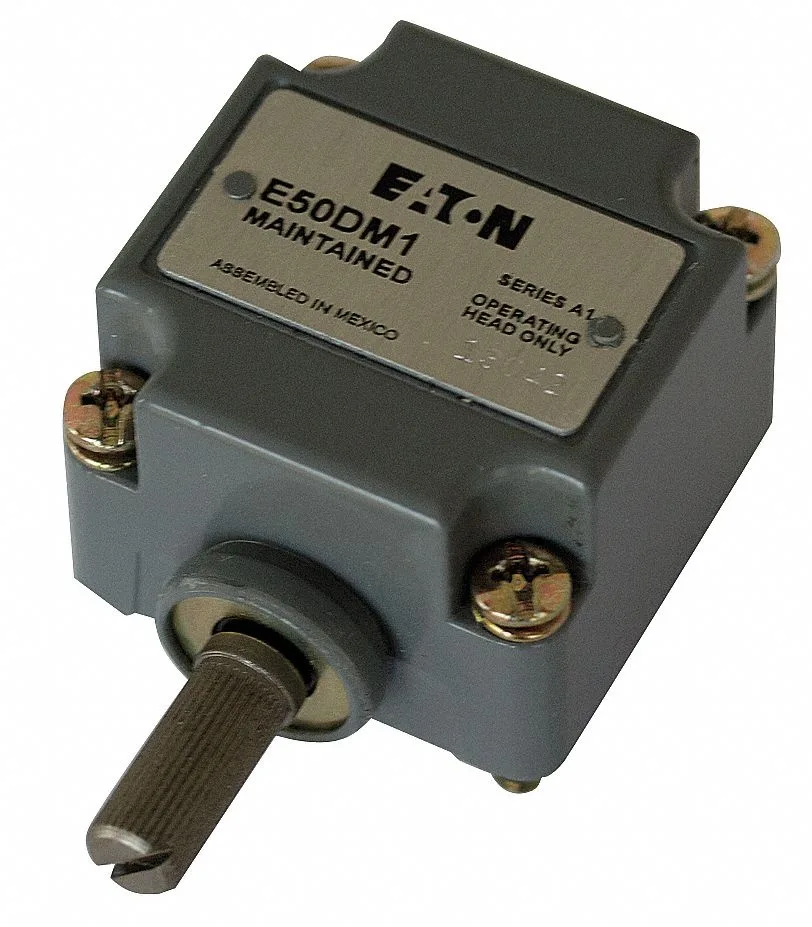

Eaton E50DM1 Limit Switch Head
The Eaton E50DM1 is a rotary lever limit switch head designed for side actuation in industrial control circuits. It suits machine builders and maintenance engineers who need reliable position sensing on conveyors, lifts or automated equipment.
Upgrade from worn or fixed-plunger heads
This head replaces worn rotary or plunger-style heads on compatible E50SA bodies when side-mounted lever actuation is required. The jump is worth it when the application demands 50 degrees of operating travel in both clockwise and counter-clockwise directions with a 0.63 in lever.
Sustained operation in harsh environments
Rated for 10 A at 600 V AC, the switch operates from 14 to 200 degrees F and meets NEMA 1, 2, 4, 4X, 6P, 12, 13 plus IP67. An operating force of 2.2 N and total travel of 90 degrees maintain consistent contact closure during continuous cycling.
Highlights
- Reliable switching up to 600V AC with 10 A rating
- Durable operation from 14 to 200 °F in harsh environments
- Flexible CW and CCW movement with 50° operating travel
- Sealed to NEMA 1, 12, 13, 2, 4, 4X, 6P and IP67 standards
- Compatible with E50SA bodies for easy integration
Specifications
| Brand | EATON |
|---|
Questions about this item
What side mounting space does the .63 in rotary lever need?
The side-mounted rotary lever extends .63 in from the head and requires clearance for 90 degrees total travel, 50 degrees operating travel each way, and CW/CCW movement.
How is the E50DM1 head installed on an E50SA body, and what step is often missed?
Mount the head onto the compatible E50SA switch body, then set the lever for CW or CCW operation; the step often missed is verifying the 50-degree reset travel matches the application.
Which seals and ratings should be checked for maintenance on this NEMA 1, 2, 4, 4X, 6P, 12, 13 and IP67 head?
Inspect the shaft seal and enclosure gaskets periodically; the NEMA 1, 2, 4, 4X, 6P, 12, 13 and IP67 ratings depend on intact seals to maintain ingress protection.
