Eaton E50AR1 Heavy Duty Limit Switch Rotary 1NC/1NO 10A 600V
Heavy-duty rotary limit switch with 1NC/1NO contacts rated 10A at 600V AC and NEMA 3, 3S, 4X, 6P enclosure
- Heavy-duty plug-in switch rated 10 A at 600 V AC
- Rotary side actuation with 1.54 in lever travel
- 1NC/1NO contact form gives open and closed circuits
- NEMA 3, 3S, 4X, 6P enclosure resists water and dust
- Compact 3.13 × 1.54 × 1.78 in body fits tight panels
Industrial Rotary Limit Switch

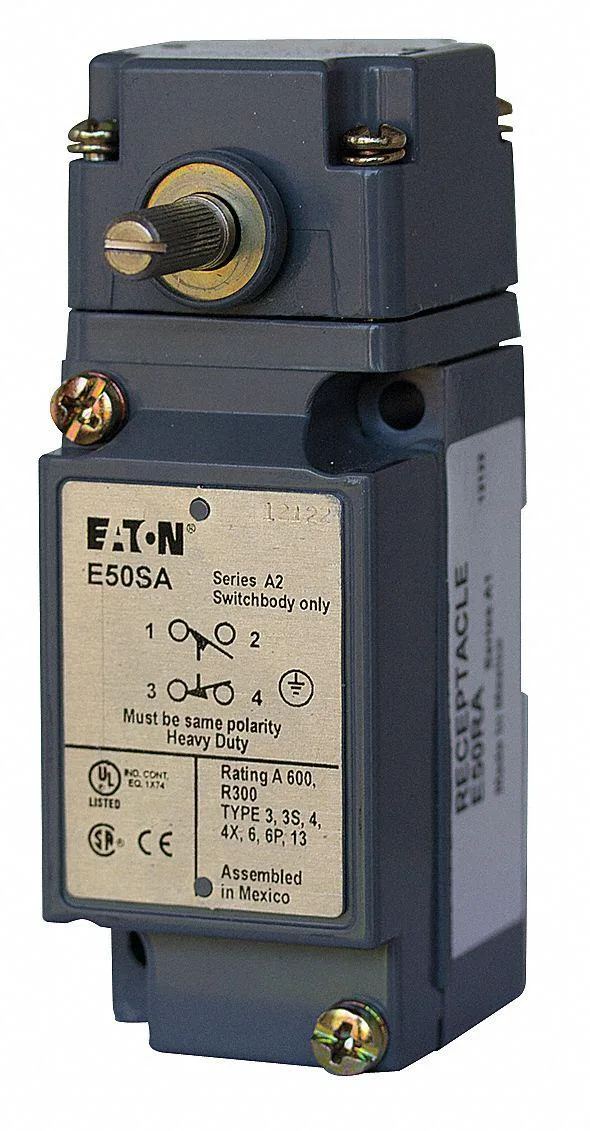

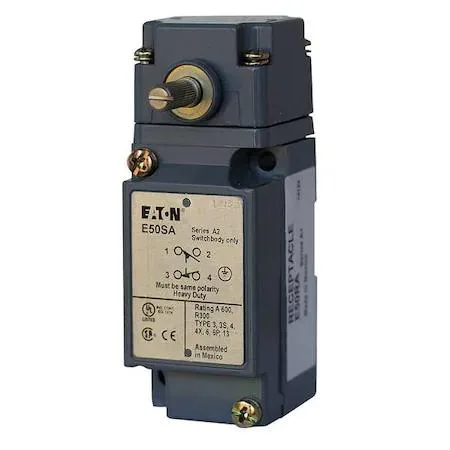

The Eaton E50AR1 is a heavy-duty plug-in limit switch built for machinery that requires reliable position sensing. Its side-mounted rotary actuator accepts a 1.54 in lever to detect mechanical movement in automated equipment.
NEMA 3, 3S, 4X, 6P Environmental Protection
The switch body meets NEMA 3, 3S, 4X and 6P ratings, providing protection against rain, sleet, windblown dust, hose-directed water and temporary submersion. It is not rated for DC loads, so use is limited to AC control circuits only.
10A 600V AC Contact Capacity
The snap-action contacts are rated 10A at 600V AC with a 1NC/1NO configuration for versatile control wiring. The standard body measures 3.13 in high, 1.54 in wide and 1.78 in deep, fitting typical enclosure layouts. Builders needing DC switching or a pre-installed lever must look elsewhere.
Highlights
- Heavy-duty plug-in switch rated 10 A at 600 V AC
- Rotary side actuation with 1.54 in lever travel
- 1NC/1NO contact form gives open and closed circuits
- NEMA 3, 3S, 4X, 6P enclosure resists water and dust
- Compact 3.13 × 1.54 × 1.78 in body fits tight panels
Specifications
| Brand | EATON |
|---|
Questions about this item
Should I pick a version with a lever or the no-lever rotary model?
This E50AR1 ships without a lever; the rotary actuator accepts standard E50 levers that you mount separately to match the machine travel.
What does the 10 A at 600 V rating mean when the switch is installed?
It guarantees the contacts can carry 10 amperes on a 600 volt AC circuit; DC loads are not rated.
How does the NEMA 3, 3S, 4X, 6P rating limit where I can mount the switch?
The enclosure resists rain, sleet, hose-directed water and temporary submersion, so it suits outdoor or wash-down locations.
