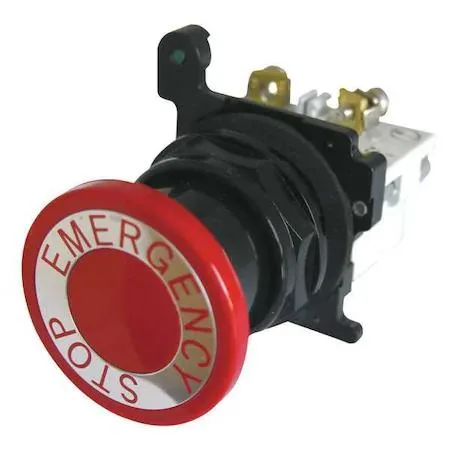

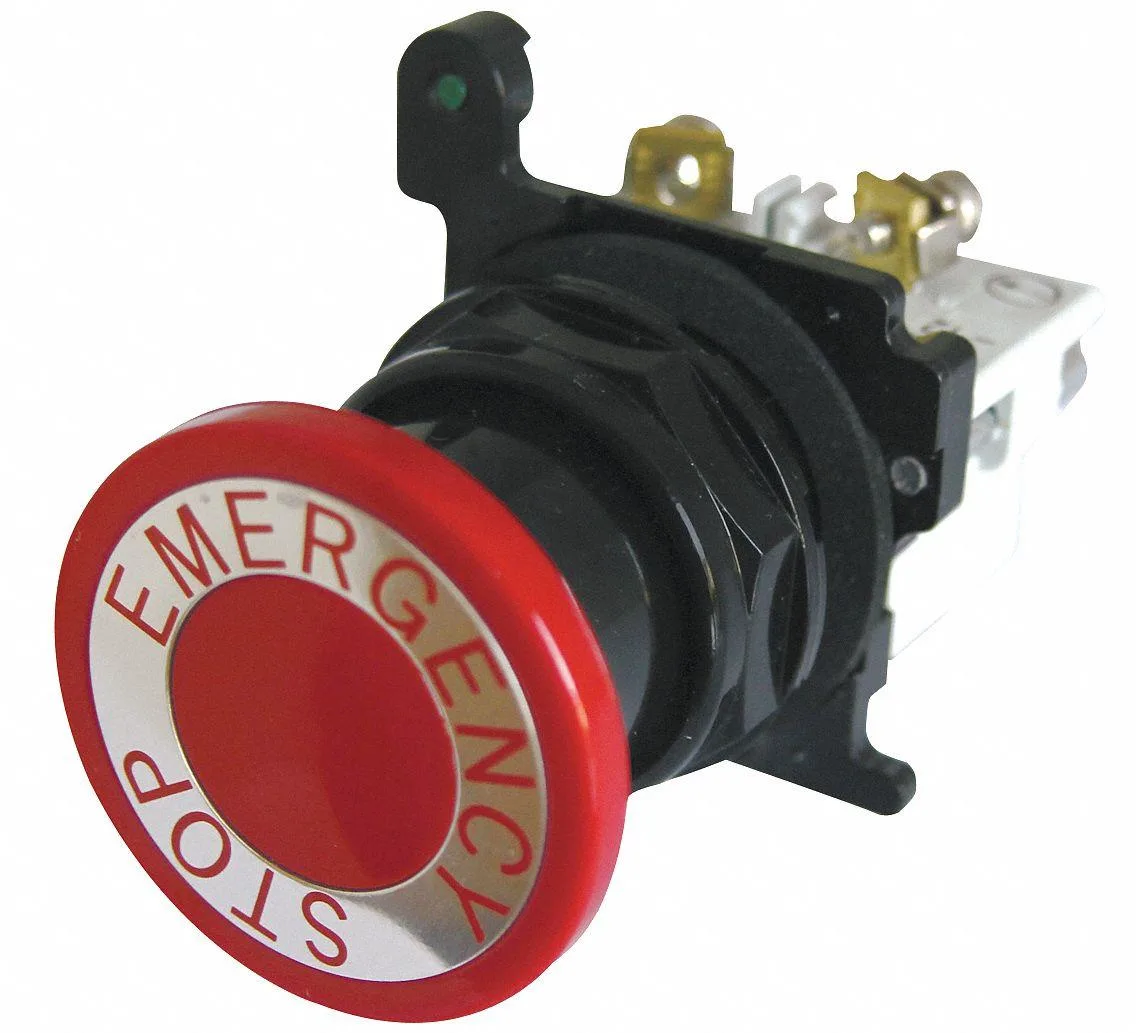

Red 30 mm mushroom-head emergency stop push button with epoxy-coated metal bezel

Eaton

Eaton E34GDBC2N8-1X 30 mm Red Emergency Stop Push Button

SKU CH-ZCQD-6F40Y

A 30 mm red metal emergency-stop button with 1NO/1NC contacts rated at 10A 600V AC, IP65 and NEMA 4X protection

  • Engine BrandEATON
  • Engine Size30 mm
  • Maintained emergency-stop action prevents accidental reset
  • 40 mm red mushroom head gives clear visual identification
  • IP65 and NEMA 4X ratings protect against dust and water jets
  • 10 A at 600 V AC contact rating handles heavy control circuits
  • Factory-assembled screw-clamp terminals speed up installation

Emergency Stop Button for Industrial Panels

The Eaton E34GDBC2N8-1X is a 30 mm non-illuminated push button with a red epoxy-coated metal mushroom head. It is designed for emergency stop functions on control panels and machinery. The unit carries a legend marked Emergency Stop in red on a silver background. It mounts in a standard 30 mm cut-out and is factory assembled for immediate installation.

Maintained Action with Screw Clamp Terminals

The operator uses a maintained action that stays in the pressed position until deliberately reset. A single contact block provides 1NO and 1NC circuits rated at 10A at 600V AC. Screw clamp terminals accept field wiring without special tools. The zinc die-cast bezel and epoxy coating resist corrosion in harsh environments.

IP65 and NEMA 4X Rated for Wash-Down Areas

The head assembly meets IP65 and NEMA ratings 12, 13, 3, 3R, 4, and 4X for protection against dust, water jets and corrosion. This makes the device suitable for food-processing equipment and outdoor panels where regular wash-downs occur. It is not intended for applications requiring illuminated status indication or momentary push-button operation.

Highlights

  • Maintained emergency-stop action prevents accidental reset
  • 40 mm red mushroom head gives clear visual identification
  • IP65 and NEMA 4X ratings protect against dust and water jets
  • 10 A at 600 V AC contact rating handles heavy control circuits
  • Factory-assembled screw-clamp terminals speed up installation

Specifications

Engine BrandEATON
Engine Size30 mm

Questions about this item

Does the 30 mm mushroom head generate any heat or noise during continuous operation?

The push button is a passive mechanical switch with no moving electrical parts, so it produces no heat and makes no audible noise when pressed or held.

What mounting hardware or enclosure cut-out is required to install this 30 mm operator?

It fits a standard 30 mm panel cut-out and uses the included screw-clamp terminals for wiring; no separate contact blocks or mounting adapters are needed.

Will the screw-clamp terminals accept the same wire gauges as my older 30 mm push buttons?

The screw-clamp terminals are designed for standard industrial wire sizes used with 30 mm operators, providing a direct replacement for legacy units.
