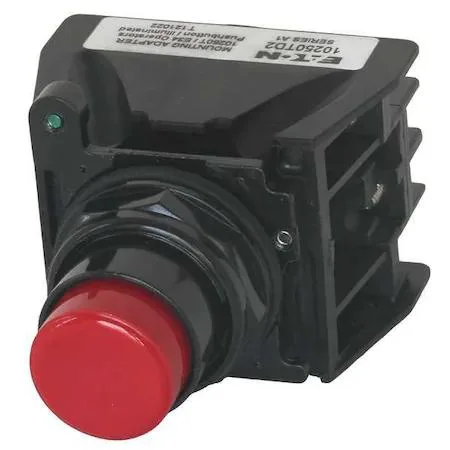

Red 30 mm hazardous-location push button, epoxy-coated metal head and bezel, extended operator, 1NO/1NC contacts

Eaton

Eaton E34EX708R 30 mm hazardous location push button, 1NO/1NC, red

SKU CH-FQHW-MCXCX

A 30 mm hazardous-location push button with 1NO/1NC contacts rated 10 A at 600 V AC and IP65 sealing

  • TypeIndustrial Electrical Controls & Automation
  • 30 mm red operator fits tight panels
  • 1NO/1NC contacts rated 10 A at 600 V AC
  • NEMA 4X and IP65 sealing resists wash-down
  • Factory-sealed body with drainage holes and grounding nibs
  • Certified to UL 505, CSA, CE and FDA 3-A standards

Hazardous-location push button

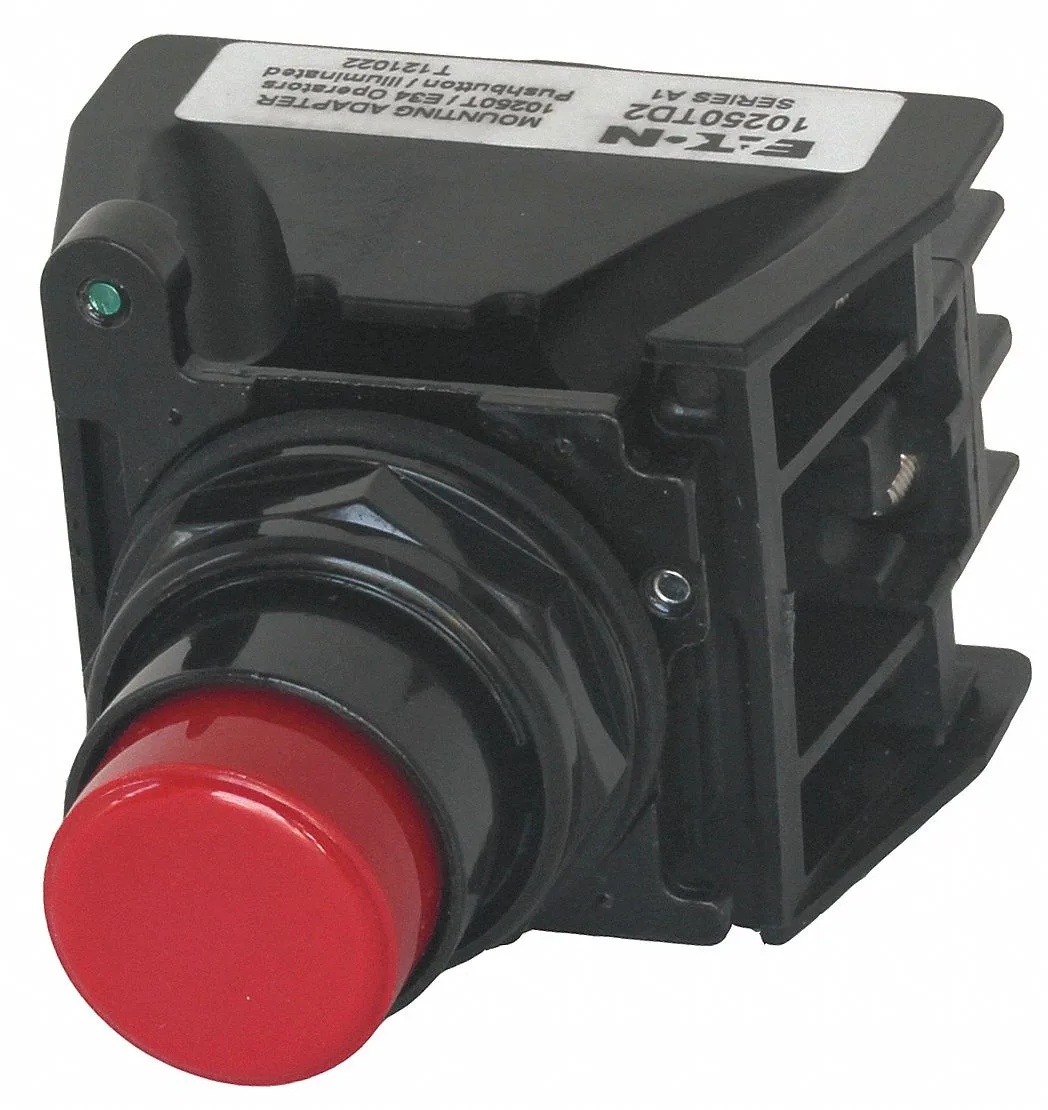

The Eaton E34EX708R is a 30 mm momentary push button built for hazardous and wash-down environments. It carries NEMA 12, 13, 3, 3R, 4, 4X and IP65 ratings, plus CE, CSA, FDA 3-A and UL 505 approvals. The red epoxy-coated metal head and bezel resist chemicals and corrosion. Factory-sealed construction with drainage holes and grounding nibs supports compliance in classified areas.

Contact capacity and limits

The switch provides one normally open and one normally closed contact rated at 10 A at 600 V AC and 2.5 A at 250 V DC. NEMA designations A600 and Q300 define the AC and DC pilot-duty envelopes. Screw-clamp terminals accept solid or stranded wire for secure termination. The single-operator momentary action suits start, stop or jog functions but does not maintain state without external logic.

Panel-mount integration

The 30 mm mounting diameter fits standard industrial cut-outs and the epoxy-coated metal bezel seals against the panel surface. No separate sealing gasket is required because the operator is factory sealed. Grounding nibs on the bezel establish a conductive path to the enclosure, simplifying bonding in metal panels. The extended head profile allows easy actuation with gloved hands while the drainage holes prevent fluid accumulation behind the panel.

Highlights

  • 30 mm red operator fits tight panels
  • 1NO/1NC contacts rated 10 A at 600 V AC
  • NEMA 4X and IP65 sealing resists wash-down
  • Factory-sealed body with drainage holes and grounding nibs
  • Certified to UL 505, CSA, CE and FDA 3-A standards

Specifications

BrandEATON
TypeIndustrial Electrical Controls & Automation

Questions about this item

Will the 30 mm cutout fit the panel I already have drilled for 30 mm operators?

Yes, the 30 mm mounting diameter matches standard 30 mm panel cutouts, so it installs directly into your existing openings.

How can I confirm the contacts are switching correctly after wiring?

Apply control voltage and measure continuity across the 1NO/1NC screw-clamp terminals; the normally open contact should close and the normally closed contact should open when the red extended head is pressed.

Does the box include mounting hardware or do I need to buy a legend plate separately?

The push button ships factory sealed with grounding nibs and drainage holes built in; a legend plate is not included and must be ordered separately if required.
