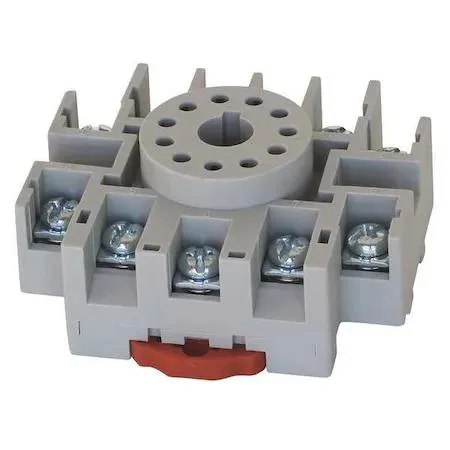

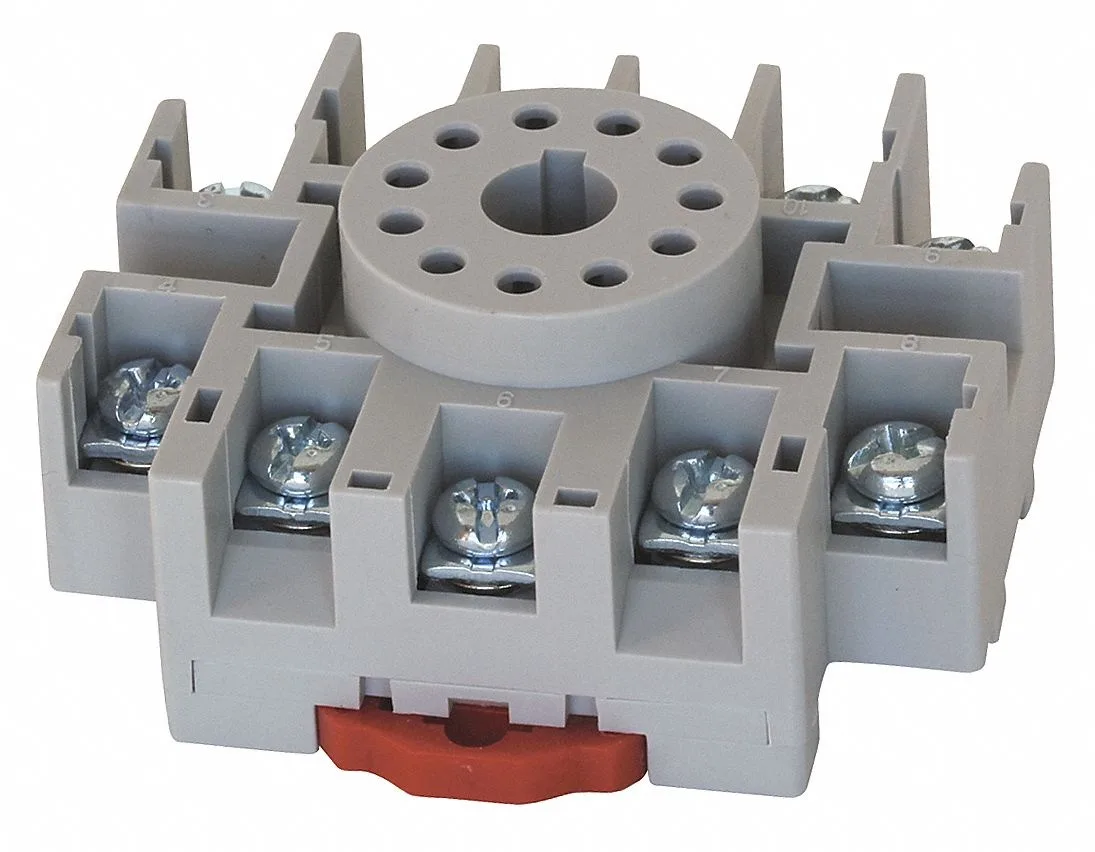

Eaton D3PA3 relay socket, finger safe, octal, 11 pin, 2.16 in
Octal 11-pin relay socket with finger-safe screw-clamp terminals rated 15 A at 600 V AC, DIN-rail mountable
- Finger-safe design prevents accidental contact with live terminals
- 11-pin octal base accepts compatible D3 series relays securely
- 15 A rating at 600 V AC handles demanding control circuits
- DIN rail mounting enables quick panel installation
- Certified to CE, cRUus, CSA, RoHS and UL standards
Eaton D3PA3 11-Pin Relay Socket
This Eaton D3PA3 relay socket accepts 11-pin octal relays from the D3 series. It mounts on standard DIN rail for panel or enclosure installation. The finger-safe design reduces accidental contact with live terminals. Rated for 15 A at 600 V AC and 5 A at 300 V AC with a 3PDT contact form.
Check relay pin count and DIN rail space
Verify that the relay you intend to use has exactly 11 round pins in an octal base pattern. Ensure your DIN rail section can accommodate the socket width of 0.97 in and depth of 1.6 in. Confirm the screw-clamp terminals suit your wire gauge and that the 15 A rating meets the circuit demand. No status indicator is fitted.
White polycarbonate body with screw clamps
The white housing measures 2.12 in high and 2.16 in long, weighing 1.92 oz. Screw-clamp terminals provide secure electrical connections without soldering. DIN rail mounting allows quick installation and removal in crowded panels. Standards include CE, cRUus, CSA, RoHS and UL Listed.
Highlights
- Finger-safe design prevents accidental contact with live terminals
- 11-pin octal base accepts compatible D3 series relays securely
- 15 A rating at 600 V AC handles demanding control circuits
- DIN rail mounting enables quick panel installation
- Certified to CE, cRUus, CSA, RoHS and UL standards
Specifications
| Brand | EATON |
|---|
Questions about this item
Does the Eaton D3PA3 relay socket ship with a relay or do I need to buy a D3 series relay separately?
The socket is sold alone; a compatible D3 series relay must be purchased separately.
Which pin count matches the D3 series relay I plan to use?
The socket has 11 pins and 11 terminals, matching the D3 series relay specification.
What does the 15 A rating mean when the socket is mounted on a DIN rail in a 600 V AC circuit?
It means the screw-clamp contacts are rated to carry 15 A continuously at up to 600 V AC when properly installed.
