Eaton C320SNP22 Auxiliary Contact Block 2NO/2NC 10A 600V AC
Auxiliary contact block adds two normally open and two normally closed contacts rated at 10 A, 600 V AC for side mounting on compatible definite-purpose starters and contactors
- Adds four auxiliary contacts for expanded control circuits
- Two normally open and two normally closed for flexible wiring
- Rated 10 A at 600 V AC for reliable switching
- Side-mount design fits A25, A27, B25, B27, C25 starters and contactors
- New Eaton Cutler-Hammer component ready for installation

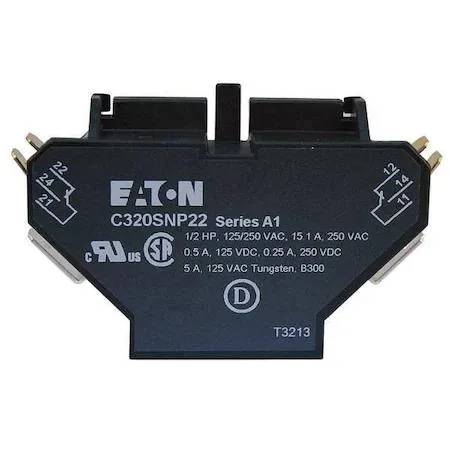

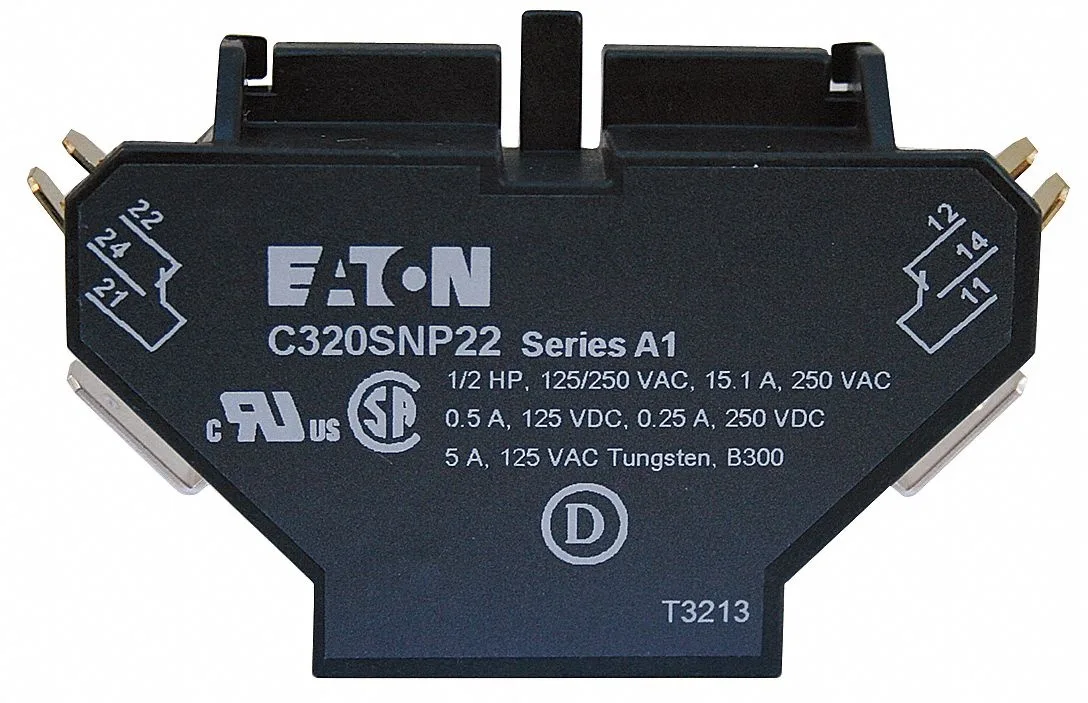

Eaton C320SNP22 Auxiliary Contact Block
The Eaton C320SNP22 is a side-mounted auxiliary contact block designed for definite purpose starters and contactors. It provides four additional contacts rated at 10 A and 600 V AC. The block adds two normally open and two normally closed circuits to compatible control gear.
Suits panels needing extra control circuits
Electricians expanding motor control logic on Series A25, A27, B25, B27 or C25 devices will find this block fits directly. It is not for applications requiring higher current ratings, different voltage classes or front-mount contact arrangements.
Mounts on the side of compatible definite purpose
The block attaches to the side of supported starters and contactors, leaving the front face accessible for other accessories. It draws operating power from the host device coil circuit, so no separate supply wiring is needed.
Highlights
- Adds four auxiliary contacts for expanded control circuits
- Two normally open and two normally closed for flexible wiring
- Rated 10 A at 600 V AC for reliable switching
- Side-mount design fits A25, A27, B25, B27, C25 starters and contactors
- New Eaton Cutler-Hammer component ready for installation
Specifications
| Brand | EATON |
|---|
Questions about this item
Which Eaton definite-purpose starters or contactors does the C320SNP22 auxiliary contact block mount on?
It is compatible with Series A25 and A27 starters, B25 and B27 starters, and C25 contactors.
Can I install this block on an older Eaton starter that is not in the A25, A27, B25, B27 or C25 series?
The block is designed for side mounting on the listed series only; other models are not supported.
After wiring the four contacts, how do I verify the block is operating correctly?
Apply control voltage to the starter coil and confirm the two normally open contacts close and the two normally closed contacts open at 10 A, 600 V AC.
