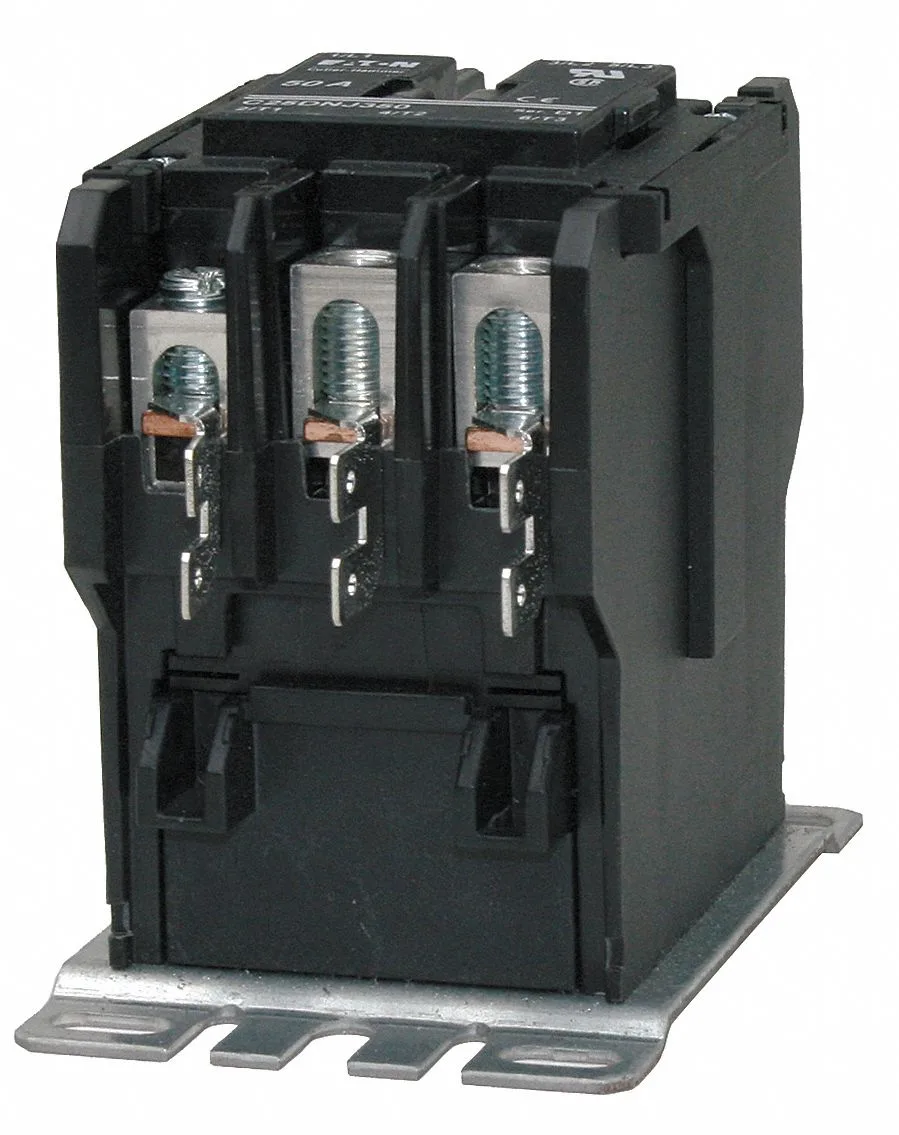

Eaton C25FNF360B 3-pole contactor 208-240V AC 75A
A definite-purpose magnetic contactor with a 75 A resistive rating, 208-240 V AC coil and three poles for motor or lighting loads
- Handles 75 A resistive loads with 3-pole C25 frame
- Coil operates on 208-240 V AC for standard supplies
- Rated 10 hp at 240 V single-phase motor duty
- 60 A inductive rating suits transformer and ballast circuits
- Open-frame design fits panel-mount installations without enclosure

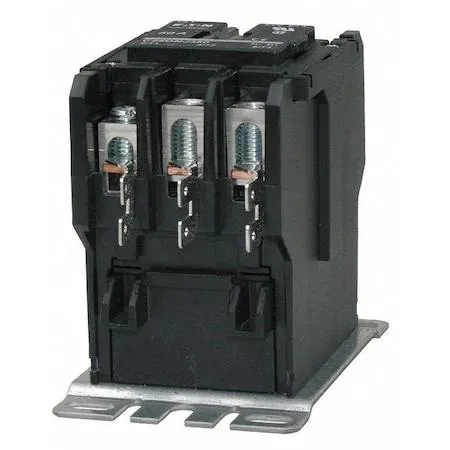

Eaton C25FNF360B 3-pole contactor
The Eaton C25FNF360B is a definite-purpose magnetic contactor built for controlling resistive and inductive loads in commercial and light-industrial equipment. It operates on a 208-240V AC coil and switches three poles, making it suitable for motor-starting and lighting circuits where a compact frame is required.
75 A resistive and 60 A inductive ratings
The contactor carries a full-load resistive rating of 75 A and an inductive rating of 60 A, with single-phase horsepower ratings of 5 hp at 120V AC and 10 hp at 240V AC. These figures define the maximum heating, lighting and motor loads the device can reliably switch without derating.
208-240V AC coil and no enclosure
Verify that your control circuit supplies 208-240V AC to match the coil voltage and that the mounting location provides its own NEMA-rated enclosure, as the unit ships without one. Also confirm the load does not exceed the 75 A resistive or 60 A inductive limits for three-pole operation.
Highlights
- Handles 75 A resistive loads with 3-pole C25 frame
- Coil operates on 208-240 V AC for standard supplies
- Rated 10 hp at 240 V single-phase motor duty
- 60 A inductive rating suits transformer and ballast circuits
- Open-frame design fits panel-mount installations without enclosure
Specifications
| Brand | EATON |
|---|
Questions about this item
How often should the contacts be inspected or replaced on a 75 A resistive contactor?
Inspect the contact tips annually for pitting or wear; plan to replace the contact kit after several hundred thousand operations at the rated 60 A inductive load.
Which current limit is reached first when the contactor runs continuously at full load?
The 60 A inductive full-load current rating is the limiting value for motor or transformer loads, while resistive loads can use the full 75 A rating.
What coil power draw and heat should I expect with the 208-240 V AC coil energised all day?
The coil operates on 208-240 V AC; normal operation produces modest warmth, and the open-frame design allows free air circulation around the coil and contacts.
