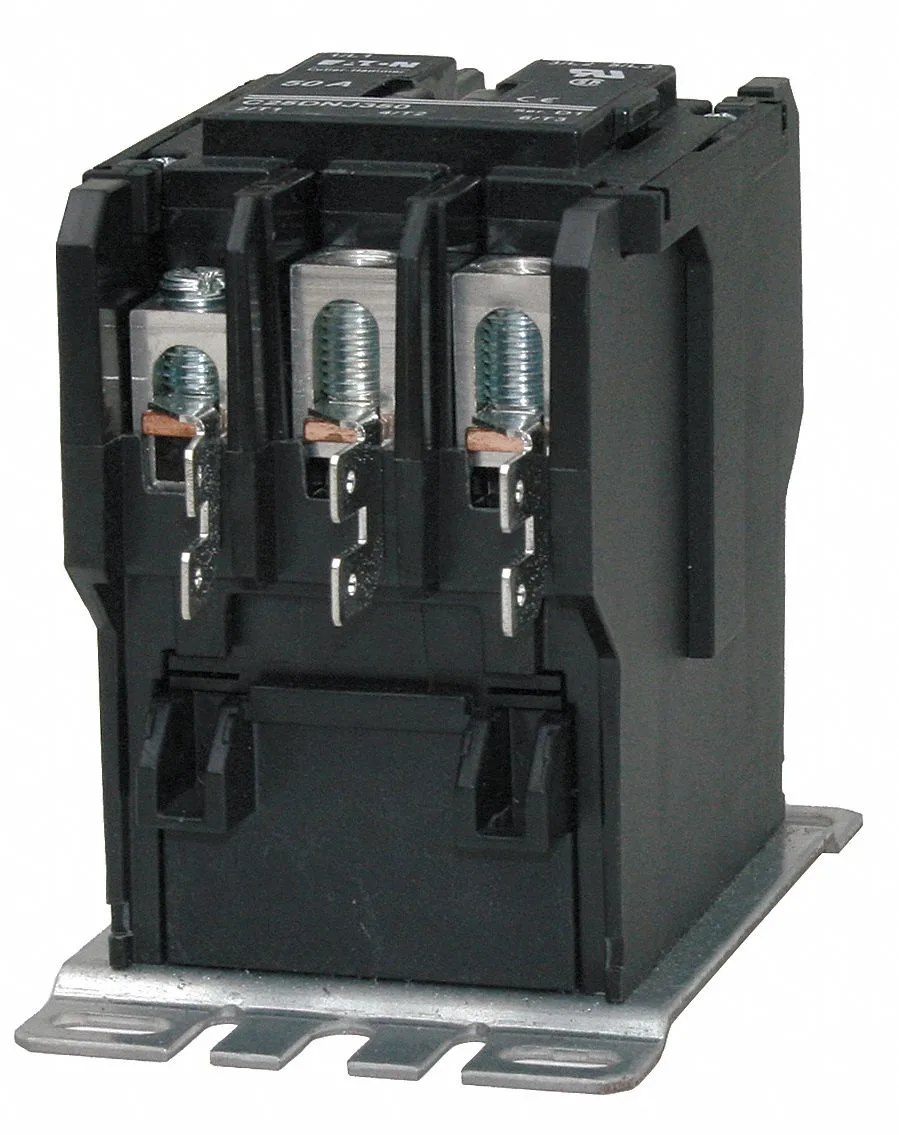

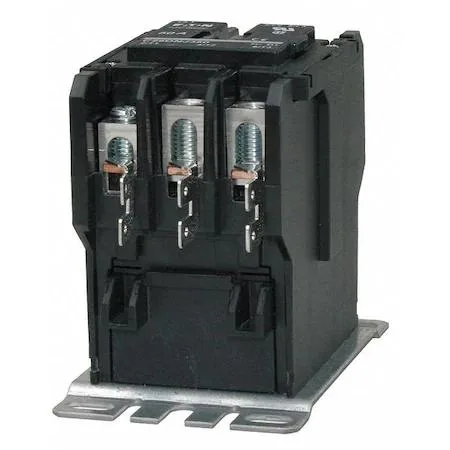

Eaton C25FNF360A 120V AC 3P 60A 75A contactor
A definite-purpose magnetic contactor controlling power flow at 120V AC with 60A inductive and 75A resistive ratings
- Controls motors up to 60 A inductive load
- Handles 75 A resistive heating circuits
- 120 V AC coil suits standard supplies
- Four auxiliary contacts add control flexibility
- 75 in depth fits compact enclosures
Industrial Motor Control
The Eaton C25FNF360A is a definite-purpose magnetic contactor built for non-reversing motor control in HVAC, manufacturing and data-processing equipment. It handles inductive loads up to 60 A and resistive loads up to 75 A at 120 V AC, using a 50/60 Hz coil for reliable engagement. The unit mounts in a 3.75-inch deep enclosure and supports up to four auxiliary contact modules for expanded circuit control.
Coil Thermal Behaviour
The 120 V AC coil is rated for continuous duty at both 50 Hz and 60 Hz supply frequencies, so steady-state heating remains within design limits during normal cycling. With no reversing mechanism, the contactor avoids the extra inrush events that raise coil temperature in reversing starters. Auxiliary modules add minimal burden, keeping overall power draw predictable for panel thermal calculations.
Sustained Load Performance
Under continuous full-load conditions the main contacts carry 60 A inductive or 75 A resistive current without exceeding their temperature rise ratings. The non-reversing action eliminates direction-change arcing, so contact wear proceeds at the steady rate expected for definite-purpose ratings. Auxiliary circuits remain isolated from the main pole heating, preserving signal integrity during extended operation.
Highlights
- Controls motors up to 60 A inductive load
- Handles 75 A resistive heating circuits
- 120 V AC coil suits standard supplies
- Four auxiliary contacts add control flexibility
- 75 in depth fits compact enclosures
Specifications
| Brand | EATON |
|---|
Questions about this item
How do I wire the 120V AC coil on this C25FNF360A contactor?
Connect the 120V AC control supply to the coil terminals; the unit is rated for 50/60 Hz operation. Ensure the enclosure depth allows the 3.75 inch body to seat fully before tightening the mounting screws.
Which parts of the C25FNF360A will need replacement after extended service?
The magnetic coil and main power contacts are the primary wear items. The contactor supports up to four auxiliary contact modules, which can also be swapped independently if they degrade before the main poles.
At what current level does the C25FNF360A reach its thermal limit during continuous motor loads?
The inductive full-load rating is 60 A; sustained operation above this value on motor circuits will cause the contactor to exceed its design temperature rise. The resistive rating is 75 A for heating loads.
