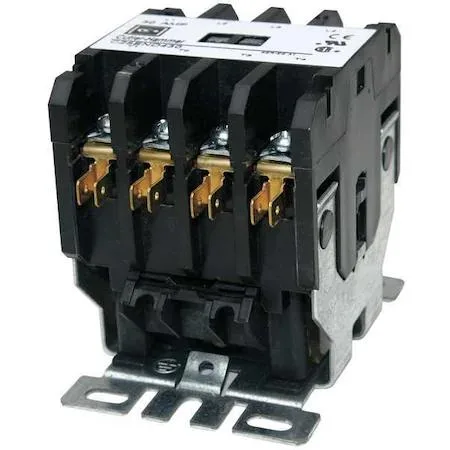

Eaton C25END430B 30 A 208-240 V AC 4-pole contactor
Definite-purpose magnetic contactor switches 30 A inductive and 40 A resistive loads at 208-240 V AC with four poles and 50/60 Hz operation
- Controls power in heavy-duty industrial applications
- 30 A inductive and 40 A resistive full-load current
- Operates on 208-240 V AC coil voltage at 50/60 Hz
- Four-pole non-reversing action with auxiliary module capacity
- Delivers 2 hp single-phase and 15 hp three-phase motor control
Definite Purpose Magnetic Contactor
The Eaton C25END430B is a definite purpose magnetic contactor built for industrial control panels. It switches power in heavy-duty machinery across HVAC, data processing and manufacturing environments. The non-reversing action maintains a constant current flow direction for straightforward load management.
208-240 V AC coil voltage range
Operation requires a control circuit within the 208 V to 240 V AC band at 50 Hz or 60 Hz. The unit mounts with a 3.75 in depth clearance inside the enclosure. Voltage outside this range will prevent reliable actuation of the main poles.
30 A inductive and 40 A resistive ratings
The contactor handles 30 A full-load inductive current and 40 A resistive current continuously. It is rated for 2 hp at 120 V AC single phase and 15 hp at 480 V AC three phase. An auxiliary contact module capacity of four circuits supports additional control signals.
Highlights
- Controls power in heavy-duty industrial applications
- 30 A inductive and 40 A resistive full-load current
- Operates on 208-240 V AC coil voltage at 50/60 Hz
- Four-pole non-reversing action with auxiliary module capacity
- Delivers 2 hp single-phase and 15 hp three-phase motor control
Specifications
| Brand | EATON |
|---|
Questions about this item
Should I choose the 30 A or 40 A rating for my load?
Use 30 A for inductive loads like motors and 40 A for resistive loads like heaters; the contactor is rated for both simultaneously.
What does the 15 hp three-phase rating mean when I wire it at 480 V?
It can switch a 15 hp three-phase motor at 480 V AC within the 30 A inductive limit.
Does the 208-240 V AC coil work on both 50 Hz and 60 Hz supplies?
Yes, the coil is rated for 50/60 Hz operation across the full 208-240 V AC range.
