Eaton
Eaton C25BNB240B definite purpose magnetic contactor 208-240V AC 2-pole

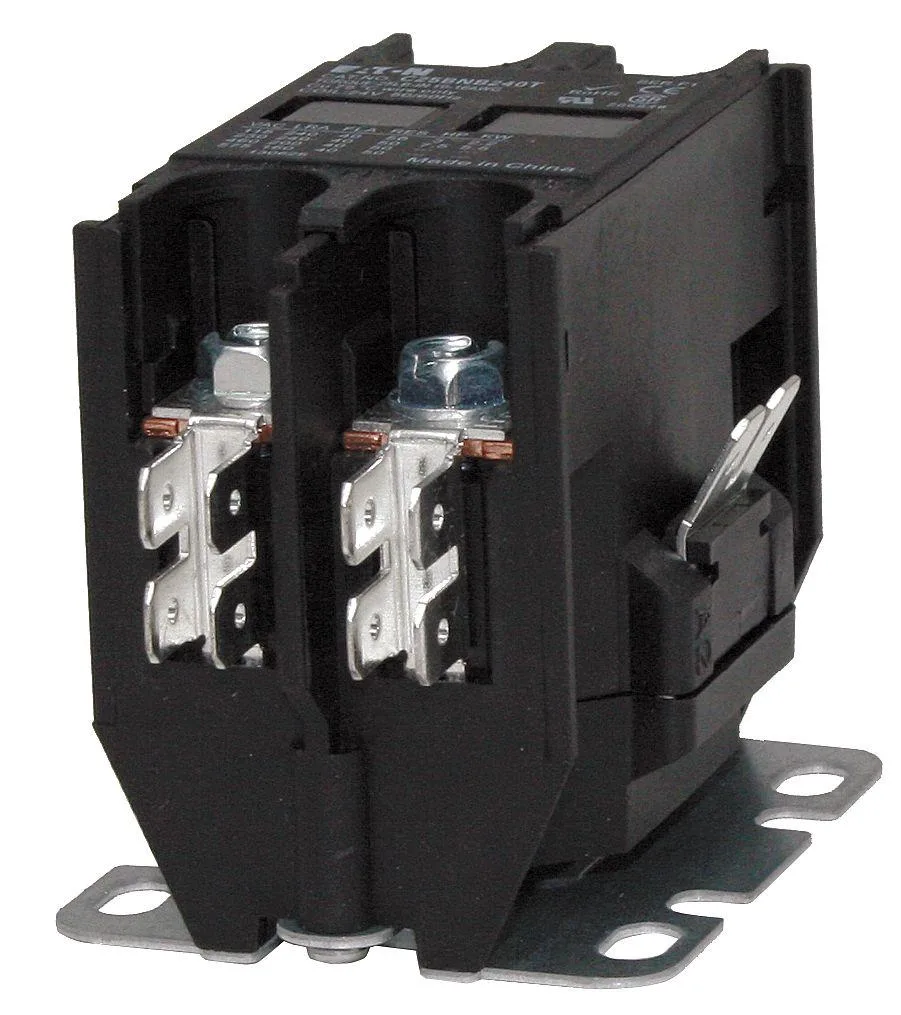

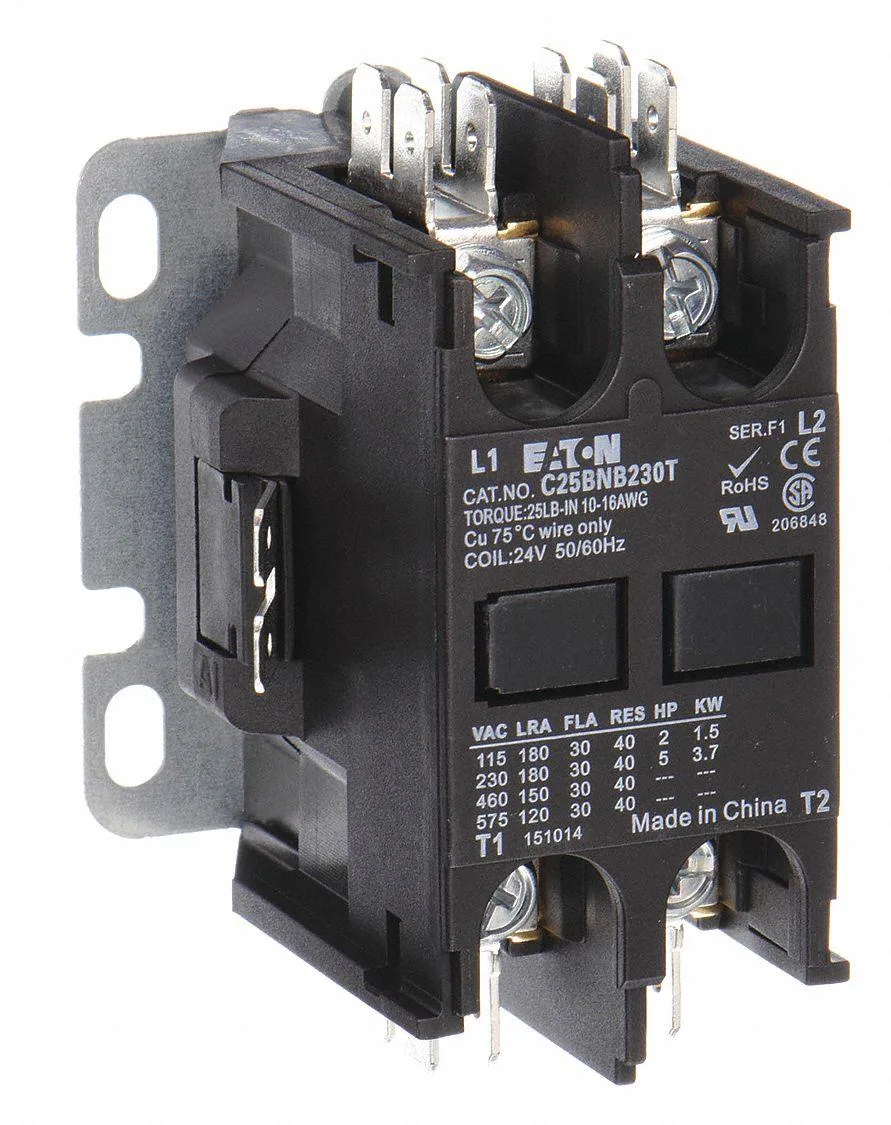

Definite-purpose magnetic contactor switches 208-240V AC loads in HVAC and industrial equipment, 2-pole non-reversing action, open enclosure, 2.32 in. depth, 50/60 Hz coil
- Controls heavy-duty power circuits reliably
- Operates on 208-240V AC coil voltage
- Rated for 50/60 Hz frequency compatibility
- Non-reversing action maintains constant current flow
- Compact 2.32 inch depth fits tight enclosures
Industrial power control for HVAC and manufacturing
The Eaton C25BNB240B is a definite purpose magnetic contactor built for non-reversing motor control in commercial and industrial settings. It switches heavy-duty loads reliably for professionals managing HVAC, data processing and manufacturing equipment.
25 A capacity with 208-240 V AC coil
Rated at 25 amps, this two-pole contactor handles standard motor and heating circuits within its range. The coil operates on 208 to 240 V AC at 50/60 Hz, so it will not engage on lower control voltages or higher-frequency supplies.
Open enclosure runs cool in clean cabinets
The open-type design relies on cabinet airflow rather than a sealed housing, keeping operating temperatures low in dust-free enclosures. With a 2.32 inch mounting depth, it fits standard panels without forcing extra clearance.
Highlights
- Controls heavy-duty power circuits reliably
- Operates on 208-240V AC coil voltage
- Rated for 50/60 Hz frequency compatibility
- Non-reversing action maintains constant current flow
- Compact 2.32 inch depth fits tight enclosures
Specifications
| Brand | EATON |
|---|
Questions about this item
Will this 208-240V AC coil contactor fit alongside my existing 50/60 Hz control panel components?
Yes, the coil is rated for 208-240V AC at 50/60 Hz, matching standard panel frequencies, and the 2.32-inch depth allows it to mount in typical enclosures without interference.
How can I confirm the contactor is operating correctly once wired?
Apply 208-240V AC to the coil; you should hear a firm mechanical click and measure continuity across the two main power poles, showing the circuit closes cleanly.
Does the open-type unit ship with any auxiliary contact blocks or mounting hardware, or must I order them separately?
The contactor has no auxiliary contact module capacity and ships as an open-type unit only; any DIN rail clips, surge suppressors or wiring lugs must be purchased separately.
