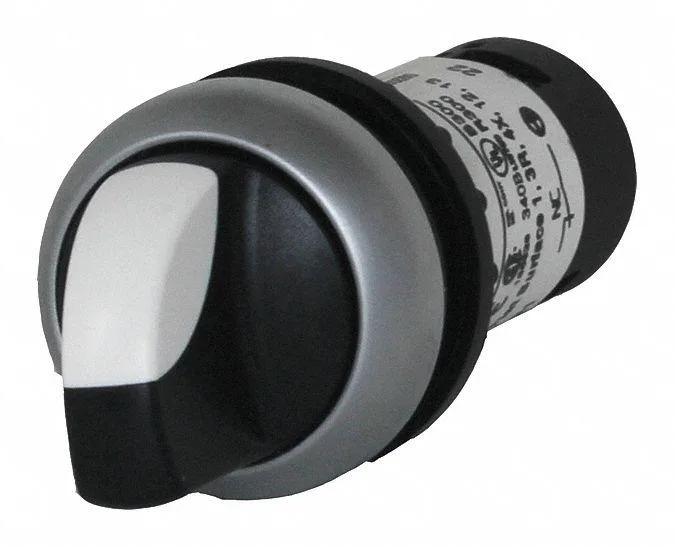

Eaton C22-WRK-K20 Selector Switch 22 mm 2 Position Black
A 22 mm two-position selector switch with maintained action, 2NO contacts, 40-degree knob rotation and IP65 protection
- 2-position maintained action gives clear on/off control
- IP65 and NEMA 1, 12, 13, 3, 4X ratings protect against dust and water jets
- Polycarbonate operator head resists impact and UV exposure
- 5 A at 230 V AC and 3 A at 24 V DC contact rating suits standard control circuits
- 22 mm mounting diameter fits standard panel cut-outs
Industrial Selector Switch 22 mm
The Eaton C22-WRK-K20 is a 22 mm non-illuminated selector switch designed for control-panel integration. It provides two maintained positions with a 40-degree knob rotation and 2NO contact configuration for circuit switching tasks.
Contact Ratings and Environmental Sealing
Rated at 1.5A at 230V AC and 3A at 24V DC under AC-15 and DC-13 designations, the switch suits low-power control circuits. IP65 and NEMA 1, 12, 13, 3, 4X ratings protect against dust and water jets in industrial environments.
Polycarbonate Knob with Silver Bezel
The operator head uses polycarbonate with a silver-coloured bezel, offering a clear tactile feel and visible position indication. Panel mounting uses the standard 22 mm cutout, and the maintained action keeps the knob in the selected position without spring return.
Highlights
- 2-position maintained action gives clear on/off control
- IP65 and NEMA 1, 12, 13, 3, 4X ratings protect against dust and water jets
- Polycarbonate operator head resists impact and UV exposure
- 5 A at 230 V AC and 3 A at 24 V DC contact rating suits standard control circuits
- 22 mm mounting diameter fits standard panel cut-outs
Specifications
| Brand | EATON |
|---|
Questions about this item
How do I install the 22 mm selector switch and what step is often missed?
Mount the operator head into a 22 mm panel cut-out, tighten the locking nut to the specified torque, then wire the two normally-open contacts; the step often missed is verifying the 40-degree rotation aligns with the maintained positions before final tightening.
What maintenance or replacement will the selector switch need over time?
The polycarbonate operator head and plastic base are sealed to IP65; no routine maintenance is required, but if the 1.5 A at 230 V AC or 3 A at 24 V DC contact rating is exceeded, the contact block should be replaced.
What limit appears first during sustained operation of the selector switch?
The contact rating of 1.5 A at 230 V AC (AC-15) or 3 A at 24 V DC (DC-13) is the first limit reached under continuous load; exceeding it causes contact wear or overheating before the IP65 seal or mechanical rotation degrades.
