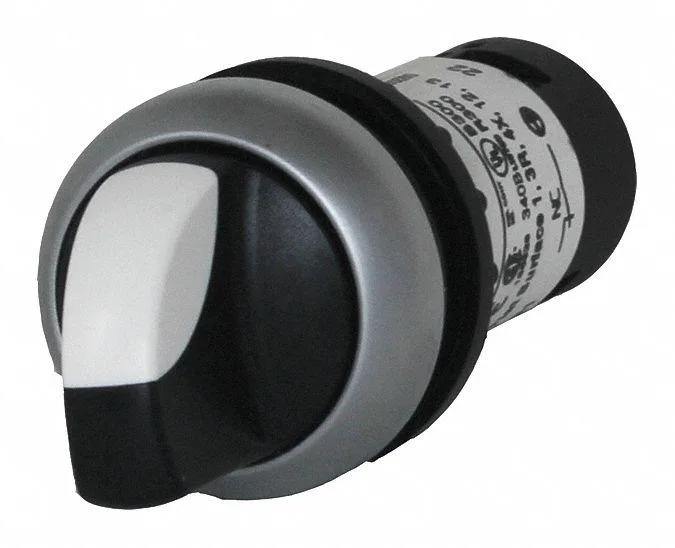

Eaton C22-WRK-K11 Selector Switch 22 mm 2 Position Black
22 mm selector switch with two maintained positions, 1NO/1NC contacts, and IP65-rated polycarbonate operator
- Maintained two-position action for reliable control
- 22 mm mounting fits standard panel cut-outs
- IP65 rating protects against dust and water jets
- 5 A at 230 V AC and 3 A at 24 V DC contact rating
- Polycarbonate knob with 40-degree rotation for clear tactile feedback
22 mm Selector Switch for Panel Control
The Eaton C22-WRK-K11 is a 22 mm non-illuminated selector switch designed for industrial panel mounting. It provides a two-position maintained action with a 1NO/1NC contact block for controlling machinery circuits. The black polycarbonate knob rotates 40 degrees between positions. This switch suits operators who need a durable manual interface for motor starters or control panels.
NEMA and IP Ratings Define Environmental Limits
The operator carries NEMA 1, 3, 4X, 12 and 13 ratings plus IP65 ingress protection, making it suitable for indoor and outdoor enclosures exposed to dust, water jets and corrosion. Contact ratings are 1.5 A at 230 V AC (AC-15) and 3 A at 24 V DC (DC-13). Circuits exceeding these voltage or current values require a different contact block or an interposing relay.
Replaces Worn or Incompatible 22 mm Operators
This unit fits standard 22 mm panel cut-outs and upgrades older operators that lack IP65 sealing or NEMA 4X corrosion resistance. The maintained/maintained action replaces spring-return types where the operator must stay in the selected position without continuous pressure. It is not suited for applications requiring key-operated security, momentary action or illuminated status indication.
Highlights
- Maintained two-position action for reliable control
- 22 mm mounting fits standard panel cut-outs
- IP65 rating protects against dust and water jets
- 5 A at 230 V AC and 3 A at 24 V DC contact rating
- Polycarbonate knob with 40-degree rotation for clear tactile feedback
Specifications
| Brand | EATON |
|---|
Questions about this item
Should I choose the 1NO/1NC contact form or look for a different contact configuration?
This selector switch comes with a fixed 1NO/1NC contact form. If your control circuit requires a different arrangement such as 2NO or 2NC, you would need a different operator or contact block.
What does the 1.5A at 230V AC rating mean for my control circuit?
The contacts are rated to switch up to 1.5 amps at 230 volts AC under AC-15 duty, which covers typical electromagnetic loads like contactor coils and relays in industrial control panels.
How does the IP65 and NEMA 4X rating affect where I can mount this switch?
The IP65 and NEMA 4X ratings mean the operator head is dust-tight and protected against water jets and corrosion, so it can be mounted on outdoor enclosures or wash-down areas without additional sealing.
