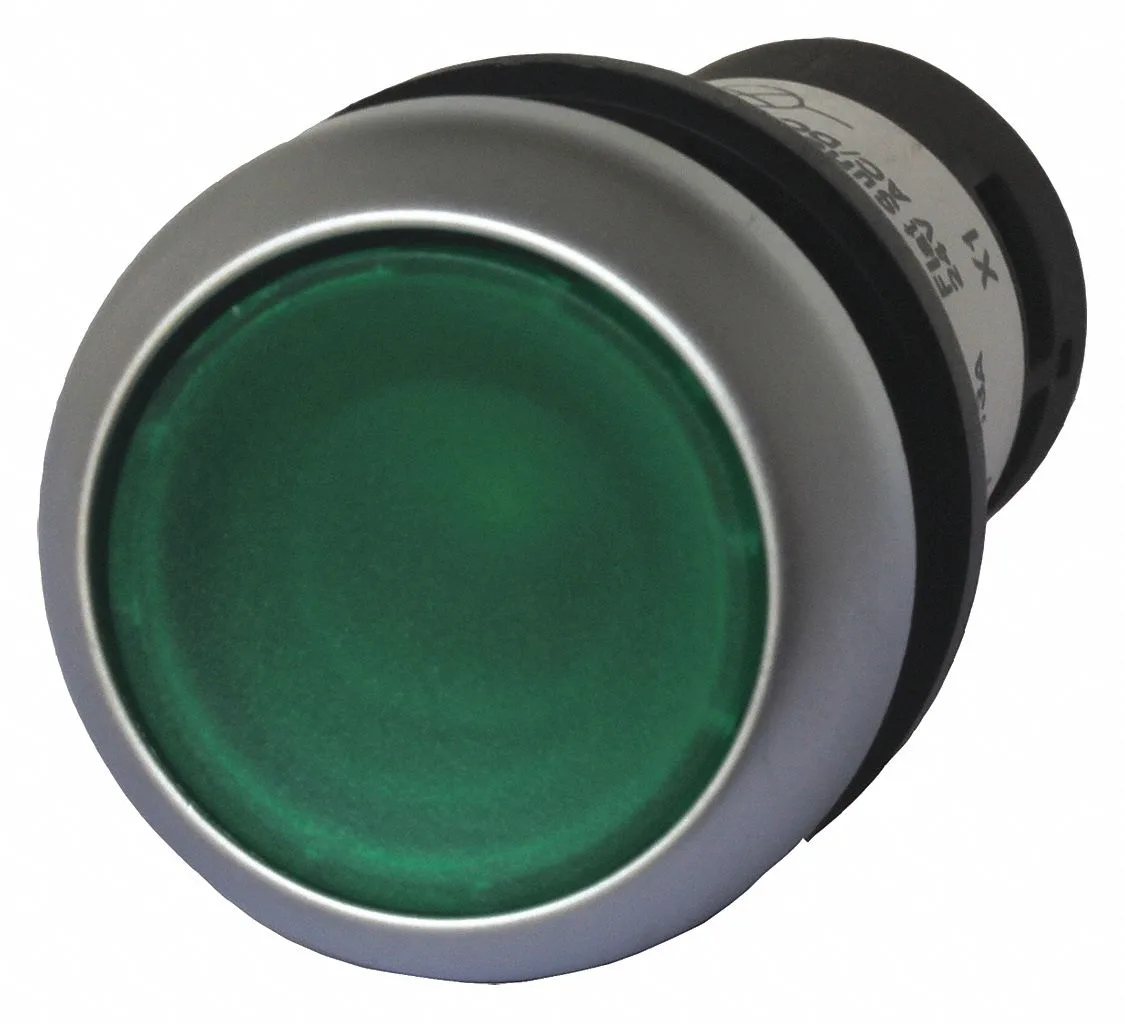

Green illuminated push button with silver bezel, 22 mm flush mount

Eaton

Eaton C22-DL-G-K10-120 Illuminated Push Button Green 1NO

SKU CH-7W6X-VYZ3H

A 22 mm green illuminated push button with momentary flush action, 1NO contact rated 1.5 A at 230 V AC and 3 A at 24 V DC, IP67 and IP69K sealed for NEMA 1, 12, 13, 3 and 4X environments

  • TypeIndustrial Electrical Controls & Automation
  • Green illuminated push button for clear status indication
  • 22 mm momentary flush operator fits standard panels
  • 1NO contact rated 1.5 A at 230 V AC and 3 A at 24 V DC
  • IP67 and IP69K sealed for harsh environments
  • UL listed and meets CSA, DIN VDE 0600, EN 60947, IEC-60947 standards

Eaton Illuminated Push Button

The Eaton C22-DL-G-K10-120 is a 22 mm industrial push button with a green illuminated flush head. It is designed for control panels and automation systems requiring clear visual status indication. The unit features a silver coated polycarbonate bezel and plastic head material. It provides a single normally open contact for momentary action switching.

Sustained Load Behaviour

The contact is rated for continuous operation at 1.5A at 230V AC under AC-15 duty and 3A at 24V DC under DC-13 duty. These ratings reflect performance under sustained load rather than momentary surge capacity. The screw clamp terminals ensure a secure connection that resists loosening from vibration during extended use. The completely sealed construction maintains integrity in harsh environments.

Decisive Specification

The IP67 and IP69K ratings confirm suitability for high-pressure washdown and temporary immersion. NEMA ratings 1, 3, 4X, 12 and 13 cover indoor, outdoor and corrosive atmospheres. Buyers needing a normally closed contact or a different voltage rating must select an alternative part. The green illumination colour is fixed and cannot be changed in the field.

Highlights

  • Green illuminated push button for clear status indication
  • 22 mm momentary flush operator fits standard panels
  • 1NO contact rated 1.5 A at 230 V AC and 3 A at 24 V DC
  • IP67 and IP69K sealed for harsh environments
  • UL listed and meets CSA, DIN VDE 0600, EN 60947, IEC-60947 standards

Specifications

BrandEATON
TypeIndustrial Electrical Controls & Automation

Questions about this item

Does the illuminated button generate noticeable heat or draw extra power when left on continuously?

The LED circuit is rated at 1.5A @ 230V AC and 3A @ 24V DC, so heat and power draw remain minimal during all‑day operation.

What existing panel cut‑out and voltage supply do I need to install this 22 mm push button?

You need a standard 22 mm panel hole and a control circuit that provides either 24 V DC or 230 V AC to match the contact ratings.

Will the silver‑coated polycarbonate bezel and IP67/IP69K sealing hold up next to older NEMA‑rated enclosures?

Yes — the button carries NEMA 1, 3, 4X, 12, 13 ratings and IP67/IP69K sealing, matching or exceeding most legacy enclosure specs.
