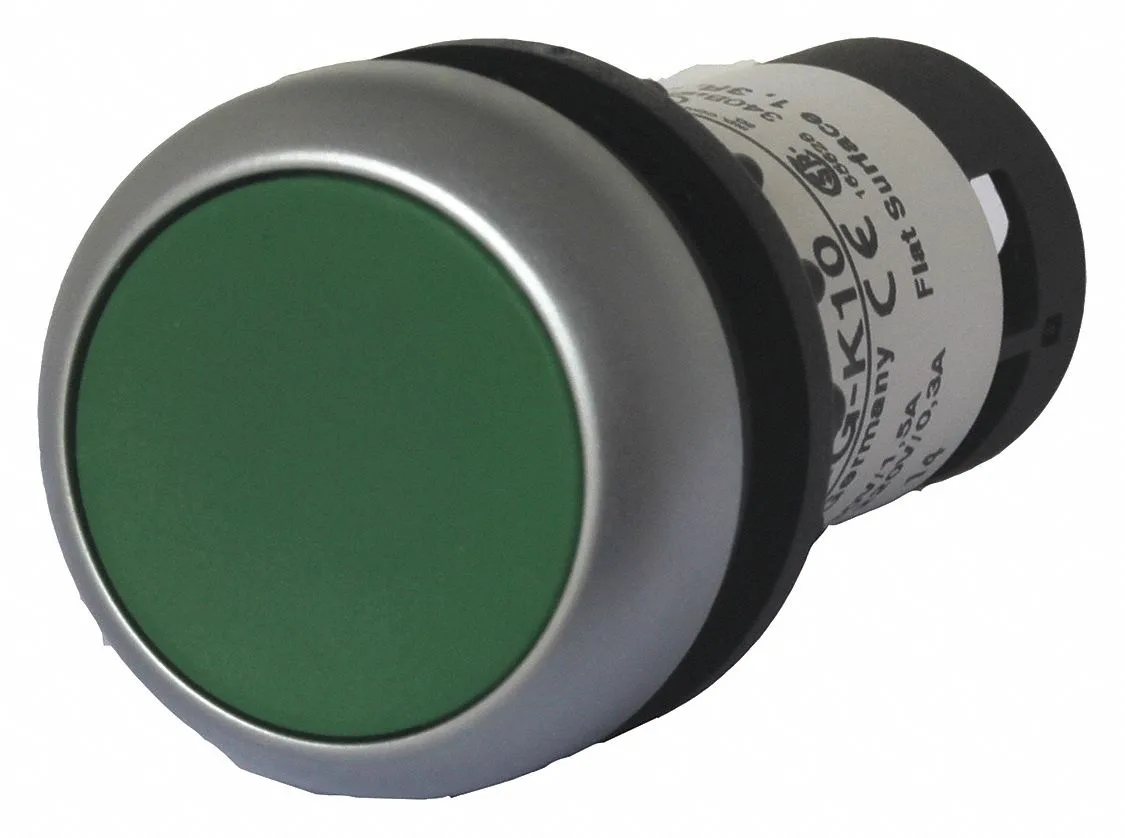

Green flush push button operator with silver nylon bezel, 22 mm

Eaton

Eaton C22-D-G-K10 22 mm Push Button Operator Green 1NO

SKU CH-13YF-FF0NY

A flush 22 mm momentary push button operator with 1NO contact, IP67 and IP69K sealing, rated 1.5 A at 230 V AC and 3 A at 24 V DC

  • TypeIndustrial Electrical Controls & Automation
  • 22 mm flush operator fits standard panel cut-outs
  • Momentary action with 1NO contact for simple control circuits
  • IP67 and IP69K sealing resists water and high-pressure wash-down
  • Green plastic head with silver nylon bezel for clear visual status
  • Rated 1.5 A at 230 V AC and 3 A at 24 V DC for reliable switching

22 mm Flush Push Button Operator

The Eaton C22-D-G-K10 is a momentary flush push button operator designed for industrial control panels and automation equipment. Its 22 mm mounting diameter fits standard panel cutouts and the green plastic head provides clear visual identification for start or go functions in machinery and process control.

IP67 and IP69K Sealed Construction

The operator is completely sealed to withstand high-pressure washdown and temporary immersion, meeting NEMA 1, 3, 4X, 12 and 13 ratings. A single normally open contact rated at 1.5A at 230V AC and 3A at 24V DC handles control-circuit switching with screw-clamp terminals for secure wiring.

Direct Replacement for Worn

This unit replaces an existing 22 mm flush push button with the same contact form and mounting dimensions, restoring reliable actuation without rewiring the enclosure. The upgrade is worth it when the original operator shows contact wear, seal degradation or legend fading that compromises safety or operation.

Highlights

  • 22 mm flush operator fits standard panel cut-outs
  • Momentary action with 1NO contact for simple control circuits
  • IP67 and IP69K sealing resists water and high-pressure wash-down
  • Green plastic head with silver nylon bezel for clear visual status
  • Rated 1.5 A at 230 V AC and 3 A at 24 V DC for reliable switching

Specifications

BrandEATON
TypeIndustrial Electrical Controls & Automation

Questions about this item

How do I install the 22 mm push button operator into a panel, and what step is often missed?

Drill a 22 mm hole, insert the operator, and tighten the locking nut from behind; the step often missed is seating the gasket fully so the IP67 and IP69K seals remain effective.

What maintenance or replacement will the green flush push button need over time?

The plastic head and sealed construction require no routine maintenance; replace the entire operator if the 1NO contact block fails or if the green lens becomes illegible.

What electrical limit appears first when the button is held continuously at its rated load?

The contact rating of 1.5 A at 230 V AC (AC-15) or 3 A at 24 V DC (DC-13) is the limiting factor; sustained current above these values will overheat the screw-clamp terminals.
