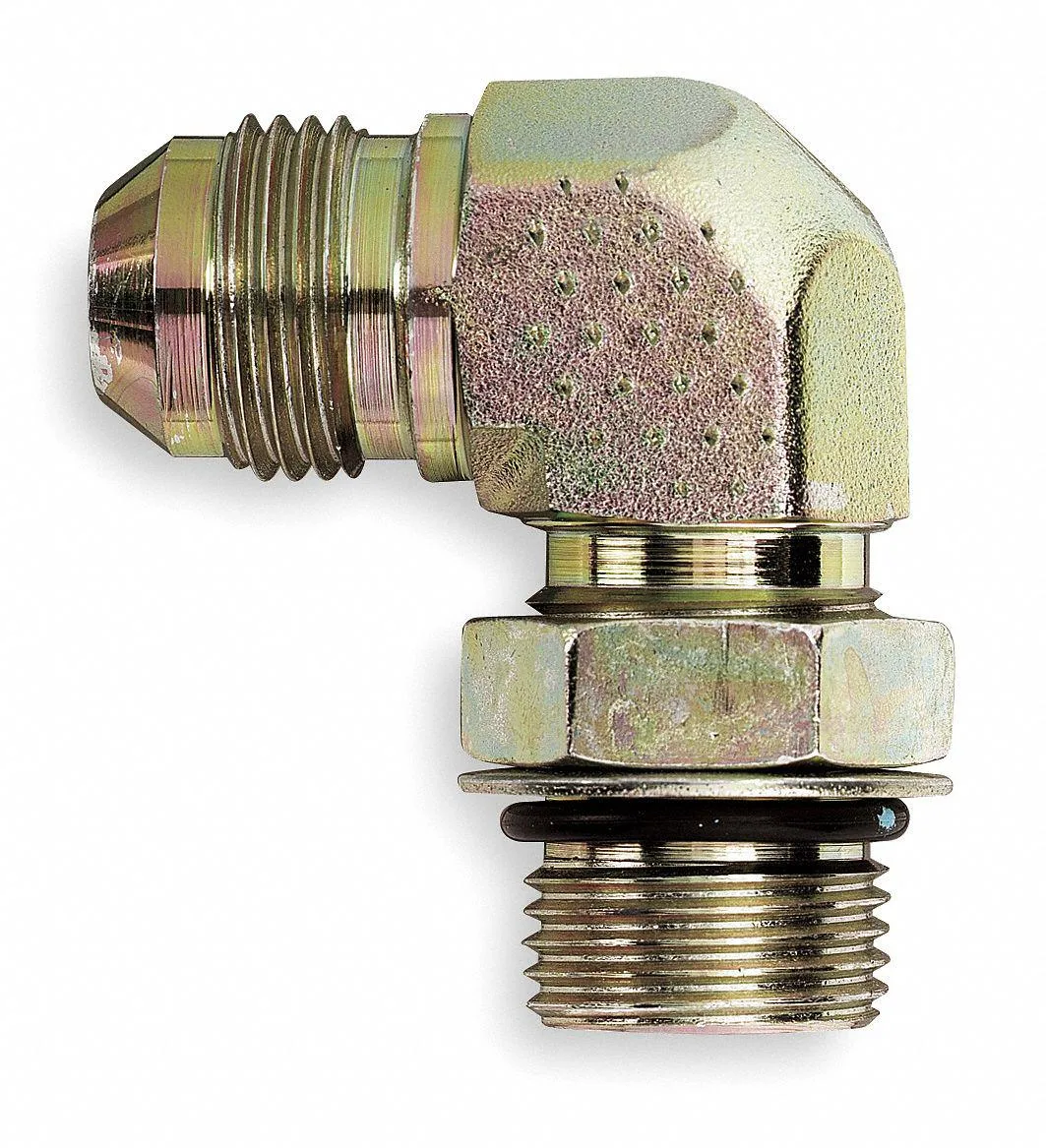

Eaton Aeroquip 90 degree elbow hydraulic coupling carbon steel silver finish 2.25 inches long

Eaton

Eaton Aeroquip 2062-12-16S 90° Elbow Coupling

SKU CH-YE50-NDCRA

A 90-degree elbow hydraulic coupling connects 3/4 inch ORB and 1 inch JIC male fittings, rated to 2,500 psi with an included O-ring

  • 90° elbow simplifies routing in tight hydraulic systems
  • 2,500 psi rating handles demanding pressure applications
  • Male ORB to male JIC connects differing port types
  • Carbon steel construction resists wear in harsh environments
  • SAE J514 compliance ensures industry-standard dimensions

Hydraulic 90° Elbow Adapter

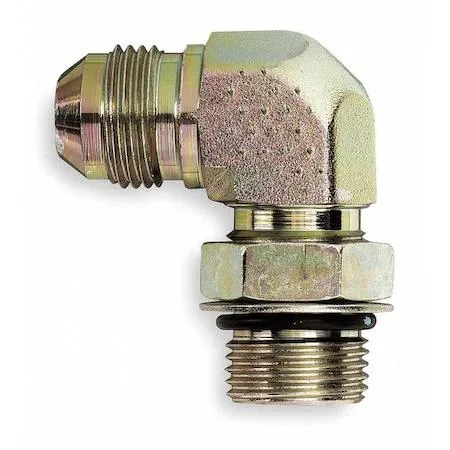

The Eaton Aeroquip 2062-12-16S is a rigid 90-degree elbow coupling designed for hydraulic hose assemblies. It connects a 3/4 in male ORB port to a 1 in male JIC thread in a single carbon steel body. The fitting includes an O-ring for sealing and is rated for 2,500 psi working pressure.

Thermals Noise Power Draw

This is a passive hydraulic component with no moving parts, electrical draw or active cooling. It generates no noise and adds no thermal load to the system. Pressure drop across the elbow depends on flow rate and fluid viscosity rather than an internal restriction figure supplied by the manufacturer.

Upgrade Path Fitment

The adapter replaces a separate straight fitting plus a 90-degree hose bend when space is limited and a compact rigid turn is required. It suits builders joining SAE J514 ORB and JIC ports of the stated sizes. It does not suit installations needing a crimpable hose end or a different thread combination.

Highlights

  • 90° elbow simplifies routing in tight hydraulic systems
  • 2,500 psi rating handles demanding pressure applications
  • Male ORB to male JIC connects differing port types
  • Carbon steel construction resists wear in harsh environments
  • SAE J514 compliance ensures industry-standard dimensions

Specifications

BrandEATON AEROQUIP

Questions about this item

How do I install the 90° elbow coupling and what step is often missed?

Thread the 1-5/16-12 ORB male end into the port and the 1-1/16-12 JIC male end onto the hose fitting, torquing both to spec; the included O-ring must be seated in the ORB groove before tightening or it will leak.

What maintenance or replacement will this carbon-steel 90° elbow need later?

Inspect the O-ring and carbon-steel threads at each service interval; replace the O-ring if it shows compression set or the fitting if corrosion or thread damage appears.

What is the first limit reached under sustained hydraulic pressure?

The 2,500 psi working-pressure rating is the limiting factor; sustained operation above that pressure risks fitting failure.
