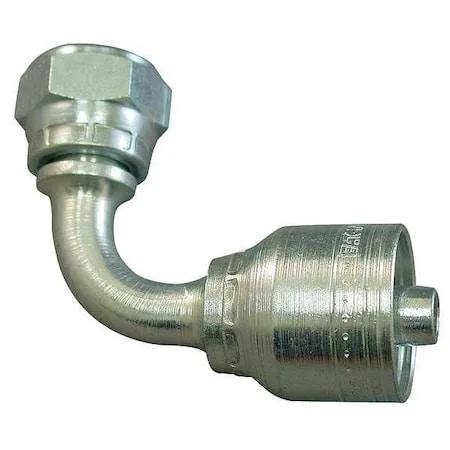

Eaton Aeroquip 90-degree elbow hydraulic fitting, metric M30x2 thread, -12 dash size

Eaton

Eaton Aeroquip 1A20DLB12 90° Metric Light Fitting M30x2 -12

SKU CH-0Y3F-X2EKS

A 90° metric-light crimp fitting with M30×2 thread for 3/4 in hose dash size -12, compatible with 2661, EC110, EC115, EC118, EC210, EC215, FC310, FC510, FC579, FC611, FC619, FC639/FC839B, FC693.

  • 90° elbow enables tight routing in confined spaces
  • Female M30×2 swivel thread simplifies metric system connections
  • Compatible with dash -12 hose for 3/4 in internal diameter
  • Works with 2661 and EC series hose families
  • Crimp-style hydraulic fitting rated for high-pressure service

Hydraulic Crimp Fitting for -12 Dash Size

This Eaton Aeroquip fitting connects hose dash size -12 with a 3/4 inch inside diameter. It suits hydraulic assemblies using compatible hose series such as EC110, FC310 or GH120. The 90-degree elbow shape routes fluid around tight bends in mobile or industrial machinery.

Metric M30x2 Thread and Swivel Constraint

The female M30-2 thread mates with metric light ports on cylinders, valves or manifolds. A swivel nut allows orientation during installation but does not permit continuous rotation under pressure. Vacuum service is not rated, so the fitting must not be used on suction lines.

Compatible Hose Series and Pressure Headroom

Approved hose series include 2661, EC215, FC579, FC619, FC639, GH194 and GH793 across dash sizes -12 through -32. The crimp design holds rated working pressure for each listed hose; exceeding the hose pressure rating or using unlisted hose series voids the joint integrity.

Highlights

  • 90° elbow enables tight routing in confined spaces
  • Female M30×2 swivel thread simplifies metric system connections
  • Compatible with dash -12 hose for 3/4 in internal diameter
  • Works with 2661 and EC series hose families
  • Crimp-style hydraulic fitting rated for high-pressure service

Specifications

BrandEATON AEROQUIP

Questions about this item

Which hose series does this M30x2 90° fitting suit?

It fits series 2661 (-12 through -32), EC110, EC115, EC118, EC210, EC215, FC310, FC510, FC579, FC611, FC619 (-12 through -32), FC639/FC839B, FC693, FC735, FC849/FC849B, GH120, GH194, GH195, GH663, GH681-6, GH781 and GH793

What does the -12 dash size mean when the fitting is installed?

The dash -12 matches a 3/4 in hose inside diameter and pairs with the M30-2 thread on the swivel female end

How does the metric light M30-2 thread affect assembly?

The female M30-2 swivel nut seals on a metric light port; the 90° elbow routes the hose at a right angle without extra adapters
