Eaton replacement coil, NEMA size 4 5, 120VAC

Eaton

Eaton 9-1891-1 Replacement Coil 120VAC NEMA Size 4 5

SKU CH-Y3R2-RW0D0

Replacement coil for NEMA Size 4 and 5 contactors, operating at 120 V AC, 50/60 Hz

  • TypeNEMA
  • 120/110 V AC coil voltage supports standard mains supply
  • 50/60 Hz frequency rating fits global power systems
  • 1,040 VA coil power delivers reliable contactor actuation
  • Compatible with Series Freedom NEMA contactors
  • NEMA Size 4, 5 frame fits designated starter models

Eaton 9-1891-1 Replacement Coil

This Eaton 9-1891-1 replacement coil is designed for NEMA Size 4 and 5 contactors in the Series Freedom range. It suits maintenance engineers and electricians who need a direct 120/110V AC coil replacement for existing motor control equipment.

Installation and common issues

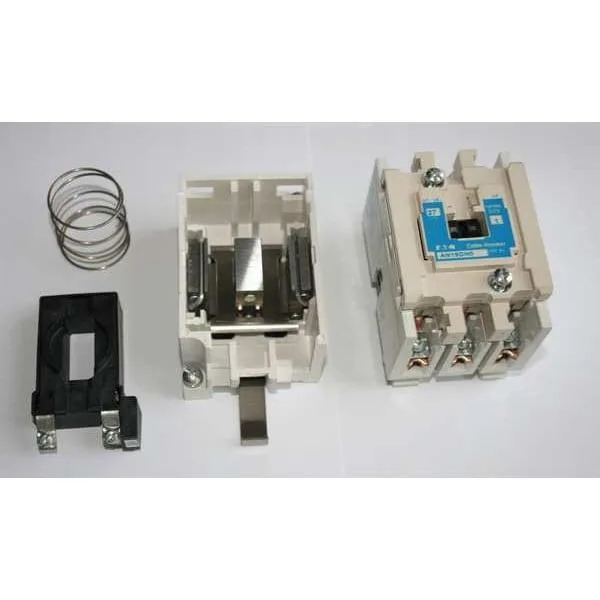

Installation requires isolating the supply, removing the contactor cover and swapping the coil assembly. A frequent error is fitting the coil without confirming the contactor frame matches NEMA Size 4 or 5, which prevents correct mechanical engagement.

Compatibility checks before ordering

Verify that the contactor is a Series Freedom unit with NEMA Size 4 or 5 designation. Confirm the control circuit operates at 120/110V AC and 50/60 Hz, and that the coil power rating of 1,040 VA matches the application requirements.

Highlights

  • 120/110 V AC coil voltage supports standard mains supply
  • 50/60 Hz frequency rating fits global power systems
  • 1,040 VA coil power delivers reliable contactor actuation
  • Compatible with Series Freedom NEMA contactors
  • NEMA Size 4, 5 frame fits designated starter models

Specifications

BrandEaton
Model9-1891-1
TypeNEMA

Questions about this item

How can I verify the 120VAC coil is operating correctly after installation?

Energise the contactor at 120VAC 50/60Hz and confirm the contacts close cleanly; the coil should draw approximately 1,040VA during pull-in.

What comes with the 9-1891-1 replacement coil and what must be sourced separately?

The package contains the coil only; mounting hardware, terminal lugs and any series Freedom contactor base are not included.

Which NEMA size should I select for my Series Freedom contactor — Size 4 or Size 5?

This single coil fits both NEMA Size 4 and Size 5 Series Freedom contactors, so choose the one that matches your contactor’s nameplate.
