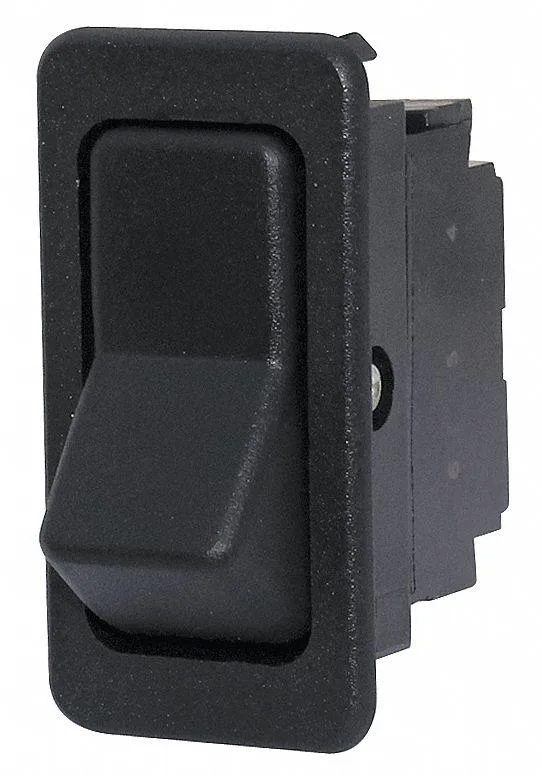

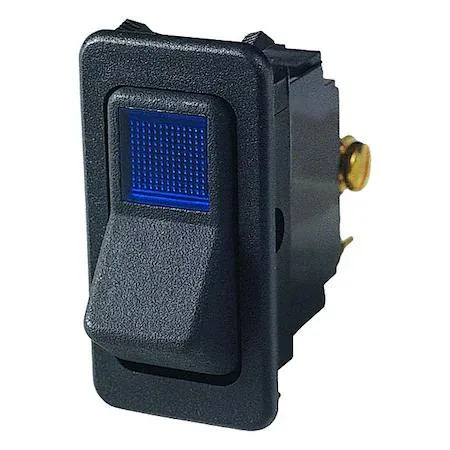

Eaton 8005K37N113V52 Lighted Rocker Switch
Lighted rocker switch with SPST momentary off/on action, 10 A at 250 V AC, 15 A at 125 V AC and 15 A at 28 V DC, screw terminals, IP54 rating and a 125 V neon indicator in a black body
- SPST momentary off/on function gives precise control
- 125 V neon indicator shows status at a glance
- 10 A at 250 V AC rating handles demanding loads
- IP54 rating protects against dust and water splash
- 867 in by 1.734 in mounting hole fits standard panels
Product Identity
The Eaton 8005K37N113V52 is a lighted rocker switch with an SPST contact form and three screw terminals. It is built for electrical starters and contactors in automotive or machine-shop environments.
Build Integration
The switch fits a 0.867 in by 1.734 in mounting hole and carries an IP54 rating for dust and splash resistance. A 125 V AC neon indicator lights when the circuit is on, freeing the panel from a separate pilot lamp.
Target User
Suited for technicians wiring momentary off/on controls rated at 10 A 250 V AC, 15 A 125 V AC or 15 A 28 V DC. Not for buyers who need a maintained on/off action, a different contact form or a non-illuminated actuator.
Highlights
- SPST momentary off/on function gives precise control
- 125 V neon indicator shows status at a glance
- 10 A at 250 V AC rating handles demanding loads
- IP54 rating protects against dust and water splash
- 867 in by 1.734 in mounting hole fits standard panels
Specifications
| Brand | EATON |
|---|
Questions about this item
How long does the 125 V neon indicator last before it dims under continuous use?
The neon lamp is rated for the full 10 A / 250 V AC and 15 A / 125 V AC contact limits, so it stays lit as long as the switch handles rated current.
Does the switch body get hot or draw extra power when the light stays on all day?
The indicator runs directly from the 125 V AC line through the same contacts, adding negligible heat and no separate power draw beyond the load current.
What panel cut-out and wiring must already be in place for this switch to fit and work?
A rectangular cut-out of 0.867 in by 1.734 in and three screw terminals for the SPST momentary off/on circuit are required.
