Eaton
Eaton 8005K35N313V32 lighted rocker switch black off/momentary on
Lighted rocker switch with SPST momentary off/on action, 0.250 in quick-connect tabs and 14 V incandescent indicator
- SPST momentary off/on action gives precise single-circuit control
- Illuminated 14 V DC indicator shows power status at a glance
- 15 A at 125 V AC and 10 A at 250 V AC ratings suit common mains loads
- IP54 sealing resists dust and splashes in harsh environments
- 250 in quick-connect tabs enable fast, tool-free wiring

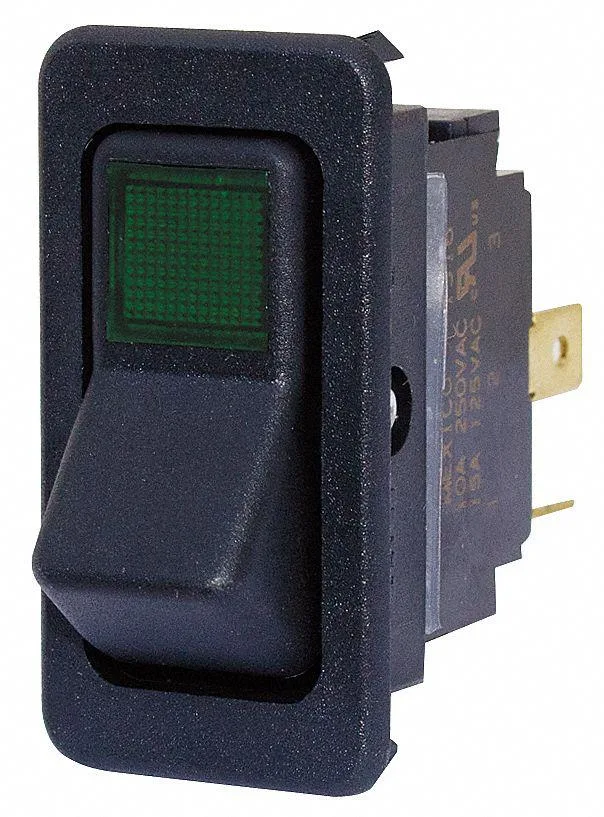

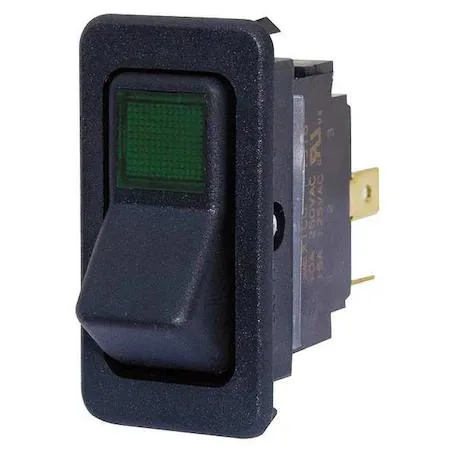

Eaton 8005K35N313V32 lighted rocker switch
This Eaton lighted rocker switch provides a momentary off/on function with an integrated 14V DC incandescent indicator. The black SPST unit carries a 15A rating at 125V AC, 10A at 250V AC and 15A at 28V DC, and mounts through a 0.867 in x 1.734 in panel cut-out using 0.250 in quick-connect tabs.
Panel builders and maintenance technicians
It suits panel builders and maintenance technicians who need a compact, illuminated momentary switch for AC or DC control circuits up to the listed ratings. Buyers requiring a maintained on/off action, a different contact form or an indicator voltage other than 14V DC should look at alternative switch types.
14V DC incandescent indicator light
The single specification that decides fit is the built-in 14V DC incandescent indicator, which only illuminates correctly when the control circuit operates at that voltage.
Highlights
- SPST momentary off/on action gives precise single-circuit control
- Illuminated 14 V DC indicator shows power status at a glance
- 15 A at 125 V AC and 10 A at 250 V AC ratings suit common mains loads
- IP54 sealing resists dust and splashes in harsh environments
- 250 in quick-connect tabs enable fast, tool-free wiring
Specifications
| Brand | EATON |
|---|
Questions about this item
Does the 14 V incandescent indicator light need replacement over time?
The 14 V DC incandescent indicator is built into the switch body and is not user-serviceable; if the filament fails the whole switch must be replaced.
What is the first electrical limit reached during continuous operation?
The 10 A at 250 V AC rating is the lowest current ceiling, so sustained loads above that will hit the contact limit first.
How much heat does the switch generate when lit and carrying 15 A at 125 V AC all day?
At 15 A the contacts dissipate only a few watts and the 14 V incandescent adds roughly 1 W, so the body stays warm but within the IP54 enclosure rating.
