Eaton 8005K35N113V32 lighted rocker switch black off/momentary on

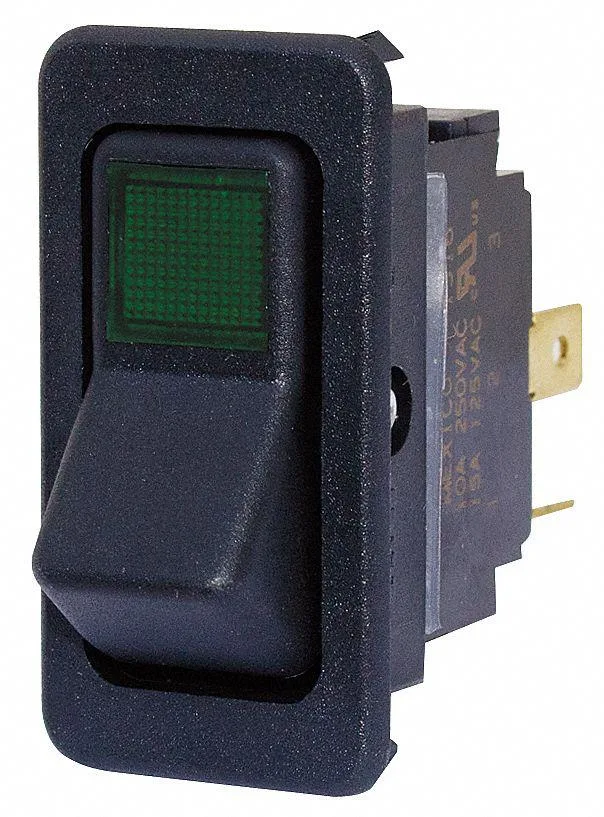

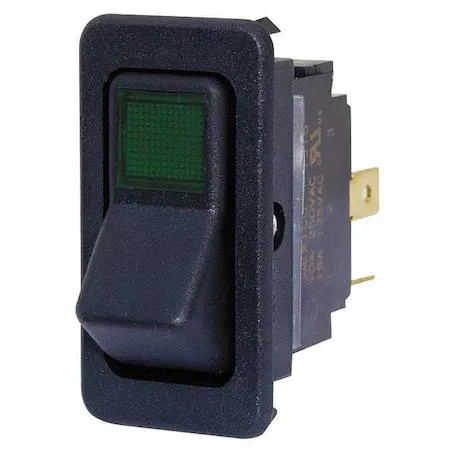

A black SPST lighted rocker switch with momentary off/on action, 0.250 in quick-connect tabs and a 125 V neon indicator rated IP54
- SPST contact form simplifies single-circuit wiring
- Neon indicator at 125 V AC confirms power status at a glance
- 250 in quick-connect tabs enable fast, tool-free termination
- IP54 rating protects against dust and water splashes
- Rated 10 A at 250 V AC and 15 A at 28 V DC for versatile load handling
Lighted Rocker Switch for Momentary Circuits
This black SPST switch provides an illuminated off/momentary-on function with a 125 V AC neon indicator. It fits a 0.867 in by 1.734 in mounting hole and uses 0.250 in quick-connect tabs for wiring. The IP54 rating protects against dust and splashing water in industrial or automotive panels.
AC and DC Contact Ratings with Headroom
The switch carries 15 A at 125 V AC and 10 A at 250 V AC, while the DC rating is 15 A at 28 V. A 3/4 hp motor rating adds capacity for small inductive loads. Continuous operation beyond these currents or voltages will exceed the certified limits.
IP54 Rating Decides Environmental Suitability
The IP54 classification means the switch resists limited dust ingress and water splashes from any direction. It is not submersible and not rated for high-pressure wash-down. Buyers needing IP67 or higher sealing must choose a different switch.
Highlights
- SPST contact form simplifies single-circuit wiring
- Neon indicator at 125 V AC confirms power status at a glance
- 250 in quick-connect tabs enable fast, tool-free termination
- IP54 rating protects against dust and water splashes
- Rated 10 A at 250 V AC and 15 A at 28 V DC for versatile load handling
Specifications
| Brand | EATON |
|---|
Questions about this item
Will this 0.250 in quick-connect tab fit the spade terminals already on my harness?
The switch uses 0.250 in quick-connect tabs, a common size for standard 1/4 in female spade terminals, so existing harnesses with that width will mate directly.
How can I verify the neon indicator is working once the switch is wired?
With power applied to the circuit, the built-in 125 V AC neon lamp lights when the actuator is held in the momentary on position and goes dark when released.
Does the package include a mounting gasket or sealing hardware for the IP54 rating?
The switch body carries an IP54 rating; sealing hardware such as a gasket or O-ring is not included and must be sourced separately to maintain that protection.
