Eaton 8005K25N113V32 Lighted Rocker Switch
A lighted rocker switch with SPST contact form, screw terminals and a 125 V AC neon indicator, rated 10 A at 250 V AC, 15 A at 125 V AC and 15 A at 28 V DC, IP54 sealed in a black housing
- Illuminated Off/On indicator simplifies status checks at a glance
- SPST three-connection design handles 15 A at 125 V AC for reliable power control
- IP54-rated sealing resists dust and splashes in harsh environments
- Screw terminals and standard 0.867 in × 1.734 in cutout enable fast panel installation
- cRUus, UL E2702 and RoHS listings confirm safety and environmental compliance

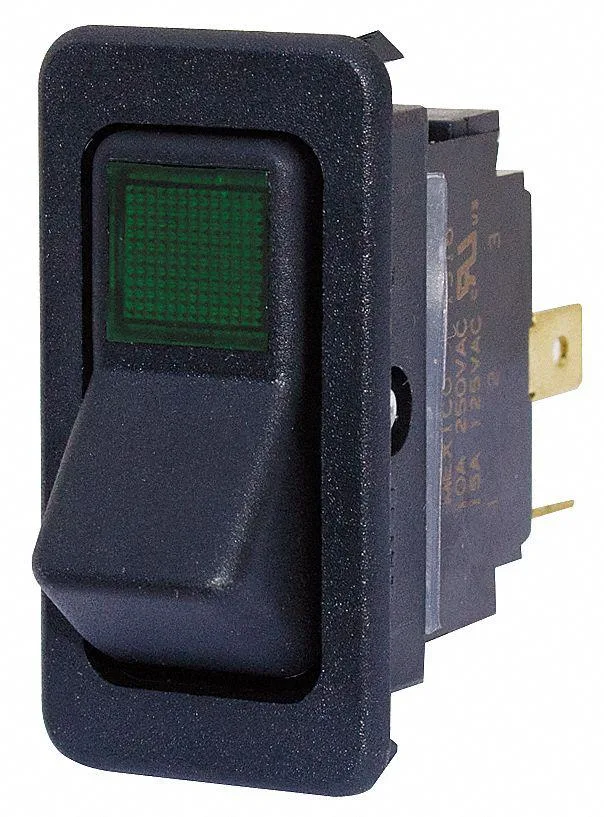

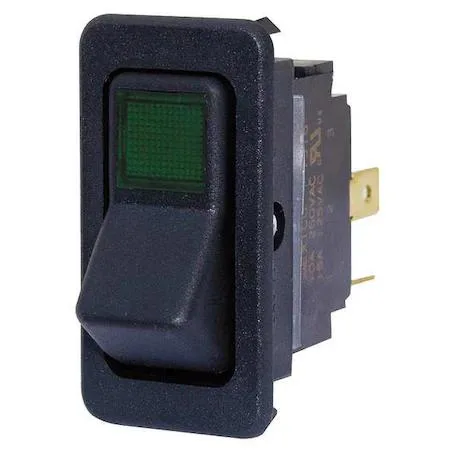

Eaton 8005K25N113V32 lighted rocker switch
The Eaton 8005K25N113V32 is a single-pole single-throw rocker switch with an integrated neon indicator that lights when the circuit is on. It mounts in a 0.867 in by 1.734 in panel cut-out and uses screw terminals for secure wiring. The black actuator provides a clear off/on action for 125 V AC circuits. It is suited to machinery panels, automotive accessory feeds and general-purpose control boxes.
Capacity and headroom
The switch carries 15 A at 125 V AC and 10 A at 250 V AC, with a 15 A DC rating at 28 V and a 3/4 hp motor rating. The IP54 sealing protects the mechanism from dust and splashing water in shop environments. Headroom ends at the listed contact ratings; loads above 15 A or voltages beyond 250 V AC require a different device. The neon indicator operates only on 125 V AC supplies.
Upgrade path and fit
This unit replaces worn or non-illuminated SPST rocker switches that use the same panel cut-out and screw-terminal wiring. The jump is worth it when a visible power status is needed for safety or troubleshooting. It does not suit applications needing double-pole switching, momentary action, or a different mounting footprint. Builders requiring higher current, different voltage indicators or sealed IP67 ratings must select another series.
Highlights
- Illuminated Off/On indicator simplifies status checks at a glance
- SPST three-connection design handles 15 A at 125 V AC for reliable power control
- IP54-rated sealing resists dust and splashes in harsh environments
- Screw terminals and standard 0.867 in × 1.734 in cutout enable fast panel installation
- cRUus, UL E2702 and RoHS listings confirm safety and environmental compliance
Specifications
| Brand | EATON |
|---|
Questions about this item
Will the 0.867 in by 1.734 in mounting hole fit the panel cut-out on my existing machine?
The switch requires a rectangular cut-out of 0.867 in by 1.734 in; measure your panel opening to confirm it matches these dimensions before installation.
How can I verify the neon indicator is functioning correctly once wired?
When the rocker is thrown to the On position the built-in 125 V AC neon lamp should glow, confirming the circuit is live and the indicator is working.
Does the package include mounting hardware or a wiring harness?
The switch body with screw terminals and integrated neon indicator is supplied; mounting screws, connectors and any wiring harness must be sourced separately.
