Eaton 8005K23N313V32 Rocker Switch
A lighted SPST rocker switch with a 14 V DC indicator, 0.250 in quick-connect tabs and IP54 sealing
- SPST switching simplifies wiring
- 10 A at 250 V AC handles mains loads
- IP54 rating resists dust and splashes
- 14 V incandescent indicator shows status
- 250 in quick-connect tabs speed installation
Eaton 8005 Rocker Switch

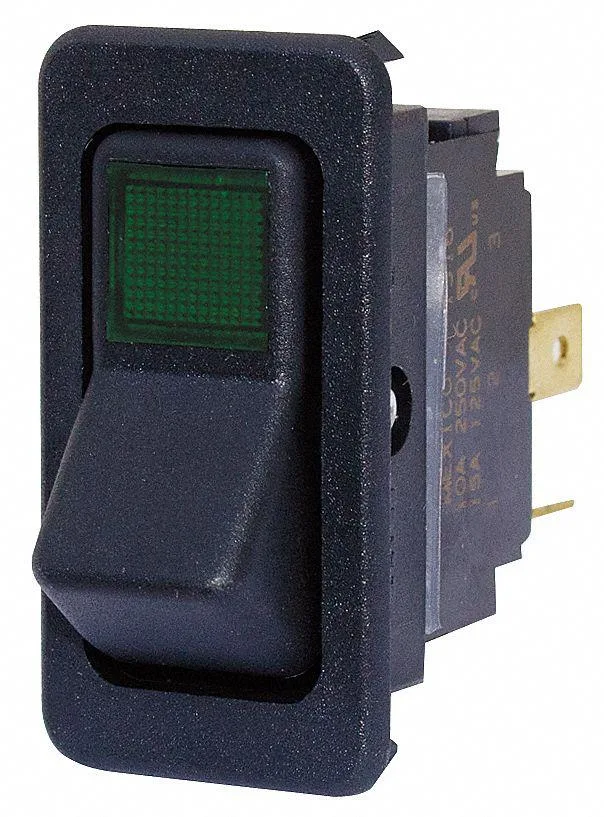

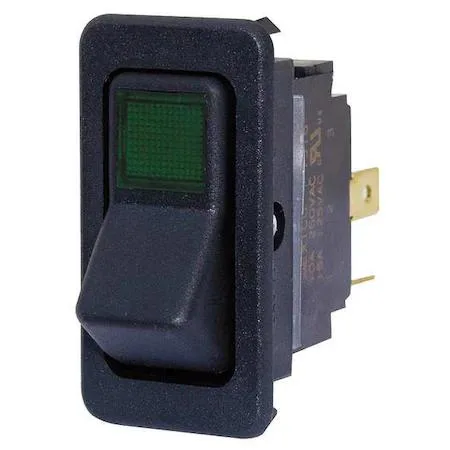

The Eaton 8005K23N313V32 is a lighted rocker switch with an SPST contact form and off/on function. It suits panels needing a simple illuminated control for AC or DC circuits. The 14 V DC incandescent indicator shows status at a glance. Black housing fits standard dash or enclosure cut-outs.
10 A 250 V AC and 15 A 125 V AC ratings
Rated for 10 A at 250 V AC and 15 A at 125 V AC, the switch handles moderate mains loads such as lighting or small motors up to 3/4 hp. On the DC side it carries 15 A at 28 V for automotive or battery-powered equipment. Three 0.250 in quick-connect tabs provide the electrical connections.
IP54 sealed front and cRUus listed
An IP54 rating protects the front from dust and splashing water in normal use. The switch meets cRUus and UL E2702 standards and is RoHS compliant. Mounting requires a 0.867 in by 1.734 in panel cut-out. No active cooling is needed and operation is silent.
Highlights
- SPST switching simplifies wiring
- 10 A at 250 V AC handles mains loads
- IP54 rating resists dust and splashes
- 14 V incandescent indicator shows status
- 250 in quick-connect tabs speed installation
Specifications
| Brand | EATON |
|---|
Questions about this item
Will the 0.250 in quick-connect tabs on this Eaton 8005K23N313V32 rocker switch mate with the crimp terminals I already use?
Yes, the switch uses standard 0.250 in quick-connect tabs that accept common crimp-on terminals.
How can I verify the 14V DC incandescent indicator light is functioning after I wire the switch?
When the switch is toggled to the On position the built-in indicator illuminates, confirming power is present at the load.
Does the Eaton 8005K23N313V32 come with mounting hardware or do I need to buy screws separately?
The switch includes the body with integrated 0.867 in x 1.734 in mounting hole pattern; mounting screws are not supplied.
