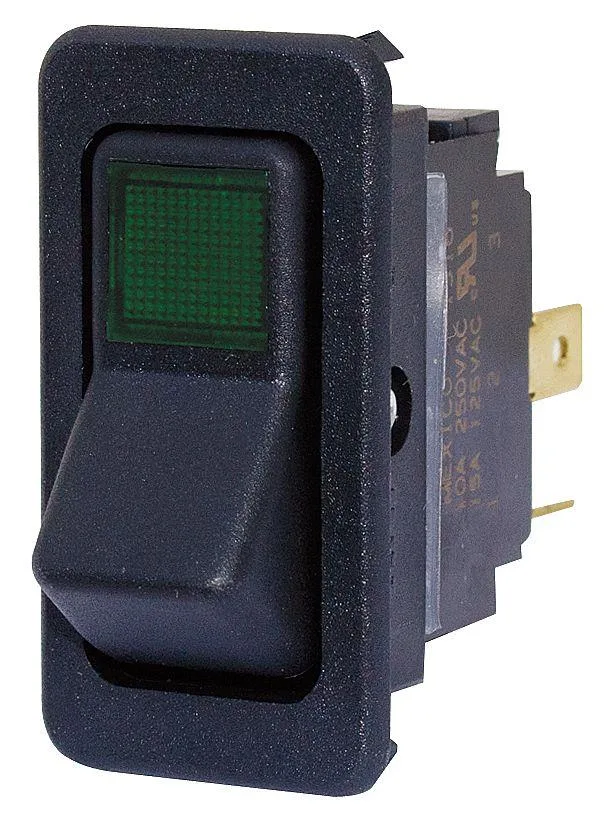

Eaton 8005K23N113V32 lighted rocker switch
A lighted SPST rocker switch rated 10 A at 250 V AC and 15 A at 28 V DC with a 125 V neon indicator and IP54 sealing
- SPST off/on function gives simple load control
- 125 V neon indicator shows status at a glance
- 10 A at 250 V AC rating handles mains circuits
- IP54 seal resists dust and water splashes
- 250 in quick-connect tabs speed up wiring

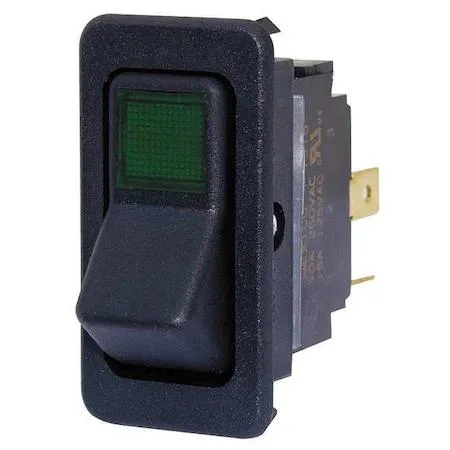

Eaton 8005K23N113V32 lighted rocker switch
This Eaton lighted rocker switch is a single-pole single-throw device rated for 10 A at 250 V AC and 15 A at 125 V AC. It features a neon indicator that illuminates when the circuit is on. The switch mounts in a 0.867 in by 1.734 in panel cutout and carries cRUus, UL E2702 and RoHS approvals.
1/4 in quick-connect terminals
The 0.250 in quick-connect tabs accept standard push-on connectors for fast installation without soldering. Three terminals support the off/on function and the 125 V AC neon indicator circuit. IP54 rating protects the contacts from dust and splashing water in industrial environments.
For panels needing a visible on/off indicator
This switch suits machinery panels, automotive accessory circuits and equipment where a lighted on/off status is required at up to 3/4 hp. Buyers needing momentary action, double-throw switching or a different indicator voltage should look at other switch types.
Highlights
- SPST off/on function gives simple load control
- 125 V neon indicator shows status at a glance
- 10 A at 250 V AC rating handles mains circuits
- IP54 seal resists dust and water splashes
- 250 in quick-connect tabs speed up wiring
Specifications
| Brand | EATON |
|---|
Questions about this item
What does the 15 A @ 28 V DC rating mean when the switch is installed in a vehicle circuit?
It means the contacts can carry up to 15 amps at 28 volts DC without overheating or welding shut.
How does the 0.250 in quick-connect tab limit the wire size I can use?
The tabs accept standard 0.250 inch female quick-disconnect terminals, so you must crimp or buy connectors made for that tab width.
Will the 0.867 in x 1.734 in mounting hole fit a standard panel cut-out?
You need to cut a rectangular opening 0.867 inches high by 1.734 inches wide; the switch body then snaps or screws into that hole.
