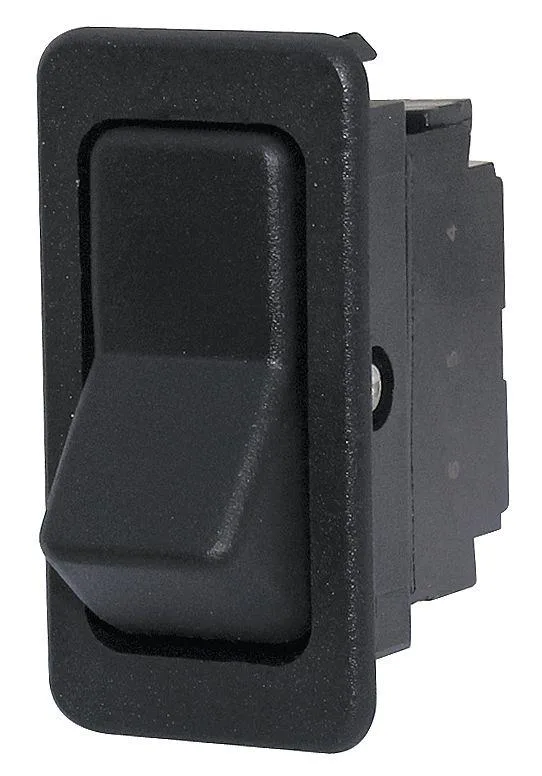

Eaton 8004K43N1V2 Rocker Switch
DPST rocker switch rated 10 A at 250 V AC with 0.250 in quick-connect tabs and IP54 sealing
- DPST contact form controls two circuits independently
- 10 A at 250 V AC rating handles mains loads
- IP54 sealing resists dust and water splashes
- Quick-connect 0.250 in tabs speed up wiring
- cRUus and RoHS marks confirm safety compliance
Double-pole rocker switch
The Eaton 8004K43N1V2 is a non-illuminated rocker switch rated for 10 A at 250 V AC, 15 A at 125 V AC and 15 A at 28 V DC. It carries cRUus, UL E2702 and RoHS approvals and meets IP54 ingress protection. A 3/4 hp motor rating suits small motor-control duties in automotive or industrial panels.
Maintenance staff and panel builders
The On/None/Off action and four quick-connect tabs fit standard control circuits needing simple maintained switching. Installers who require momentary action, illumination or a different pole count should select another model. The rectangular cut-out of 0.867 in by 1.734 in also dictates panel layout.
0.250 in quick-connect terminals
Wiring uses 1/4 inch tab terminals that accept standard push-on connectors. No screw terminals or solder lugs are provided, so the harness must match this termination style.
Highlights
- DPST contact form controls two circuits independently
- 10 A at 250 V AC rating handles mains loads
- IP54 sealing resists dust and water splashes
- Quick-connect 0.250 in tabs speed up wiring
- cRUus and RoHS marks confirm safety compliance
Specifications
| Brand | EATON |
|---|
Questions about this item
Will the switch generate heat or noise when running continuously at the 10 A 250 V AC rating?
The rocker switch is a passive mechanical component with no moving electronics, so it produces no audible noise and negligible heat at its rated 10 A 250 V AC or 15 A 125 V AC load.
What wiring and panel cut-out must I already have to install this 0.250 in quick-connect switch?
You need a panel opening of 0.867 in by 1.734 in and four 0.250 in quick-connect tabs or matching receptacles for the DPST contacts.
Can this IP54-rated switch replace an older toggle that only carried 15 A at 28 V DC?
Yes, the switch is rated 15 A at 28 V DC and meets the same DC load while adding an IP54 seal and cRUus/UL E2702 compliance.
