Eaton 8004K32N1V2 rocker switch
SPDT rocker switch rated 15 A at 125 V AC with 0.250 in quick-connect tabs and IP54 sealing
- SPDT contact form enables versatile circuit control
- Momentary on/off/momentary on function suits precise switching needs
- 10 A at 250 V AC rating handles demanding electrical loads
- IP54 rating protects against dust and water splashes
- 250 in quick-connect tabs simplify wiring installation
Eaton 8004K32N1V2 Rocker Switch

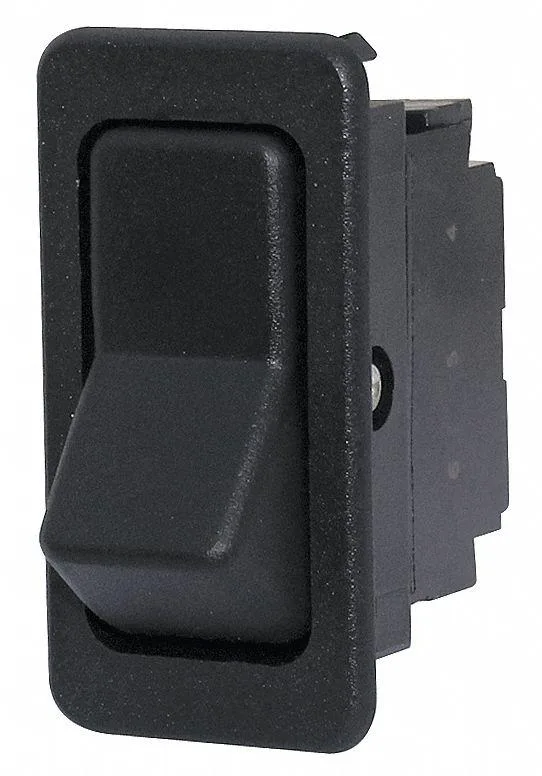

This black Eaton 8004K32N1V2 rocker switch provides an SPDT contact form with three connections. It delivers a momentary on/off/momentary on switching function for momentary control circuits. The non-illuminated actuator suits panels where indicator lighting is not required.
Compatibility check before ordering
Verify the panel cut-out matches the 0.867 in by 1.734 in mounting hole dimensions. Confirm the 0.250 in quick-connect tabs suit your wiring harness. Ensure the 10 A at 250 V AC, 15 A at 125 V AC and 15 A at 28 V DC ratings cover the intended circuit load.
Sustained load behaviour
The switch carries an IP54 rating for dust and splash protection during extended operation. It meets cRUus, RoHS and UL E2702 standards for ongoing compliance. The 3/4 hp rating indicates suitability for continuous motor loads within the stated electrical limits.
Highlights
- SPDT contact form enables versatile circuit control
- Momentary on/off/momentary on function suits precise switching needs
- 10 A at 250 V AC rating handles demanding electrical loads
- IP54 rating protects against dust and water splashes
- 250 in quick-connect tabs simplify wiring installation
Specifications
| Brand | EATON |
|---|
Questions about this item
Does the Eaton 8004K32N1V2 rocker switch come with mounting hardware or connectors?
The switch uses a 0.867 in x 1.734 in mounting hole and 0.250 in quick-connect tabs. Mounting hardware and mating connectors are not included and must be sourced separately.
How do I choose between the AC and DC ratings for this SPDT rocker switch?
Use the 10 A @ 250 V AC or 15 A @ 125 V AC ratings for mains circuits, and the 15 A @ 28 V DC rating for low-voltage DC loads. Select the rating that matches your circuit voltage and current.
What does the IP54 rating mean for the switch once installed in a panel?
IP54 means the front of the switch is protected against limited dust ingress and water splashes from any direction when mounted in a panel with the specified cut-out.
