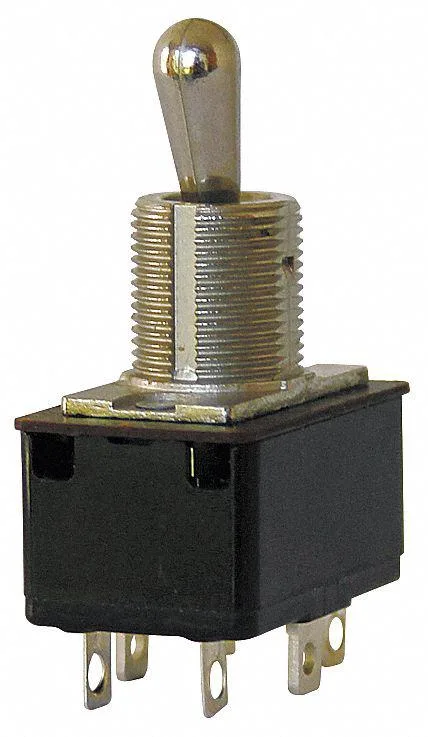

Silver toggle switch with bat actuator and quick-connect terminals

Eaton

Eaton 7561K6 Toggle Switch DPST 4 Connections On/Off 3/4 hp 10A 250V

SKU CH-CF3Z-FW7XZ

DPST toggle switch with four quick-connect terminals rated 10 A at 250 V and 15 A at 125 V

  • DPST contact form gives two-circuit control
  • 10 A at 250 V AC rating handles heavy loads
  • 3/4 hp motor rating suits industrial starters
  • 50 in mounting hole fits standard panels
  • CSA, RoHS, UL Listed certifications ensure compliance

Eaton DPST toggle switch for panel mounting

This Eaton 7561K6 is a double-pole single-throw toggle switch rated for 10 A at 250 V AC and 15 A at 125 V AC. It carries a 3/4 hp motor rating and is UL listed, CSA certified and RoHS compliant for industrial and machinery control panels.

Quick-connect terminals and 0.50 in mounting hole

Four quick-connect terminals speed up wiring without soldering. The switch mounts through a 0.50 in diameter hole, has a 0.47 in stem length with 0.500 in thread and a 0.56 in silver actuator that provides clear On/Off position indication.

Rated for standard AC control circuits only

The contacts are rated for 10 A at 250 V AC and 15 A at 125 V AC resistive loads; they are not rated for DC switching or higher voltage applications. The 3/4 hp rating applies to single-phase motor loads within the stated voltage limits.

Highlights

  • DPST contact form gives two-circuit control
  • 10 A at 250 V AC rating handles heavy loads
  • 3/4 hp motor rating suits industrial starters
  • 50 in mounting hole fits standard panels
  • CSA, RoHS, UL Listed certifications ensure compliance

Specifications

BrandEATON

Questions about this item

What does the DPST contact form mean for circuit control?

It opens or closes two separate circuits simultaneously with a single toggle, giving you On/Off control of both poles from one actuator.

What panel hole size is required for mounting?

Drill a 0.50 inch diameter hole; the 0.500 inch threaded stem passes through and secures with the supplied hardware.

How do you attach wires to the quick-connect terminals?

Crimp a quick-connect receptacle onto each wire, then push it firmly onto the terminal tab until it seats securely.
