Eaton 7504V 7500 Decorative Rocker Switch 4-Way Ivory 15A 120/277V
A four-way decorator switch rated 15 A at 120/277 V with back-wire clamps for #12-#14 AWG, push-in terminals, built-in stripper and multi-drive screws
- Four-way control from multiple locations
- 15 A 120/277 V rating handles standard lighting loads
- Back-wire clamps accept #12 and #14 AWG for fast installation
- Built-in wire stripper for #12 and #14 speeds up prep
- Integrated ultrasonic-welded strap eliminates floating installations
What this switch controls

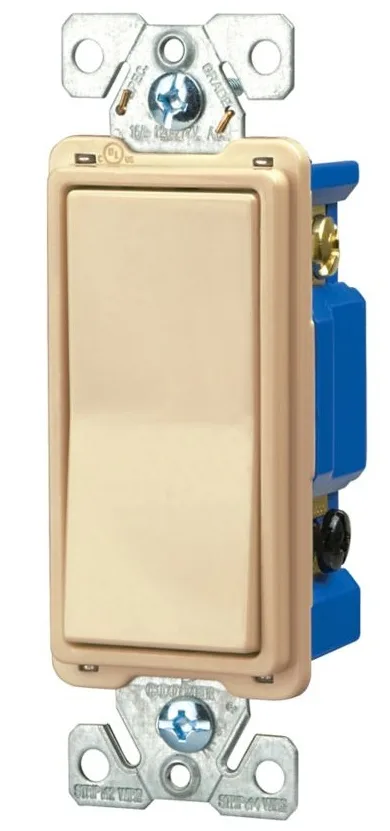

The Eaton 7504V is a 15-ampere, 120/277-volt decorator rocker switch designed for four-way lighting circuits. It fits standard flush-mount boxes and accepts #14 to #12 AWG conductors via back-wire clamps, push-in terminals or side screws. The ivory thermoplastic body suits residential and light-commercial interiors.
Thermals noise and power draw
As a passive mechanical switch it draws no power and generates no heat or audible noise during normal operation. The integrated ultrasonic-welded strap and body resist flexing, so the mechanism stays aligned without loosening over time. A stippled ground screw provides a secure grounding connection. cULus listing to UL 20 confirms compliance with safety standards.
Installation features that save time

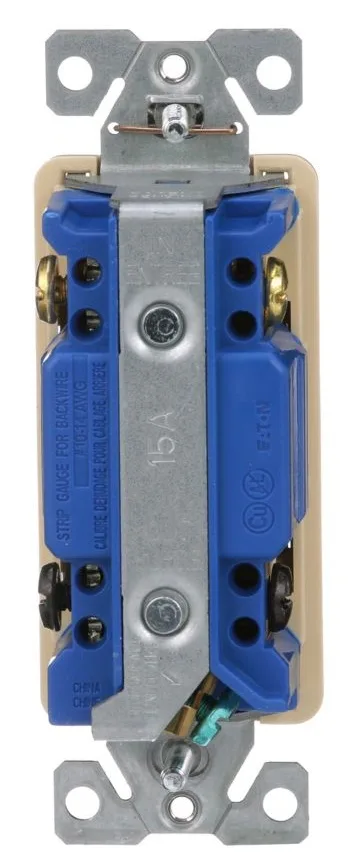

A patented built-in wire stripper handles #14 and #12 conductors, eliminating the need for a separate tool. Terminals accept slotted, Phillips and Robertson drivers, giving installers flexibility on the jobsite. Side, back and push-wire compatibility lets electricians choose the fastest wiring method for each run. The long mounting strap virtually eliminates floating installations.
Highlights
- Four-way control from multiple locations
- 15 A 120/277 V rating handles standard lighting loads
- Back-wire clamps accept #12 and #14 AWG for fast installation
- Built-in wire stripper for #12 and #14 speeds up prep
- Integrated ultrasonic-welded strap eliminates floating installations
Specifications
| Brand | Eaton |
|---|
Questions about this item
How do I install the Eaton 7504V 4-way switch and what wiring mistake should I avoid?
Use the back-wire clamps for #12 or #14 AWG wire, push-in terminals for #14 solid only, and the built-in stripper for both gauges; do not insert stranded wire into the push-in terminals.
What part of the Eaton 7504V will need replacement first under normal use?
The thermoplastic rocker and integrated strap-body assembly are ultrasonically welded for durability; the switch itself is rated for long service and no user-replaceable parts are specified.
What is the sustained-load limit of the Eaton 7504V before it becomes a concern?
The switch is rated 15 A at 120/277 V and cULus listed to UL 20; continuous operation at or below 15 A is within its design limits.
