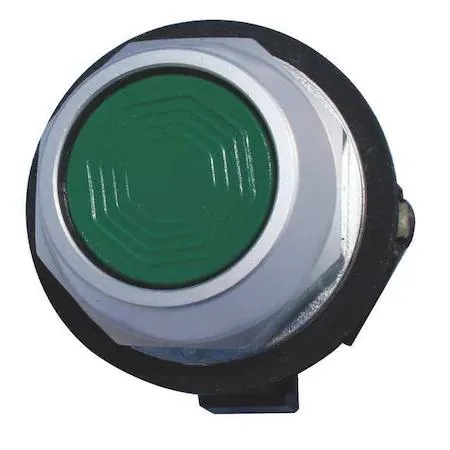

Green flush pushbutton with metal head and anodized aluminium bezel, 30 mm

Eaton

Eaton 30 mm Flush Pushbutton Green 2NO-2NC

SKU CH-W86N-KQQ6V

A 30 mm flush industrial pushbutton with momentary action, green metal head, 2NO-2NC contacts rated 10A at 600V AC, and IP66 sealing for NEMA 1, 2, 3, 3R, 4, 4X, 12, 13 environments

  • TypeIndustrial Electrical Controls & Automation
  • Size30 mm
  • Momentary action enables precise machine control
  • 30 mm metal flush head fits standard panels
  • 2NO/2NC contacts rated 10 A at 600 V AC
  • NEMA 4X and IP66 sealing resists water and dust
  • Screw-clamp terminals simplify wiring installation

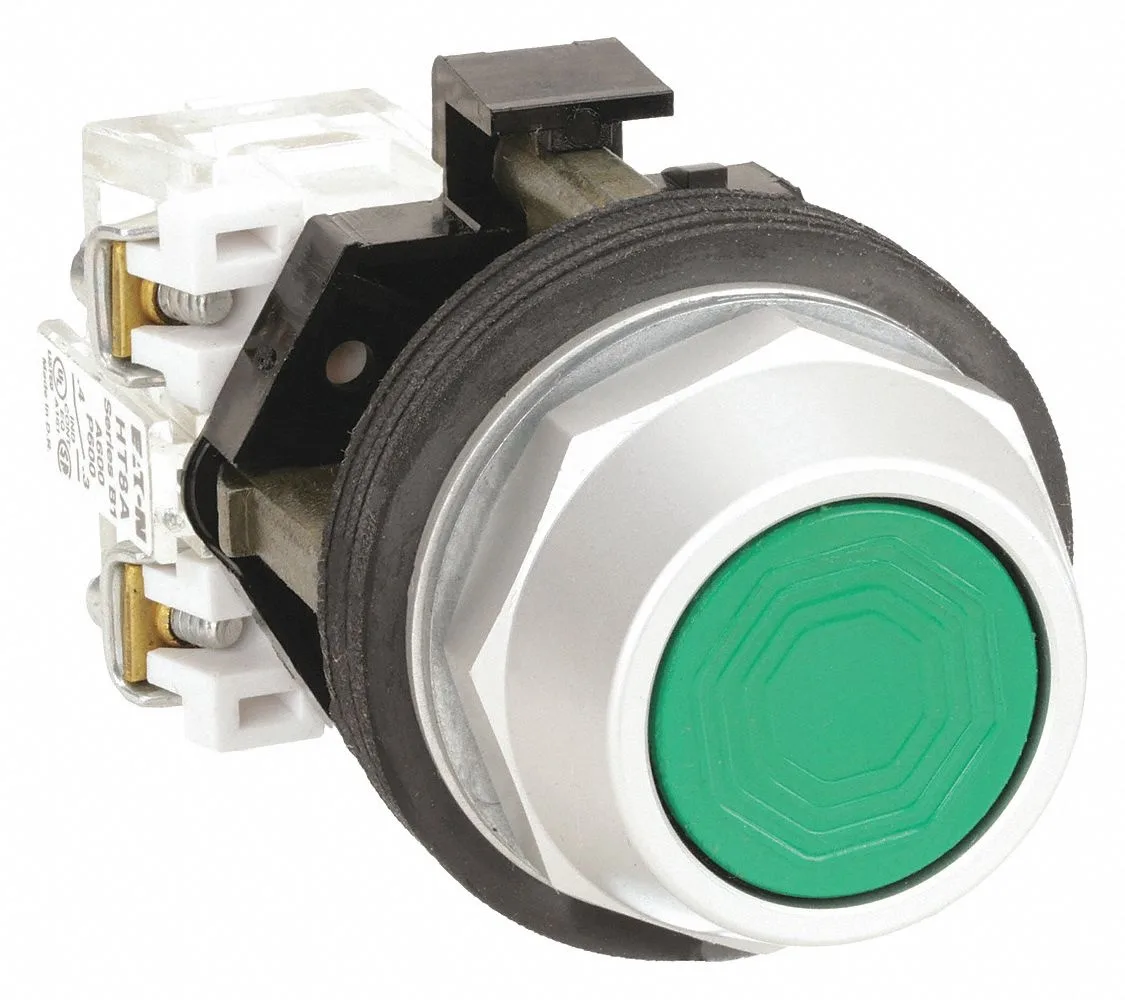

30 mm Flush Pushbutton for Industrial Panels

This Eaton flush pushbutton fits 30 mm panel cut-outs and provides momentary action with a green metal operator head. The unit carries a 10A rating at 600V AC and meets NEMA A600/P600 contact designations. Its anodised aluminium bezel and IP66 rating suit NEMA 1, 2, 3, 3R, 4, 4X, 12 and 13 environments. Screw-clamp terminals simplify field wiring.

Replaces worn or mismatched 30 mm operators

Swap this in when an existing 30 mm flush button shows contact wear, faded legend or compromised sealing. The 2NO/2NC contact form matches many legacy Allen-Bradley panel layouts, so the changeover keeps the same control logic. Upgrading is worth it when the panel requires IP66 ingress protection or UL/CSA compliance that the old device lacks.

Verify cut-out, voltage and terminal access

Confirm the panel cut-out is exactly 30 mm and that the control circuit operates within 600V AC at 10A or less. Ensure the screw-clamp terminals are reachable behind the panel and that the mounting depth clears any internal obstructions. Check that the green colour code matches your safety or identification standard before ordering.

Highlights

  • Momentary action enables precise machine control
  • 30 mm metal flush head fits standard panels
  • 2NO/2NC contacts rated 10 A at 600 V AC
  • NEMA 4X and IP66 sealing resists water and dust
  • Screw-clamp terminals simplify wiring installation

Specifications

BrandEaton
TypeIndustrial Electrical Controls & Automation
Size30 mm

Questions about this item

What panel cut-out diameter does the 30 mm flush pushbutton require?

The operator is sized for a standard 30 mm panel cut-out, matching the 30 mm dimension given in the specifications.

How are the screw-clamp terminals wired, and what step is often missed?

Strip each wire, insert it into the clamp, and tighten the screw securely; the common error is leaving a loose connection under the 10 A rating.

Which components may need replacement after extended use?

The momentary-action flush operator and the internal 2NO/2NC contact block are the wear items; the metal head and anodised aluminium bezel are rated IP66 and NEMA 1, 2, 3, 3R, 4, 4X, 12, 13 for long service life.
